Model# ZISS480DPBSS

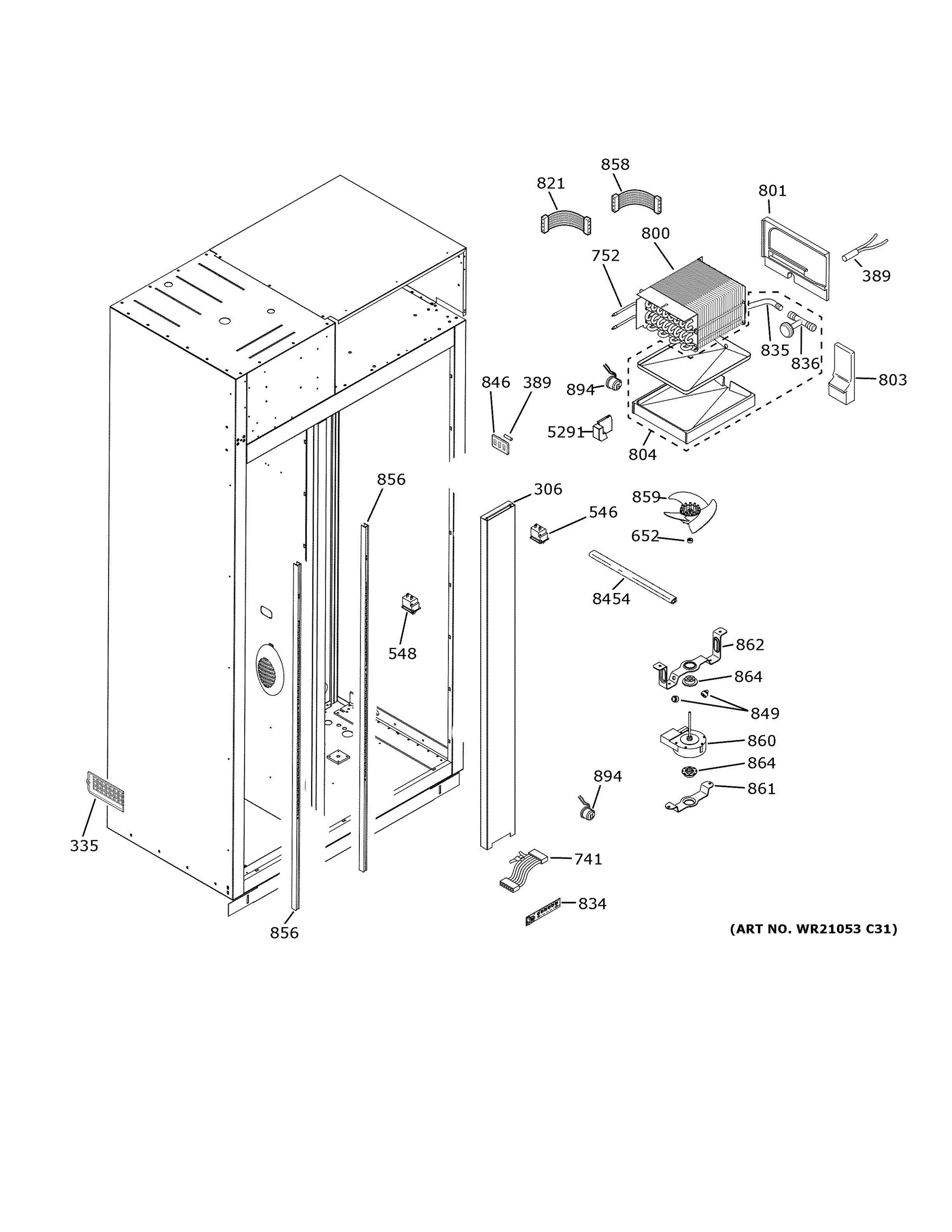

The image and part list below are associated with the component: FREEZER SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
LIGHT GUIDE 48" | WR02X32645 | WR02X44030 | 306 | 11 days | |
|
DUCT GRILL | WR02X21077 | 335 | 11 days | ||
|
SENSOR TEMPERATURE | WR55X10030 | WR55X10025 | 389 | 2 days | |
|
FOAM BAFFLE | WR02X32704 | 5291 | 11 days | ||
|
LIGHT SWITCH | WR23X32649 | 546 | 11 days | ||
|
LIGHT SWITCH | WR23X32618 | 548 | 11 days | ||
|
RING COMPRESSION | WR02X12149 | 652 | 2 days | ||
|
LED JUMPER HARNESS | WR55X32639 | 741 | 11 days | ||
|
DEFROST HEATER | WR09X32669 | 752 | 11 days | ||
|
EVAPORATOR | WR87X32688 | WR87X33627 | 800 | - |
|
|
RETURN BAFFLE | WR02X32725 | 801 | 11 days | ||
|
FOAM BLOCK EVAP | WR02X12857 | 803 | 11 days | ||
|
DRAIN PAN AND HEATER | WR17X32665 | WR17X46926 | 804 | 11 days | |
|
EVAPORATOR HARNESS DC | WR55X32689 | 821 | 11 days | ||
|
TOWER LED | WR55X32730 | 834 | 11 days | ||
|
TUBE DRAIN FLEXIBLE | WR17X11969 | 835 | 2 days | ||
|
REFRIGERATOR DRAIN VACUUM BREAK VALVE | WR01X29135 | WR01X39552 | 836 | 11 days | |
|
EDGE TRIM | WR38X10190 | 8454 | 2 days | ||
|
GRILLE SENSOR | WR02X12839 | 846 | 2 days | ||
|
BUMPER | WR02X10540 | 849 | 2 days | ||
|
TRACK FZ SHELF | WR72X26816 | 856 | 11 days | ||
|
EVAPORATOR HARNESS AC | WR55X32625 | 858 | 11 days | ||
|
BLADE FAN MOTOR | WR60X10050 | WR60X41627 | 859 | 11 days | |
|
MOTOR EVAP DC | WR60X10185 | 860 | 2 days | ||
|
BRACKET EVAP FAN BTM | WR02X11622 | 861 | 2 days | ||
|
BRACKET ORIFICE FAN | WR02X10653 | 862 | 2 days | ||
|
GROMMET EVAP FAN | WR02X10519 | WR02X12008 | 864 | 2 days | |
|
THERMOSTAT CUTOFF | WR50X29776 | 894 | 11 days |
