Model# ZISS42NCBSS

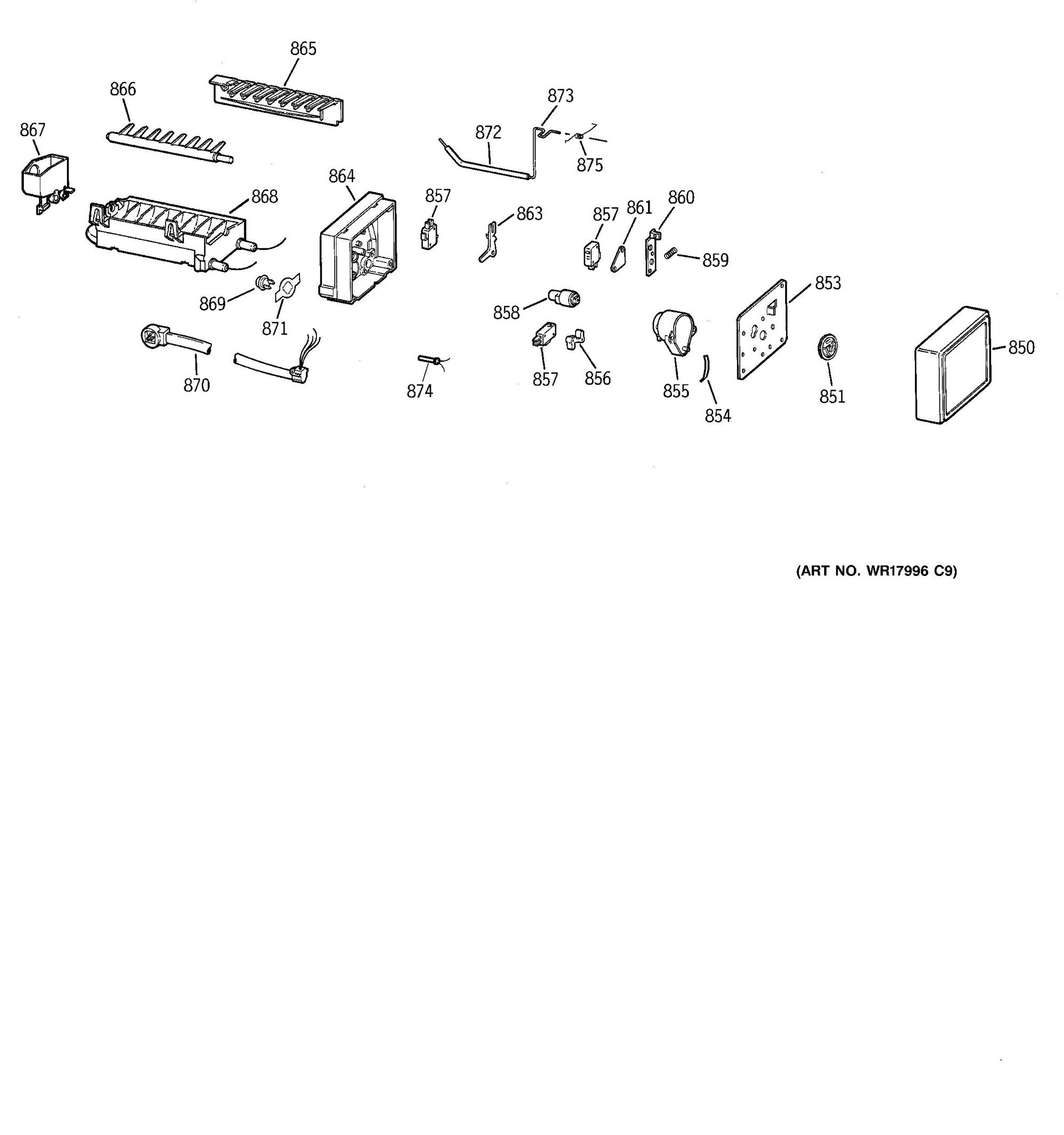

The image and part list below are associated with the component: ICEMAKER WR30X0327:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COVER WH | WR29X0182 | WR29X182 | 850 | 5 days | |
|
GEAR | WR29X5110 | WR30X10093 | 851 | 5 days | |
|
PLATE MOUNTING | WR29X5111 | 853 | 11 days | ||
|
|
SPRING BEAM | WR29X10002 | WR30X10093 | 854 | 5 days | |
|
|
MOTOR | WR29X10001 | WR30X10093 | 855 | 5 days | |
|
SPACER HOLDING SWITCH | WR29X5118 | 856 | 11 days | ||
|
SWITCH IM | WR29X5171 | 857 | 5 days | ||
|
|
CAM | WR29X5119 | WR30X10093 | 858 | 5 days | |
|
|
SPRING | WR29X5115 | WR30X10093 | 859 | 5 days | |
|
|
PLATE VALVE SWITCH | WR29X5114 | WR30X10093 | 860 | 5 days | |
|
INSULATOR | WR29X5117 | 861 | 11 days | ||
|
|
ARM LEVER | WR29X5121 | WR30X10093 | 863 | 5 days | |
|
|
HOUSING | WR29X0183 | WR30X10093 | 864 | 5 days | |
|
STRIPPER | WR29X0160 | 865 | 11 days | ||
|
|
EJECTOR | WR29X5126 | WR30X10093 | 866 | 5 days | |
|
BRNG INLET(FILL CUP) | WR29X0153 | WR29X10063 | 867 | 5 days | |
|
MOLD/HEATER ASM | WR29X0204 | WR29X204 | 868 | 5 days | |
|
|
THERMOSTAT | WR29X0157 | WR30X10093 | 869 | 5 days | |
|
WIRE HARNESS | WR29X0186 | WR29X186 | 870 | 5 days | |
|
|
CLAMP THERMOSTAT | WR29X0158 | WR30X10093 | 871 | 5 days | |
|
SLEEVE VINYL | WR29X5128 | WR30X30972 | 872 | 11 days | |
|
|
ARM SHUT OFF | WR29X5129 | WR30X10093 | 873 | 5 days | |
|
|
THERMAL CUT-OFF | WR29X0185 | WR30X10093 | 874 | 5 days | |
|
|
SPRING SHUT OFF ARM | WR29X5130 | WR30X10093 | 875 | 5 days |
