Model# ZISB42DSE

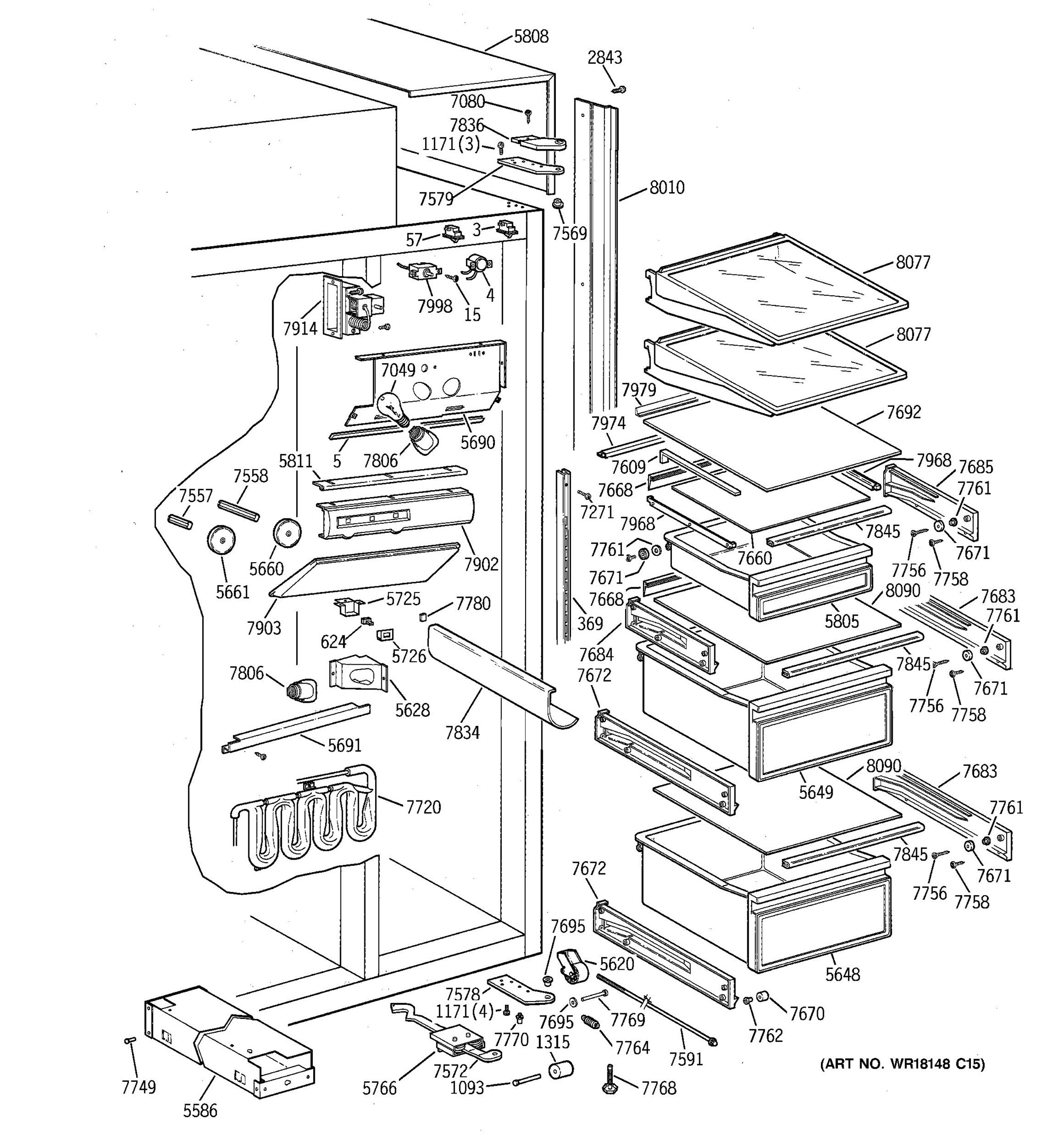

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
AXLE FRONT | WR02X8801 | WR2X8801 | 1093 | 11 days | |
|
WHEEL MOBILITY | WR02X3594 | WR2X3594 | 1315 | 1 days | |
|
SCREW-CONTROL | WR01X5644 | WR1X5644 | 15 | 11 days | |
|
DEFROST HEATER | WR51X0322 | WR51X322 | 15 | - |
|
|
SCREW CASE TRIM | WR01X1903 | WR1X2130 | 2843 | 1 days | |
|
SWITCH LIGHT 200 WATT | WR23X0411 | WR23X37285 | 3 | 11 days | |
|
TRACK SHELF FF | WR17X6325 | 369 | 11 days | ||
|
THEMODISC | WR50X0108 | 4 | 11 days | ||
|
EDGE TRIM FF REAR DUCT | WR38X2093 | 5 | 11 days | ||
|
BASE ASM (LH) | WR13X0670 | WR13X670 | 5586 | 1 days | |
|
BASE ASM (RH) | WR13X0671 | WR13X671 | 5586 | 1 days | |
|
MOBILITY FRONT ASM | WR02X8377 | WR2X8377 | 5620 | 1 days | |
|
REFLECTOR VP LIGHT | WR17X3027 | 5628 | 11 days | ||
|
VEG PAN ASM | WR32X1430 | 5648 | 11 days | ||
|
VEG PAN ASM SEALED | WR32X1431 | 5649 | 11 days | ||
|
KNOB CONTROL FZ | WR02X8600 | WR2X8600 | 5660 | 11 days | |
|
KNOB CONTROL FF | WR02X8601 | WR2X8601 | 5661 | 11 days | |
|
LIGHT REFLECTOR | WR02X8960 | WR2X9411 | 5690 | 11 days | |
|
FF WIRE CHANNEL | WR02X8961 | WR2X8961 | 5691 | 11 days | |
|
SWH-CRDL-WTR SIDE | WR23X0192 | WR23X26573 | 57 | 11 days | |
|
POWER SAVER SW HSG | WR02X8918 | WR2X8918 | 5725 | 11 days | |
|
POWER SAVER SW COV | WR02X8919 | WR2X8919 | 5726 | 11 days | |
|
CLOSURE FF DOOR | WR02X8607 | WR2X8607 | 5766 | 1 days | |
|
SNACK PAN ASM | WR32X1432 | 5805 | 11 days | ||
|
HOOD ASM | WR17X3498 | 5808 | 11 days | ||
|
FF CONTROL PANEL GASKET | WR14X0449 | WR14X449 | 5811 | 11 days | |
|
SW. POWER SAVER | WR23X0396 | WR23X309 | 624 | 1 days | |
|
LAMP | PUR LOC | 7049 | 11 days | ||
|
SCREW HINGE COVER | WR01X1933 | WR1X1933 | 7080 | 1 days | |
|
SCREW | WR01X5635 | 7271 | 11 days | ||
|
SHAFT CONT KNOB FF | WR02X8602 | WR2X8602 | 7557 | 11 days | |
|
SHAFT CONT KNOB FZ | WR02X8603 | WR2X8603 | 7558 | 11 days | |
|
BUSHING TOP HINGE | WR02X8587 | WR2X8587 | 7569 | 1 days | |
|
ACTUATOR ARM FF | WR02X8925 | WR2X8925 | 7572 | 1 days | |
|
HINGE FF BTM | WR13X0643 | WR13X643 | 7578 | 1 days | |
|
HINGE FF TOP | WR13X0642 | WR13X642 | 7579 | 1 days | |
|
BASE SHAFT | WR01X1851 | WR01X10256 | 7591 | 1 days | |
|
SPACER SNACK PAN COVER | WR02X8598 | WR2X8598 | 7609 | 11 days | |
|
PAN DIVIDER WHITE | WR71X2447 | WR17X2694 | 7660 | 11 days | |
|
VEG PAN SEAL REAR | WR02X8963 | WR2X8963 | 7668 | 1 days | |
|
ROLLER PAN | WR02X8595 | WR2X8595 | 7670 | 11 days | |
|
ROLLER PAN | WR02X8596 | WR2X8596 | 7671 | 1 days | |
|
SLIDE LH | WR72X0226 | WR72X226 | 7672 | 11 days | |
|
SLIDE RH | WR72X0227 | WR72X227 | 7683 | 11 days | |
|
SLIDE SNACK PAN LH | WR72X0228 | WR72X228 | 7684 | 11 days | |
|
SLIDE SNACK PAN RH | WR72X0229 | WR72X229 | 7685 | 11 days | |
|
PAN GLASS | WR71X2448 | 7692 | 11 days | ||
|
SCREW TF | WR01X1836 | WR1X1836 | 7695 | 1 days | |
|
WATER TANK | WR17X3226 | 7720 | 1 days | ||
|
BOLT ADJ HINGE | WR01X1838 | WR1X1838 | 7749 | 11 days | |
|
SCREW | WR01X1830 | WR1X1830 | 7756 | 11 days | |
|
SCREW | WR01X1840 | WR1X1840 | 7758 | 1 days | |
|
WASHER ROLLER | WR01X1829 | WR1X1829 | 7761 | 1 days | |
|
|
WASHER ROLLER | WR01X1828 | WR1X1829 | 7762 | 1 days | |
|
SPRING CLOSURE | WR02X8916 | WR2X8916 | 7764 | 1 days | |
|
LEVELING LEG | WR02X7560 | WR02X10479 | 7768 | 11 days | |
|
AXLE REAR | WR02X8800 | 7769 | 11 days | ||
|
STOP DOOR | WR13X0637 | WR02X11209 | 7770 | 1 days | |
|
BUMPER WINE RACK | WR02X8599 | WR2X8599 | 7780 | 11 days | |
|
LIGHT SOCKET | WR02X8928 | WR23X5146 | 7806 | 11 days | |
|
RACK WINE | WR17X3023 | WR17X3364 | 7834 | 1 days | |
|
COVER FF HINGE | WR13X0639 | WR13X639 | 7836 | 1 days | |
|
VEG PAN SEAL FRONT | WR02X8965 | WR2X8965 | 7845 | 1 days | |
|
CONTROL PANEL | WR02X8966 | WR2X8966 | 7902 | 11 days | |
|
LIGHT SHIELD | WR02X8967 | WR2X8967 | 7903 | 11 days | |
|
DAMPER FF | WR09X0513 | WR9X513 | 7914 | 1 days | |
|
DAMPER BRACKET | WR02X8957 | WR2X8957 | 7914 | 11 days | |
|
PAN COVER RETAINER | WR02X8969 | WR17X3438 | 7968 | 1 days | |
|
BAR SUPPORT | WR02X8970 | WR2X8970 | 7974 | - |
|
|
SHELF STOP EXTRUSION | WR02X8971 | WR2X8971 | 7979 | 11 days | |
|
FZ CONTROL | WR09X0523 | WR9X523 | 7998 | 1 days | |
|
TRIM CASE FF SIDE | WR17X3442 | 8010 | 11 days | ||
|
ENCAP. GLASS SHELF ASM | WR71X2450 | 8077 | 11 days | ||
|
VEG PAN DIVIDER | WR32X1429 | 8090 | 11 days |
