Model# ZIS42NXA

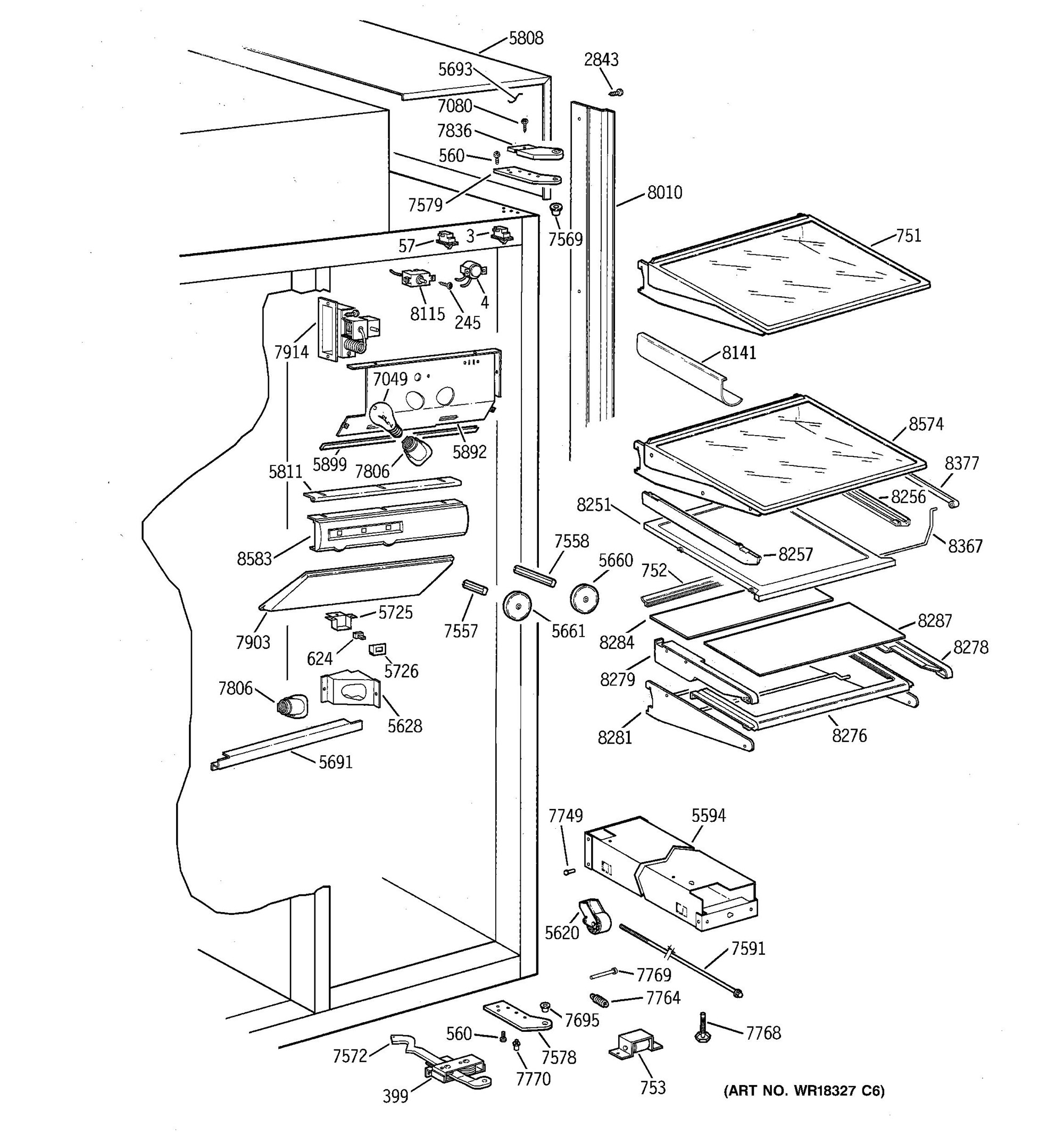

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BUCKET EGG | WR32X1435 | 216 | 2 days | ||
|
SCREW-CONTROL | WR01X5644 | WR1X5644 | 245 | 11 days | |
|
SCREW CASE TRIM | WR01X1903 | WR1X2130 | 2843 | 2 days | |
|
SWITCH LIGHT 200 WATT | WR23X0411 | WR23X37285 | 3 | 11 days | |
|
CLOSURE FF DOOR | WR02X9467 | WR2X8607 | 399 | 2 days | |
|
THEMODISC | WR50X0108 | 4 | 11 days | ||
|
BASE ASM (RH) | WR13X0671 | WR13X671 | 5594 | 2 days | |
|
SCREW | WR01X1902 | WR1X1754D | 560 | 2 days | |
|
MOBILITY FRONT ASM | WR02X8377 | WR2X8377 | 5620 | 2 days | |
|
REFLECTOR VP LIGHT | WR17X3027 | 5628 | 11 days | ||
|
KNOB CONTROL FZ | WR02X8600 | WR2X8600 | 5660 | 11 days | |
|
KNOB CONTROL FF | WR02X8601 | WR2X8601 | 5661 | 11 days | |
|
FF WIRE CHANNEL | WR02X8961 | WR2X8961 | 5691 | 11 days | |
|
R-HAND BAFFLE W/FG | WR17X3617 | 5693 | 11 days | ||
|
SWH-CRDL-WTR SIDE | WR23X0192 | WR23X26573 | 57 | 11 days | |
|
POWER SAVER SW HSG | WR02X8918 | WR2X8918 | 5725 | 11 days | |
|
POWER SAVER SW COV | WR02X8919 | WR2X8919 | 5726 | 11 days | |
|
HOOD ASM | WR17X3498 | 5808 | 11 days | ||
|
FF CONTROL PANEL GASKET | WR14X0449 | WR14X449 | 5811 | 11 days | |
|
FF REAR DUCT 3/8" FLANGE | WR02X9411 | WR2X9411 | 5892 | 11 days | |
|
EDGE TRIM FF REAR DUCT | WR38X2239 | WR38X2093 | 5899 | 11 days | |
|
SW. POWER SAVER | WR23X0396 | WR23X309 | 624 | 2 days | |
|
LAMP | PUR LOC | 7049 | 11 days | ||
|
SCREW HINGE COVER | WR01X1933 | WR1X1933 | 7080 | 2 days | |
|
SCREW | WR01X5635 | 7271 | 11 days | ||
|
ENCAP. GLASS SHELVES | WR32X1538 | WR32X10299 | 751 | 11 days | |
|
REFLECTOR QUICK SPACE | WR32X1573 | 752 | 11 days | ||
|
FRONT WHEEL ASM | WR02X9470 | WR2X9470 | 753 | 2 days | |
|
SHAFT CONT KNOB FF | WR02X8602 | WR2X8602 | 7557 | 11 days | |
|
SHAFT CONT KNOB FZ | WR02X8603 | WR2X8603 | 7558 | 11 days | |
|
BUSHING TOP HINGE | WR02X8587 | WR2X8587 | 7569 | 2 days | |
|
ACTUATOR ARM FF | WR02X8925 | WR2X8925 | 7572 | 2 days | |
|
HINGE FF BTM | WR13X0643 | WR13X643 | 7578 | 2 days | |
|
HINGE FF TOP | WR13X0642 | WR13X642 | 7579 | 2 days | |
|
BASE SHAFT | WR01X1851 | WR01X10256 | 7591 | 2 days | |
|
VEG PAN SEAL REAR | WR02X8963 | WR2X8963 | 7668 | 2 days | |
|
BUSHING BTM HINGE | WR02X8588 | WR2X8588 | 7695 | 2 days | |
|
BOLT ADJ HINGE | WR01X1838 | WR1X1838 | 7749 | 11 days | |
|
SCREW | WR01X1840 | WR1X1840 | 7758 | 2 days | |
|
SPRING CLOSURE | WR02X8916 | WR2X8916 | 7764 | 2 days | |
|
LEVELING LEG | WR02X7560 | WR02X10479 | 7768 | 11 days | |
|
AXLE REAR | WR02X8800 | 7769 | 11 days | ||
|
STOP DOOR | WR13X0637 | WR02X11209 | 7770 | 2 days | |
|
LIGHT SOCKET | WR02X8928 | WR23X5146 | 7806 | 11 days | |
|
COVER FF HINGE | WR13X0639 | WR13X639 | 7836 | 2 days | |
|
VEG PAN SEAL FRONT | WR02X8965 | WR2X8965 | 7845 | 2 days | |
|
LIGHT SHIELD | WR02X8967 | WR2X8967 | 7903 | 11 days | |
|
DAMPER FF | WR09X0513 | WR9X513 | 7914 | 2 days | |
|
BAR SUPPORT | WR02X8970 | WR2X8970 | 7974 | - |
|
|
TRIM CASE FF SIDE | WR17X3442 | 8010 | 11 days | ||
|
CONTROL FREEZER | WR09X0588 | WR9X588 | 8115 | 2 days | |
|
WINE RACK | WR17X4141 | WR17X3364 | 8141 | 2 days | |
|
QUICK SHELF | WR32X1540 | 8251 | 11 days | ||
|
QUICK SHELF SLIDE (RT) | WR72X0259 | WR72X259 | 8256 | 2 days | |
|
QUICK SHELF SLIDE (LT) | WR72X0258 | WR72X258 | 8257 | 11 days | |
|
SNACK PAN COVER | WR32X1543 | 8270 | 11 days | ||
|
QUICK SPACE FRAME | WR71X2657 | 8276 | 2 days | ||
|
QUICK SPACE SLIDE (RH) | WR72X0260 | WR72X260 | 8278 | 11 days | |
|
QUICK SPACE SLIDE (LH) | WR72X0261 | WR72X261 | 8279 | 11 days | |
|
QUICK SPACE SHELF CANT | WR71X2656 | 8281 | 11 days | ||
|
QUICK SPACE GLASS FRAME | WR32X1542 | 8284 | 11 days | ||
|
QUICK SPACE GLASS SLIDE | WR32X1541 | 8287 | 11 days | ||
|
SLIDE ASM RACK 10" | WR72X0269 | WR72X10191 | 8292 | 2 days | |
|
QUICK SPACE GLASS FRAME | WR32X1556 | 8293 | 11 days | ||
|
PICT WINDOW LT | WR17X4142 | 8300 | 11 days | ||
|
PICT WINDOW RT | WR17X4143 | 8301 | 11 days | ||
|
VEG PAN COVER SPPT LT | WR02X9408 | WR2X9408 | 8302 | 11 days | |
|
VEG PAN COVER SPPT RT | WR02X9407 | WR2X9407 | 8303 | 11 days | |
|
SNACK PAN COVER SPPT LT | WR02X9406 | WR2X9406 | 8304 | 11 days | |
|
SNACK PAN COVER SPPT RT | WR02X9405 | WR2X9405 | 8305 | 11 days | |
|
VEG PAN REAR 42" | WR32X1565 | 8308 | 2 days | ||
|
SNACK PAN REAR 42" | WR32X1564 | 8310 | 2 days | ||
|
TRACK SHELF FF | WR17X4140 | WR17X20773 | 8350 | 11 days | |
|
QUICK SHELF WIRE FRAME | WR02X9403 | WR2X9403 | 8367 | 11 days | |
|
QUICK SHELF LINK | WR02X9413 | WR2X9413 | 8377 | 11 days | |
|
QUICK SHELF GLASS ENCAP | WR32X1539 | 8574 | 11 days | ||
|
CONTROL PANEL FF 42" | WR02X9412 | WR2X9412 | 8583 | 2 days | |
|
VEG PAN GLASS 42" | WR32X1544 | 8646 | 2 days | ||
|
PAN COVER RETAINER | WR02X9404 | WR17X3438 | 8658 | 2 days | |
|
SNACK PAN SUPPORT ASM | WR72X0263 | WR72X263 | 900 | 11 days | |
|
SNACK PAN FRONT ASM | WR71X2663 | 905 | 2 days | ||
|
VEG PAN FRONT ASM | WR71X2666 | 910 | 2 days | ||
|
VEG PAN SUPPORT ASM | WR72X0266 | WR72X266 | 915 | 2 days |
