Model# YWEE745H0FS1

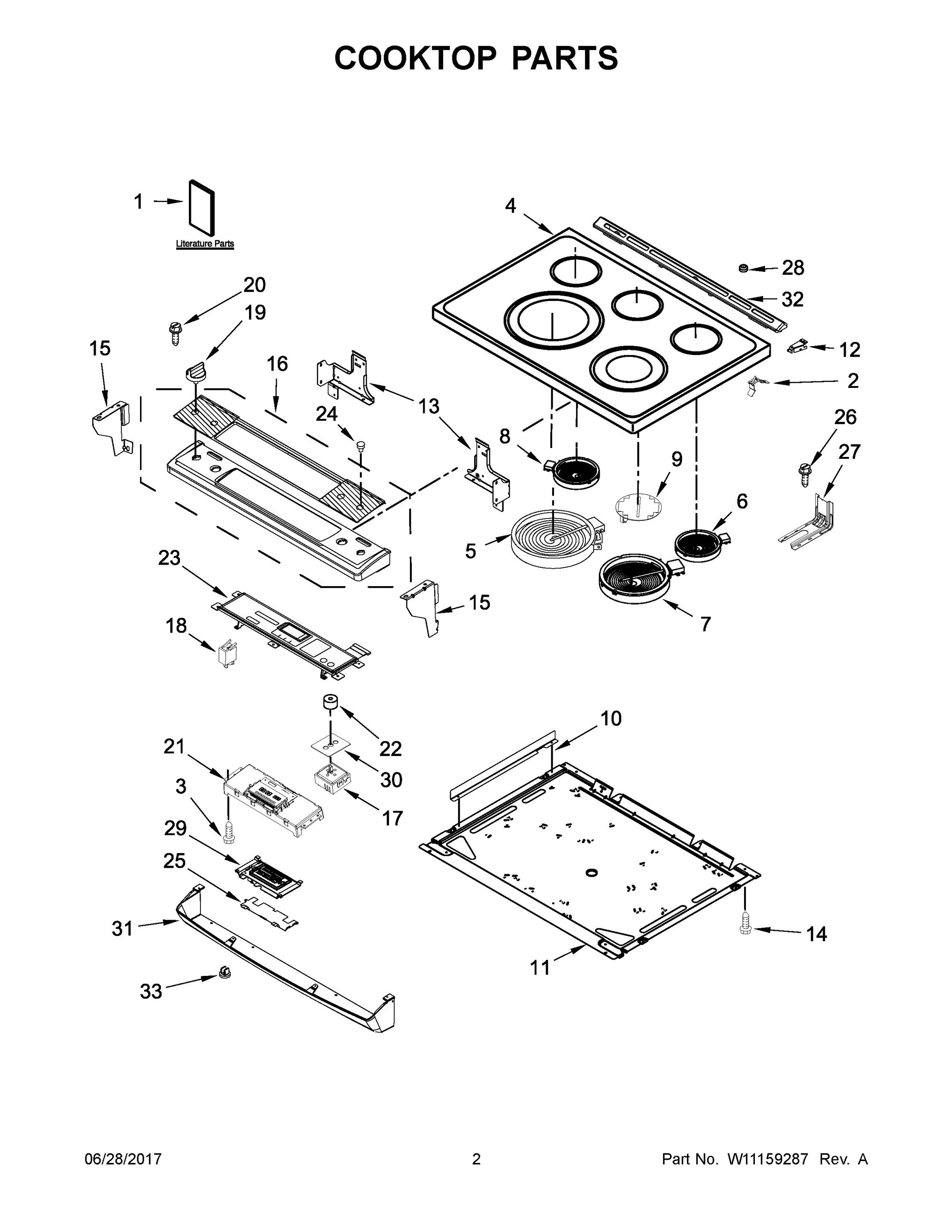

The image and part list below are associated with the component: 02 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
INSTRUCTIONS, INSTALLATION", | W10665255 | 1 | 11 days | ||
|
BRACKET, RADIANT", | W10613286 | 10 | 4 days | ||
|
PAN, RADIANT", | W10536275 | 11 | 4 days | ||
|
BRACE, CORNER (LEFT)", | W10162253 | 12 | 11 days | ||
|
BRACE, CORNER (RIGHT)", | W10162252 | 12A | 11 days | ||
|
SUPPORT, COOKTOP (RIGHT)", | W10289169 | 13 | 4 days | ||
|
SUPPORT, COOKTOP (LEFT)", | W10289170 | 13A | - |
|
|
|
BRACKET, CONSOLE (CENTER)", | W10598048 | 13B | 4 days | ||
|
Screw", | 3196173 | 14 | 4 days | ||
|
BRACKET, CONSOLE (LEFT)", | W10547960 | 15 | 4 days | ||
|
BRACKET, CONSOLE (RIGHT)", | W10547961 | 15A | 4 days | ||
|
CONSOLE (BLACK)", | W10829266 | W10884502 | 16 | 4 days | |
|
CONSOLE (WHITE)", | W10829268 | W10884501 | 16A | 4 days | |
|
CONSOLE (STAINLESS)", | W10829263 | W10884503 | 16B | - |
|
|
SWITCH, INFINITE (LEFT FRONT)", | W10437097 | W11129442 | 17 | 4 days | |
|
SWITCH, INFINITE (RIGHT FRONT)", | W10437092 | W10857622 | 17A | 4 days | |
|
SWITCH, INFINITE (RIGHT REAR)", | W10578768 | W10911303 | 17B | 4 days | |
|
SWITCH, INFINITE (LEFT REAR)", | W10437094 | W10917724 | 17C | 4 days | |
|
LIGHT, INDICATOR (125V)", | 8523265 | WP8523265 | 18 | 4 days | |
|
KNOB (STAINLESS)", | W10850027 | W11517331 | 19 | 11 days | |
|
GUIDE, USE AND CARE", | W10841339 | 1A | 11 days | ||
|
SHEET, TECH", | W10844271 | 1B | 11 days | ||
|
TIPS, SAFE COOKING (ENGLISH)", | 9762761 | 1C | - |
|
|
|
TIPS, SAFE COOKING (FRENCH)", | W10065852 | 1D | 11 days | ||
|
GUIDE, QUICK START (ENGLISH)", | W10400064 | 1E | 11 days | ||
|
GUIDE, QUICK START (FRENCH)", | W10400065 | 1F | 11 days | ||
|
DIAGRAM, WIRING", | W10844274 | 1G | 11 days | ||
|
SPRING, ELEMENT", | W10225448 | WPW10225448 | 2 | 4 days | |
|
Screw", | 3400882 | WP3400882 | 20 | 4 days | |
|
CONTROL, ELECTRONIC (MRC2)", | W10759281 | W10884488 | 21 | 4 days | |
|
GASKET, SWITCH STEM", | W10702912 | 22 | 4 days | ||
|
OVERLAY, ACTIVE (GRAY)", | W10145860 | W10728531 | 23 | 4 days | |
|
OVERLAY, ACTIVE (WHITE)", | W10145861 | W10728530 | 23A | 4 days | |
|
OVERLAY, ACTIVE (BLACK)", | W10665501 | W10728532 | 23B | 4 days | |
|
Lens, Indicator", | 3196068 | WP3196068 | 24 | 4 days | |
|
BRACKET, CONTROL", | W10558372 | 25 | - |
|
|
|
SCREW, ANTI-TIP KIT", | 7101P48560 | 26 | 11 days | ||
|
BRACKET, ANTI-TIP", | W10606241 | W11502257 | 27 | 11 days | |
|
BUMPER", | W10664705 | W11104127 | 28 | 11 days | |
|
ASSEMBLY, DISPLAY", | W10759327 | W11122852 | 29 | 4 days | |
|
Screw", | 3196178 | W11233072 | 3 | 11 days | |
|
GASKET, INFINITE SWITCH", | 7201P07760 | 30 | 11 days | ||
|
CONSOLE, LOWER PANEL (BLACK)", | W10570527 | W11218703 | 31 | 11 days | |
|
CONSOLE, LOWER PANEL (WHITE)", | W10570528 | 31A | 4 days | ||
|
VENT, TRIM TOP (BLACK)", | W10636528 | W11240519 | 32 | 11 days | |
|
VENT, TRIM TOP (WHITE)", | W10636527 | 32A | 4 days | ||
|
GROMMET", | W10645947 | W11025100 | 33 | 4 days | |
|
COOKTOP (BLACK)", | W10829288 | W10884395 | 4 | 4 days | |
|
COOKTOP (WHITE)", | W10829289 | W10884392 | 4A | 4 days | |
|
ELEMENT (3000W) (LEFT FRONT)", | W10187839 | W10823720 | 5 | 4 days | |
|
ELEMENT (1200W) (RIGHT REAR)", | 8273994 | W11171119 | 6 | 11 days | |
|
ELEMENT (3000/1400W) (RIGHT FRONT)", | W10275048 | W11517959 | 7 | 11 days | |
|
ELEMENT (1300W) (LEFT REAR)", | W10342780 | WPW10342780 | 8 | 4 days | |
|
ELEMENT, WARM ZONE (CENTER REAR)", | W10799048 | W11041453 | 9 | 11 days | |
|
FOLLOWING PARTS NOT ILLUSTRATED", | NP | NI | 11 days | ||
|
HARNESS, MAIN", | W10580297 | NI | 11 days | ||
|
HARNESS, CONSOLE", | W10580303 | NI | 4 days | ||
|
CLIP, HARNESS", | W10664316 | NI | 11 days | ||
|
HARNESS, KEYPAD", | W10575120 | W11025616 | NI | 4 days | |
|
HARNESS, COOKTOP", | W10580249 | W11226786 | NI | 11 days | |
|
HARNESS, DISPLAY", | W10598170 | W11226772 | NI | 11 days |
