Model# XTE18GTHMRWW

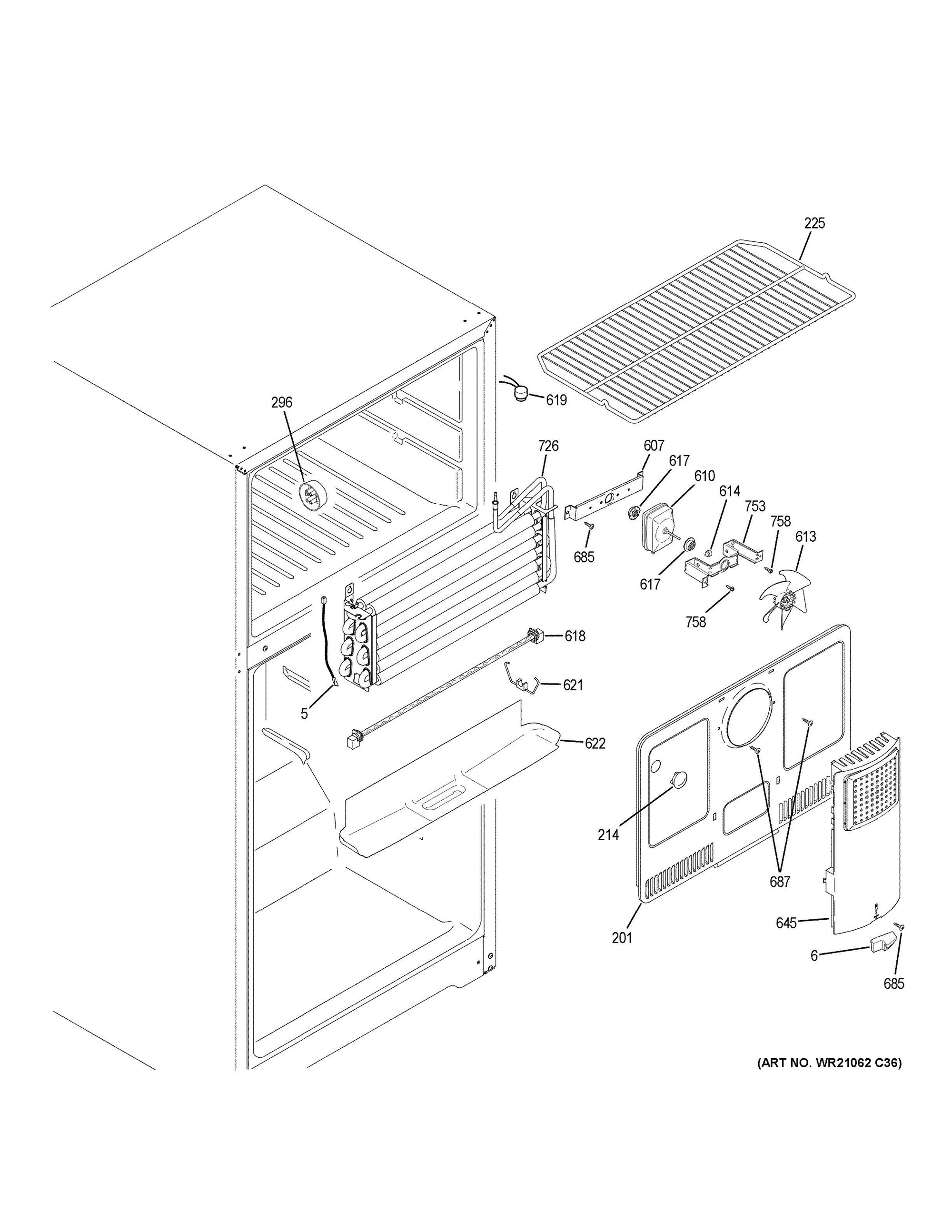

The image and part list below are associated with the component: FREEZER SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
EVAPORATOR COVER | WR17X29344 | WR17X30151 | 201 | 11 days | |
|
PLUG BUTTON | WR02X11760 | 214 | 3 days | ||
|
SHELF WIRE FZ | WR71X21169 | 225 | 11 days | ||
|
COVER IM RECEPTACLE | WR02X11123 | 296 | 3 days | ||
|
EVAPORATOR HARNESS | WR55X29492 | WR55X31625 | 5 | 11 days | |
|
ACTUATOR AIR FOAM | WR02X26890 | 6 | 11 days | ||
|
ACTUATOR AIR FOAM | WR02X30874 | 6 | 11 days | ||
|
BRACKET EVAP FAN REAR | WR21X10152 | WR21X30022 | 607 | 11 days | |
|
EVAPORATOR FAN MOTOR | WR60X28783 | WR60X31522 | 610 | 11 days | |
|
BLADE EVAP FAN ASM | WR60X10204 | WR60X46086 | 613 | 11 days | |
|
BUMPER | WR02X10540 | 614 | 3 days | ||
|
GROMMET EVAP FAN | WR02X12008 | 617 | 3 days | ||
|
HEATER DEF ASM | WR09X21107 | 618 | 11 days | ||
|
DEFROST THERMOSTAT | WR50X30071 | WR50X10071 | 619 | 3 days | |
|
HOLDER ELEMENT ASM | WR02X13678 | 621 | 11 days | ||
|
TROUGH DRAIN | WR17X21167 | WR17X30031 | 622 | 11 days | |
|
AIR TOWER | WR17X29345 | 645 | 11 days | ||
|
SCREW 8-18 AB HXW 1/2 S | WR02X29370 | 685 | 11 days | ||
|
SCR 8-15 AB IHXW 1/2 S | WR01X10589 | 687 | 3 days | ||
|
EVAPORATOR | WR87X30072 | WR87X28948 | 726 | 11 days | |
|
BRACKET EVAP FAN FRT | WR02X10516 | WR21X30013 | 753 | 11 days | |
|
SCR 8-32 TT HXW 3/8 S | WR01X10860 | 758 | 3 days |
