Model# XNE25JSKTFSS

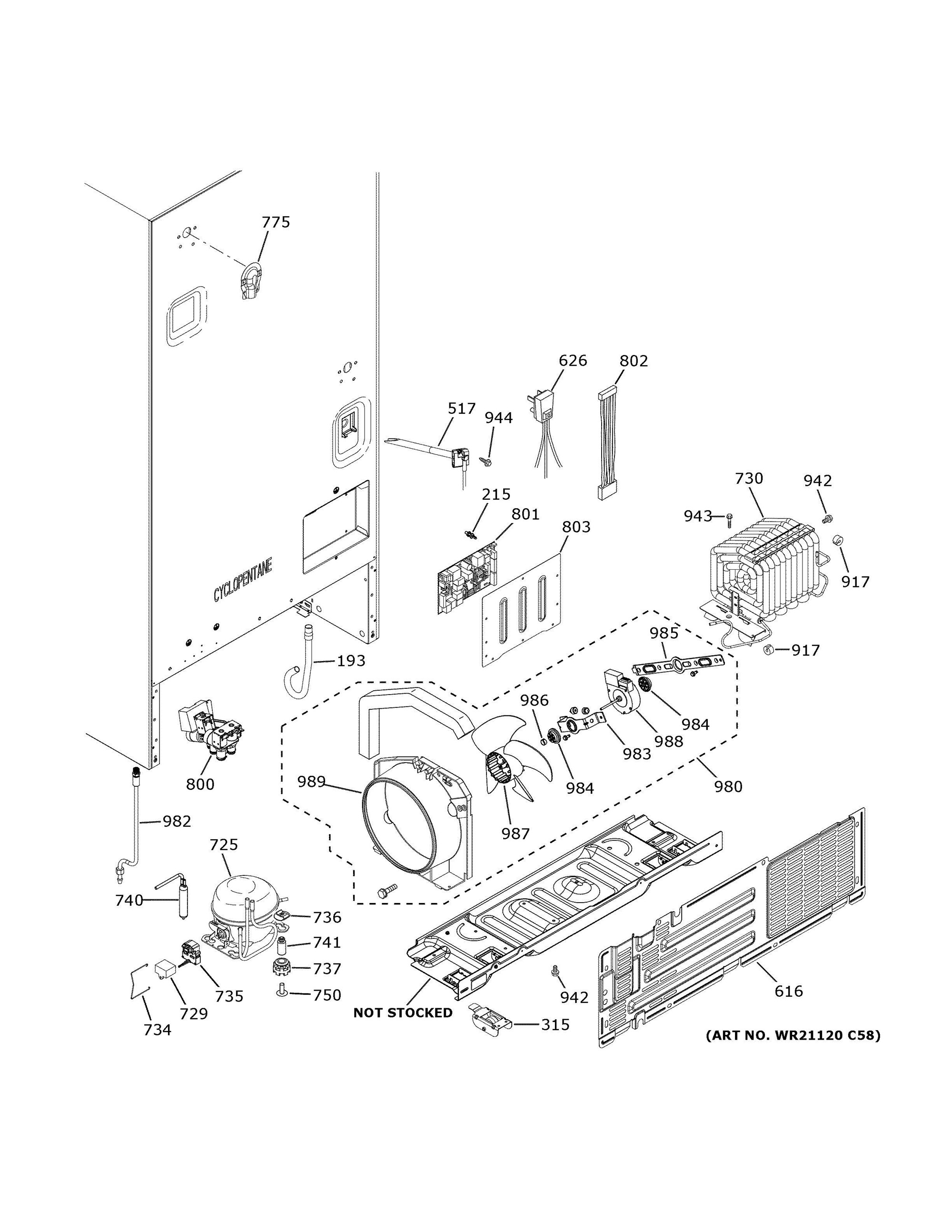

The image and part list below are associated with the component: MACHINE COMPARTMENT:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
TUBE DRAIN | WR02X11426 | 193 | 1 days | ||
|
STAND OFF | WR02X10663 | 215 | 1 days | ||
|
MOBILITY BACK ASM | WR02X24943 | 315 | 11 days | ||
|
GROMMET AND TUBE IM ASM | WR29X24766 | 517 | 11 days | ||
|
ACCESS COVER | WR82X10103 | 616 | 1 days | ||
|
POWER CORD | WR23X30131 | 626 | 11 days | ||
|
COMPRESSOR | WR87X39267 | WR87X43267 | 725 | 11 days | |
|
CAPACITOR 12 uF | WR55X23731 | WR55X24064 | 729 | 11 days | |
|
L-FIN AL CONDENSER 10 PASS | WR87X32326 | 730 | 11 days | ||
|
CLIP RETAINER COMBO | WR02X22564 | 734 | 11 days | ||
|
COMBO DEVICE TSD-2 | WR08X10111 | WR07X10131 | 735 | 1 days | |
|
CLIP | WR2X8203 | 736 | 1 days | ||
|
GROMMET | WR02X40305 | 737 | 11 days | ||
|
R600 DRIER W/ RED CAP | WR87X30875 | 740 | 11 days | ||
|
STUD MTG COMPR | WR01X1779 | WR1X1779 | 741 | 1 days | |
|
SCR 10-32 TR 1/2 | WR01X1786 | WR1X1786 | 750 | 1 days | |
|
COVER WATER LINE | WR17X37725 | 775 | 11 days | ||
|
VALVE ISOLATION ASM | WR57X30891 | WR57X30890 | 800 | 11 days | |
|
MAIN CONTROL BOARD | WR55X40526 | WR55X46945 | 801 | 11 days | |
|
HARNESS BOARD INDIV | WR55X25394 | 802 | 11 days | ||
|
MAIN CONTROL BOARD COVER | WR02X40325 | 803 | 11 days | ||
|
SOUND DAMPER | WR02X13573 | 917 | 11 days | ||
|
SCR 10-32 TT HXW 5/16 S | WR01X10654 | 942 | 1 days | ||
|
SCR 10-16 B HXW 1/4 S | WR01X25308 | 943 | 11 days | ||
|
SCR 8-18 AB IHW 5/8 S | WR01X10652 | 944 | 1 days | ||
|
CONDENSER FAN & HOUSING | WR60X29573 | 980 | 11 days | ||
|
TUBE LEAD | WR02X13774 | 982 | 1 days | ||
|
BRACKET COND FAN (MTG) | WR02X11863 | 983 | 1 days | ||
|
GROMMET FAN MOTOR | WR02X10520 | 984 | 1 days | ||
|
BRACKET COND FAN (REAR) | WR02X10593 | 985 | 1 days | ||
|
RING COMPRESSION | WR02X12149 | 986 | 1 days | ||
|
BLADE CONF FAN ASM | WR60X24484 | 987 | 11 days | ||
|
MOTOR DC COND FAN | WR60X10209 | 988 | 1 days | ||
|
SHROUD CONDENSER | WR17X31695 | 989 | 11 days |
