Model# WWA8890RBLAA

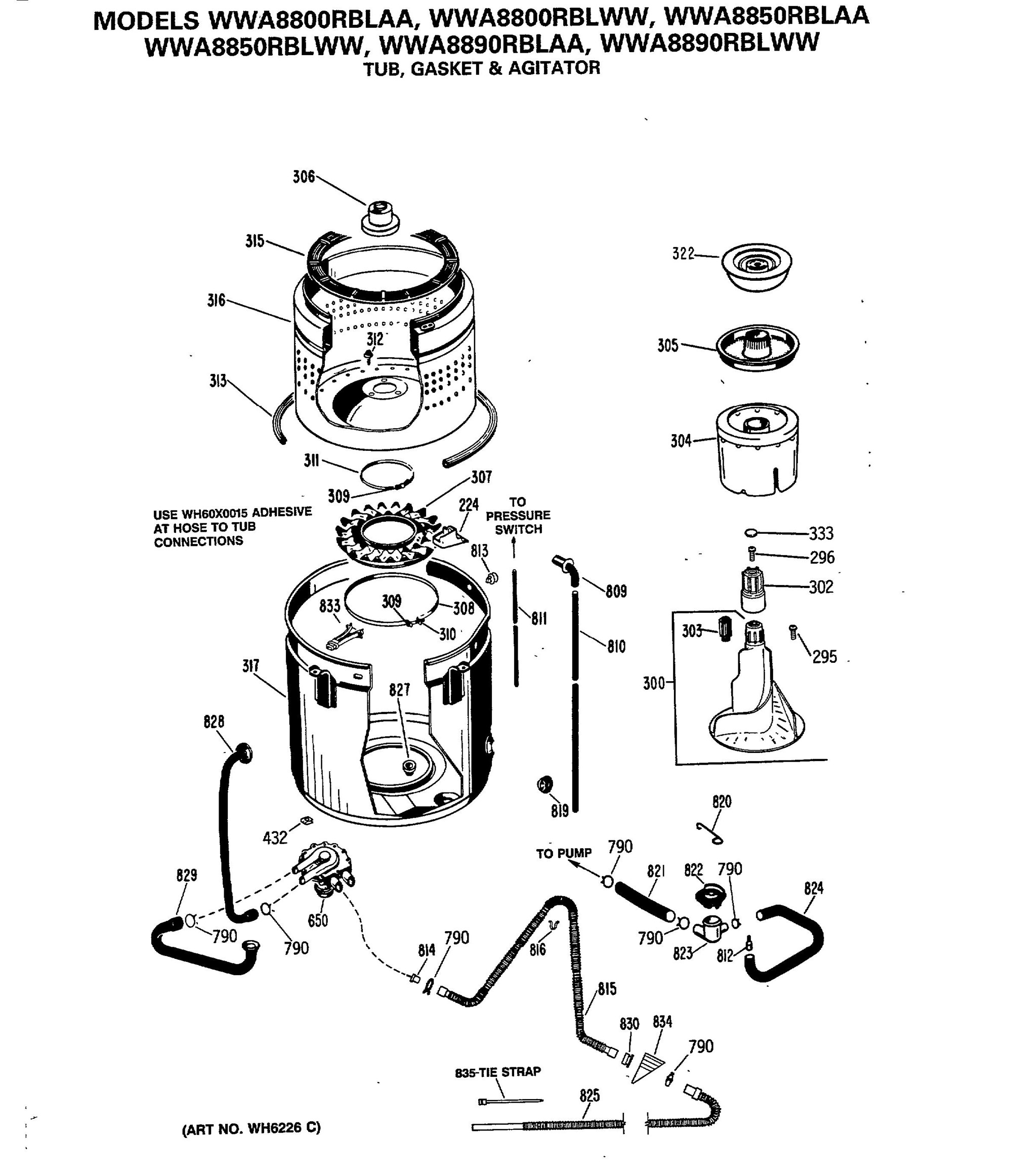

The image and part list below are associated with the component: TUB, GASKET & AGITATOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
FUNNEL TUB | WH01X2045 | WH1X2045 | 224 | 11 days | |
|
SCREW (BL) | WH02X1148 | WH2X1148 | 296 | 5 days | |
|
AGITATOR ASM | WH43X0126 | WH43X126 | 300 | 5 days | |
|
EXTENSION AGITATOR | WH43X0127 | WH43X127 | 302 | 5 days | |
|
COUPLING AGITATOR | WH01X2641 | WH1X2641 | 303 | 5 days | |
|
ACC BASKET & BAG ASM WH | WH45X0124 | WH45X124 | 304 | 11 days | |
|
FILTER RECIRC. WH | WH45X0141 | WH45X141 | 305 | 5 days | |
|
BOOT HUB | WH08X0292 | WH8X292 | 306 | 11 days | |
|
BOOT MECH | WH08X0246 | WH8X246 | 307 | - |
|
|
CLAMP ASM | WH01X1580 | WH1X1580 | 308 | 5 days | |
|
SCR | WH02X0935 | WH2X935D | 309 | 5 days | |
|
NUT | WH02X0936 | WH2X936D | 310 | 11 days | |
|
CLAMP ASM | WH01X1292 | WH1X1292 | 311 | 5 days | |
|
SCREW 5/16-18X7/8 | WH02X0681 | WH2X681D | 312 | 5 days | |
|
GASKET TUB | WH08X0305 | WH8X305 | 313 | 5 days | |
|
RETAINER CLOTHES | WH42X1062 | 315 | - |
|
|
|
BASKET ASM LG CAPACITY | WH45X0099 | 316 | 11 days | ||
|
TUB ASM | WH45X0116 | WH49X10008 | 317 | - |
|
|
DISPENSER & BAG ASM | WH47X0039 | WH47X39 | 322 | 11 days | |
|
CAP AGITATOR WH | WH43X0128 | WH43X128 | 333 | 11 days | |
|
NUT | WL02X0071 | 432 | 11 days | ||
|
PUMP ASM | WH23X0042 | WH23X42 | 650 | 5 days | |
|
CLAMP HOSE | WH01X2036 | 790 | 11 days | ||
|
NOZZLE OVERFLOW | WH08X0253 | WH8X253 | 809 | 11 days | |
|
TUBE OVERFLOW | WH01X1807 | WH1X1807 | 810 | 5 days | |
|
HOSE SW. | WH41X0341 | WH41X341 | 811 | 11 days | |
|
HOSE REDUCER | WH01X1584 | WH1X1584 | 812 | 5 days | |
|
ADAPTER HOSE | WH41X0158 | WH41X158 | 814 | - |
|
|
HOSE INT DRAIN | WH41X0325 | WH41X325 | 815 | 5 days | |
|
SUPPORT DRAIN HOSE | WH16X0372 | WH16X372 | 816 | 11 days | |
|
HANGER CHAMBER HOSE | WH01X2435 | WH1X2435 | 820 | 11 days | |
|
HOSE DRAIN INLET | WH41X0116 | WH41X116 | 821 | 5 days | |
|
GROMMET PUMP ELBOW | WH41X0118 | WH41X118 | 822 | 5 days | |
|
ELBOW-PUMP | WH41X0139 | WH41X139 | 823 | 11 days | |
|
HOSE CHAMBER | WH41X0121 | WH41X121 | 824 | 11 days | |
|
HOSE ASM EXT | WH41X0324 | WH41X324 | 825 | 5 days | |
|
COUPLING TUB HOSE | WH01X1966 | WH1X1966 | 827 | 11 days | |
|
HOSE RECIRCULATION | WH41X0340 | WH41X340 | 828 | 11 days | |
|
RECIRC HOSE INLET | WH41X0140 | WH41X140 | 829 | 5 days | |
|
GROMMET | WH01X2595 | WH1X2595 | 830 | 11 days | |
|
NOZZLE RECIRC | WH41X0143 | WH41X143 | 833 | 11 days | |
|
BRACKET HOSE | WH16X0493 | WH16X493 | 834 | 11 days | |
|
STRAP | WH01X2594 | WH1X2594 | 835 | 5 days |
