Model# WSM2780TDWWB

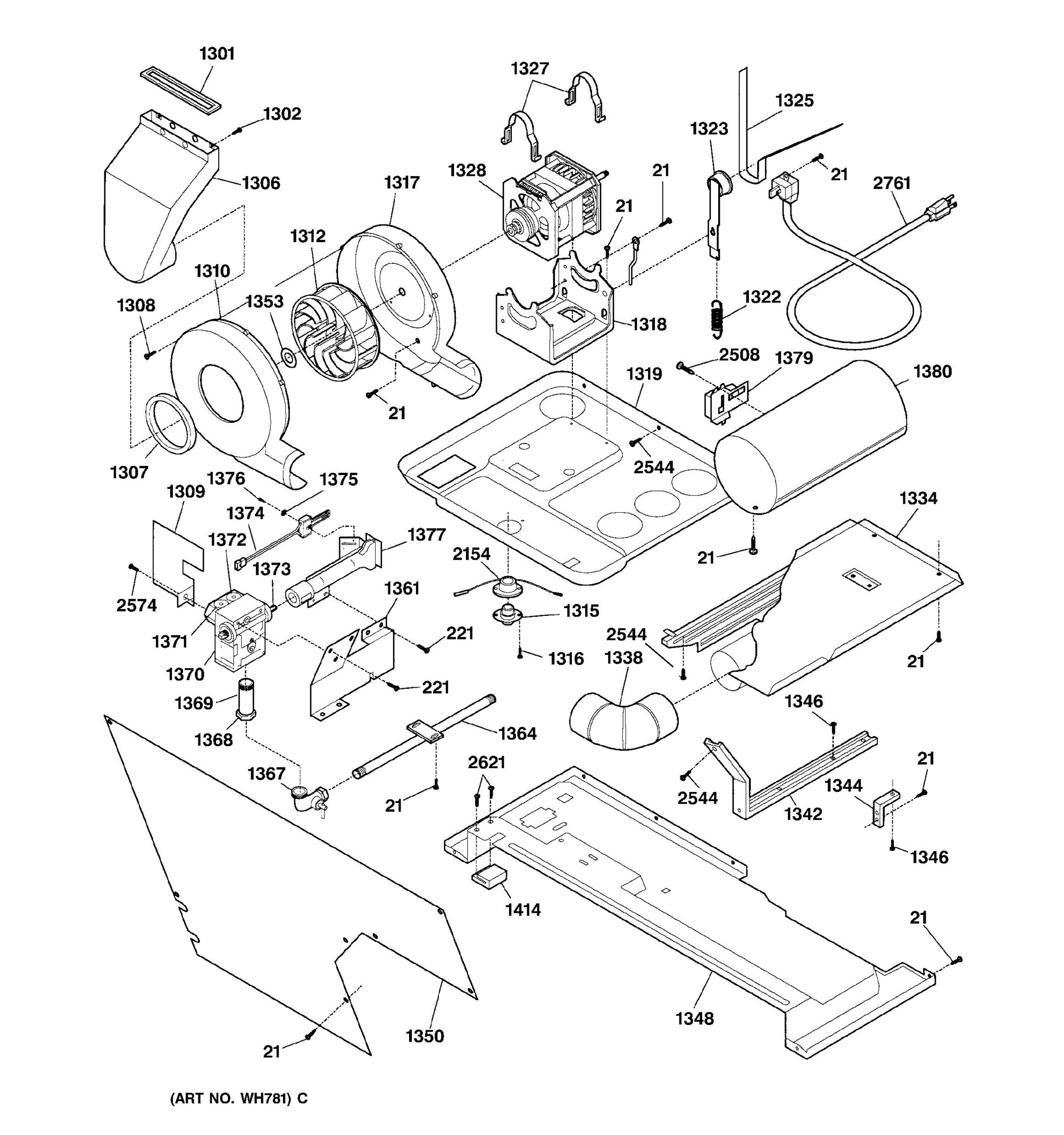

The image and part list below are associated with the component: DRYER-MOTOR, BLOWER & BELT:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SEAL AIR DUCT | WE09X10001 | 1301 | 4 days | ||
|
FASTENER | WE01X1262 | WE1X1262 | 1302 | 4 days | |
|
AIR DUCT ASM | WE14X10019 | WE14X22454 | 1306 | 11 days | |
|
SEAL | WE09X0104 | WE9X104 | 1307 | 4 days | |
|
SHIELD HEAT | WH16X0515 | WH16X515 | 1309 | 11 days | |
|
FRONT BLOWER HOUSING | WE14X10003 | WE14X10020 | 1310 | 11 days | |
|
BLOWER WHEEL | WE16X0028 | WE16X28 | 1312 | 4 days | |
|
THERMOSTAT CONTROL | WE04X0747 | WE4X747 | 1315 | 4 days | |
|
|
REAR BLOWER HOUSING | WE14X10004 | WE14X10020 | 1317 | 11 days | |
|
CRADLE MOTOR | WE13X10001 | 1318 | 11 days | ||
|
PAN MOTOR CRADLE UPPER | WE13X0210 | WE13X210 | 1319 | 11 days | |
|
SPRING IDLER | WE01X1159 | WE1X1159 | 1322 | 4 days | |
|
IDLER ARM ASM | WE01X10004 | WE03X29378 | 1323 | 11 days | |
|
BELT DRYER | WE12X0090 | WE12X10009 | 1325 | 4 days | |
|
CLAMP MOTOR | WE01X10003 | 1327 | 4 days | ||
|
MOTOR,SWITCH,PULLEY ASM | WE17X10003 | WE25X10019 | 1328 | 4 days | |
|
SHIELD ACCESS | WE01X10044 | 1334 | 11 days | ||
|
ELBOW EXHAUST | WE14X0206 | WE14X206 | 1338 | 11 days | |
|
BRACKET INTERIOR JOINT | WE13X0188 | WE13X188 | 1342 | 11 days | |
|
BRACKET EXTERIOR | WE13X0189 | WE13X189 | 1344 | 11 days | |
|
PAN BOTTOM | WE13X10012 | 1348 | 11 days | ||
|
COVER SAFETY | WE20X0753 | WE20X753 | 1350 | 11 days | |
|
CLAMP HOSE | WH01X10048 | 1353 | 4 days | ||
|
BRACKET VALVE | WE13X0191 | WE13X191 | 1361 | 11 days | |
|
PIPE GAS | WE01X1163 | WE1X1163 | 1364 | 4 days | |
|
VALVE GAS SHUT- OFF | WE01X10007 | WE01X10248 | 1367 | 11 days | |
|
TAIL PIECE GAS VALVE | WE01X1166 | WE1X1166 | 1368 | 11 days | |
|
NUT UNION GAS VALVE | WE02X0371 | WE01X10248 | 1369 | 11 days | |
|
GAS VALVE ASM | WE14X0207 | WE14X207 | 1370 | 4 days | |
|
COIL SECONDARY | WE04X0748 | WE04X10020 | 1371 | 4 days | |
|
|
COIL BOOSTER | WE04X10004 | WE04X10020 | 1372 | 4 days | |
|
ORIFICE NATURAL GAS | WE01X1167 | WE01X10022 | 1373 | 4 days | |
|
GAS CONV KIT NAT TO LP | WE25X0206 | WE25X10017 | 1373 | 4 days | |
|
LP TO NAT CONVERSION KIT | WE25X0207 | WE25X207 | 1373 | 4 days | |
|
IGNITOR ASM | WE04X0750 | WE4X750 | 1374 | 4 days | |
|
WASHER | WE01X10021 | 1375 | 11 days | ||
|
SCREW IGNITOR | WH02X10053 | WR1X2209 | 1376 | 11 days | |
|
BURNER ASM | WE01X10025 | 1377 | 11 days | ||
|
SENSOR | WE04X0751 | 1379 | 11 days | ||
|
TUBE BURNER | WE14X0208 | WE14X208 | 1380 | 11 days | |
|
BLOCK-SUPPORT | WH01X2622 | WH1X2622 | 1414 | 11 days | |
|
SCREW | WR02X9494 | WR2X9494 | 21 | 4 days | |
|
HEATER THERMOSTAT | WE04X10041 | 2154 | 4 days | ||
|
SCREW, 8-18AB X 0.375 | WH01X10004 | 221 | 4 days | ||
|
SCREW-SW 6032X.19-2A | WH02X10004 | 2574 | 11 days | ||
|
SCW #8 PAN HD 10-10BX.50 | WH02X10007 | WH2X1118 | 2621 | 4 days | |
|
POWER CORD | WE08X0044 | WE8X44 | 2761 | 11 days |
