Model# WSM2700WBWCC

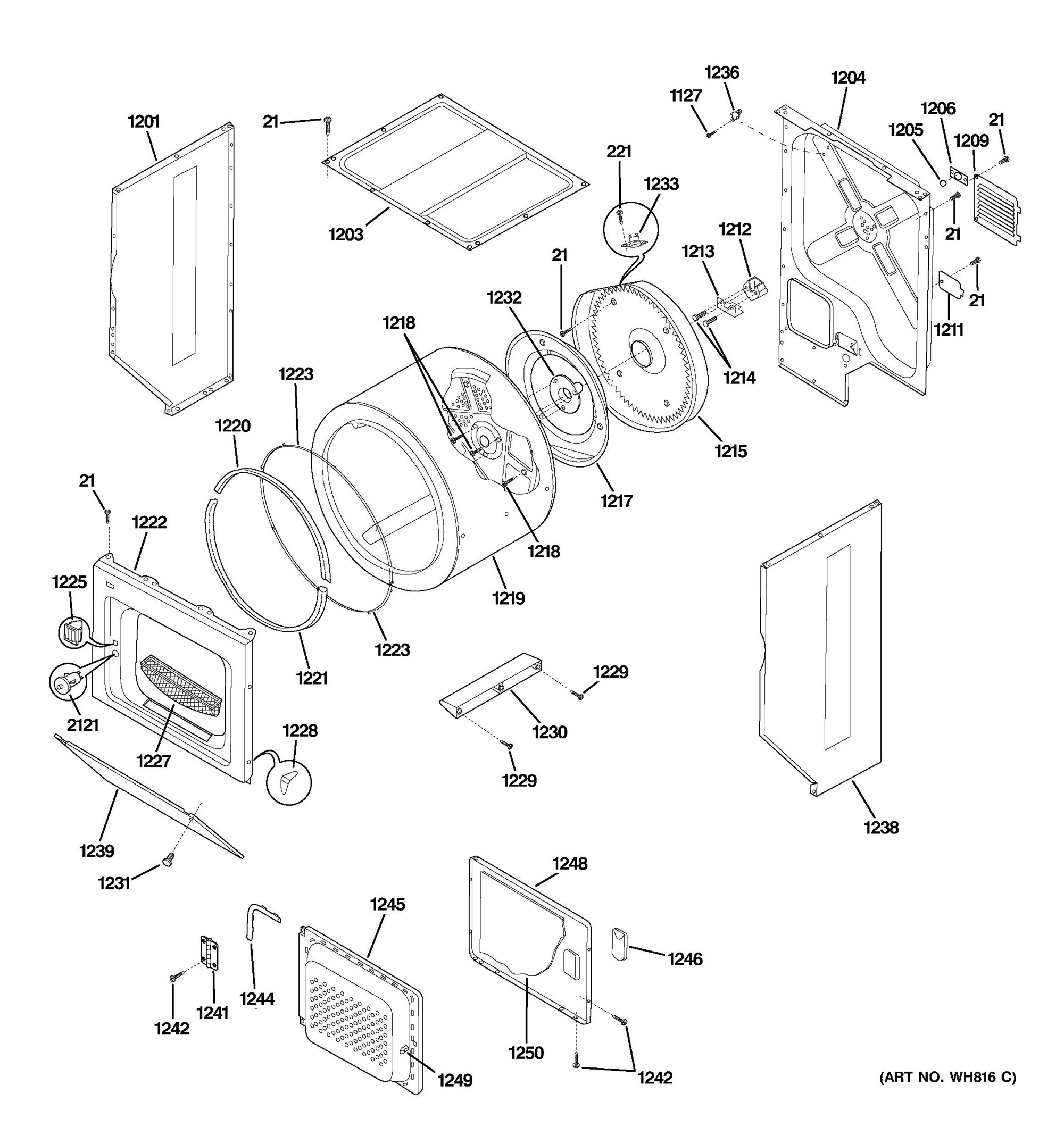

The image and part list below are associated with the component: DRYER UPPER CABINET, DRUM & HEATER:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW 6-20 X .230 | WE02X10033 | 1127 | 11 days | ||
|
PANEL SIDE DRYER L.H | WE20X10067 | 1201 | 11 days | ||
|
PANEL-TOP WASHED | WE20X10064 | 1203 | 11 days | ||
|
PANEL REAR | WE20X10015 | WE20X23274 | 1204 | 11 days | |
|
BALL | WE01X1152 | WE1X1152 | 1205 | 5 days | |
|
CLIP BALL | WE02X0358 | WE2X358 | 1206 | 5 days | |
|
PANEL ACCESS DRYER | WE20X0743 | WE20X743 | 1209 | 11 days | |
|
COVER TERM BLOCK | WE20X0754 | WE20X754 | 1211 | 11 days | |
|
BEARING-DRUM SUPPORT | WE03X10002 | WE3X70 | 1212 | 5 days | |
|
BRACKET BEARING | WE13X10009 | WE13X28680 | 1213 | 11 days | |
|
SCREW, 10-16B X 1.375 | WE02X10005 | 1214 | 5 days | ||
|
HEATER & HSNG ASM | WE11X0099 | WE11X99 | 1215 | 5 days | |
|
BAFFLE-HEATER | WE14X0202 | WE14X202 | 1217 | 5 days | |
|
SCREW 10-16 X.375 | WE02X10006 | WR2X9494 | 1218 | 5 days | |
|
DRUM ASS'Y | WE21X10014 | 1219 | 11 days | ||
|
FELT-UPPER | WE09X10013 | 1220 | 5 days | ||
|
FELT-LOWER | WE09X10014 | 1221 | 5 days | ||
|
PANEL-FRONT | WE20X10065 | 1222 | 5 days | ||
|
GLIDE-DRUM | WE03X10007 | 1223 | 5 days | ||
|
CATCH DOOR | WE01X10023 | 1225 | 5 days | ||
|
LINT TRAP | WE18X10003 | WE16X29397 | 1227 | 11 days | |
|
CLIP-GUIDE | WE02X0361 | WE2X361 | 1228 | 5 days | |
|
SCREW, 10-14 X 1.00 | WE02X10007 | 1229 | 5 days | ||
|
VANE | WE21X0069 | WE21X69 | 1230 | 5 days | |
|
SCREW 10-16 X 5/8 PPH AB | WE02X10002 | 1231 | 11 days | ||
|
SHAFT SUPPORT | WE13X10011 | 1232 | 5 days | ||
|
THERMOSTAT-SAFETY | WE04X10002 | WE4X757 | 1233 | 5 days | |
|
THERMAL LIMITER | WE04X10094 | 1236 | 5 days | ||
|
PANEL SIDE RIGHT | WE20X10068 | 1238 | 11 days | ||
|
PANEL ACCESS | WE20X10066 | 1239 | 11 days | ||
|
HINGE DOOR | WE01X10012 | 1241 | 5 days | ||
|
SCREW, 8-18 AB X .44 | WH02X10038 | WE02X10071 | 1242 | 5 days | |
|
GASKET DOOR | WE09X0107 | WE9X107 | 1244 | 5 days | |
|
DOOR INNER WH | WE10X10004 | 1245 | 5 days | ||
|
DOOR HANDLE CC | WE01X10162 | WE01X10050 | 1246 | 5 days | |
|
DOOR-OUTER CC | WE10X10012 | 1248 | 11 days | ||
|
STRIKE DOOR | WE01X1158 | WE1X1158 | 1249 | 5 days | |
|
INSULATOR HEAT SHEILD | WE10X0322 | WE10X322 | 1250 | 11 days | |
|
|
SCREW | WR02X9494 | WR2X9494 | 21 | 5 days | |
|
DOOR SWITCH | WE04X10003 | 2121 | 5 days | ||
|
SCREW, 8-18AB X 0.375 | WH01X10004 | 221 | 5 days |
