Model# WSM2700TDWWB

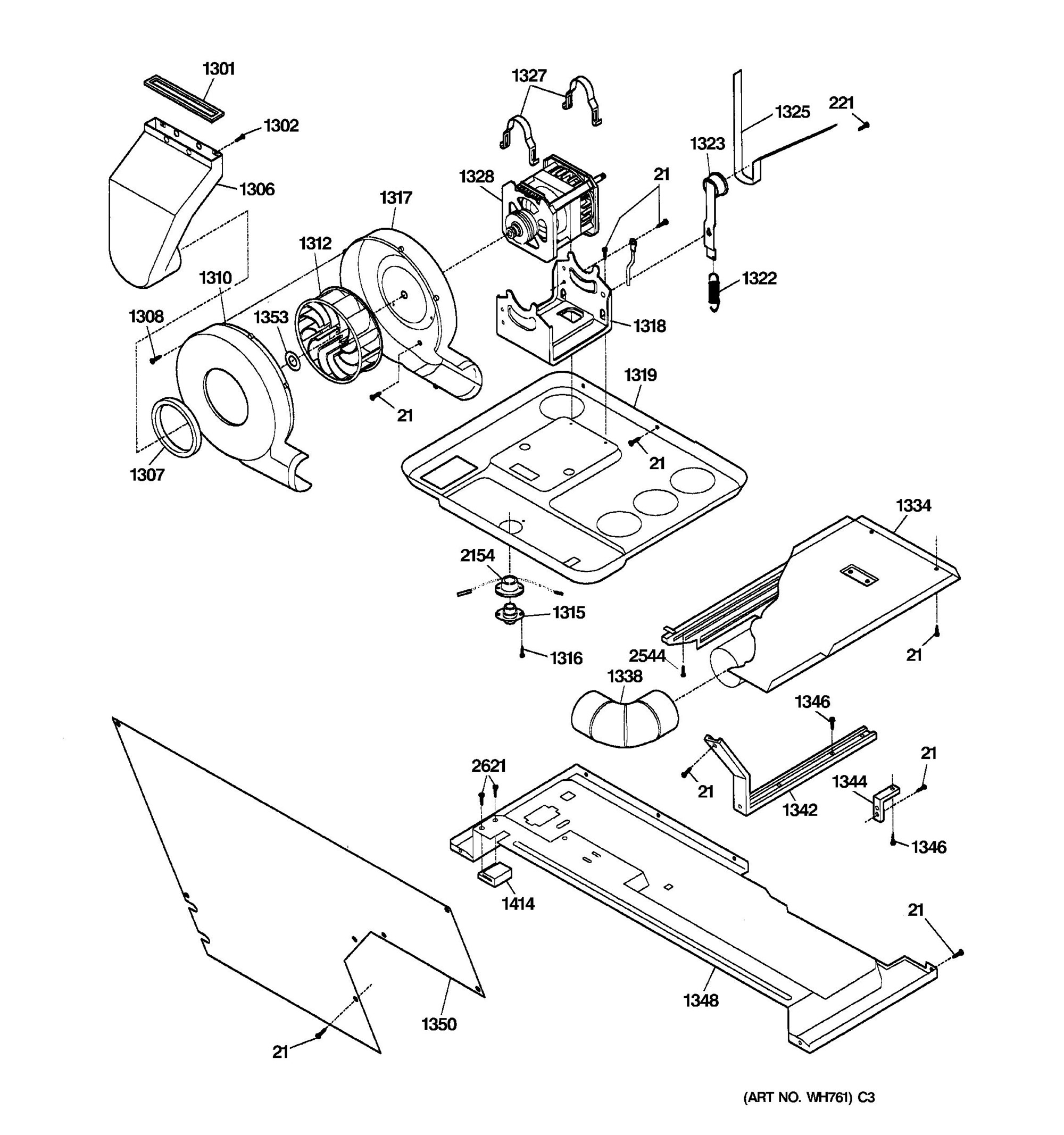

The image and part list below are associated with the component: DRYER-MOTOR, BLOWER & BELT:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SEAL AIR DUCT | WE09X10001 | 1301 | 4 days | ||
|
FASTENER | WE01X1262 | WE1X1262 | 1302 | 4 days | |
|
AIR DUCT ASM | WE14X10019 | WE14X22454 | 1306 | 11 days | |
|
SEAL | WE09X0104 | WE9X104 | 1307 | 4 days | |
|
FRONT BLOWER HOUSING | WE14X10003 | WE14X10020 | 1310 | 11 days | |
|
BLOWER WHEEL | WE16X0028 | WE16X28 | 1312 | 4 days | |
|
THERMOSTAT CONTROL | WE04X0755 | WE4X755 | 1315 | 4 days | |
|
|
REAR BLOWER HOUSING | WE14X10004 | WE14X10020 | 1317 | 11 days | |
|
CRADLE MOTOR | WE13X10001 | 1318 | 11 days | ||
|
PAN MOTOR CRADLE UPPER | WE13X0210 | WE13X210 | 1319 | 11 days | |
|
SPRING IDLER | WE01X1159 | WE1X1159 | 1322 | 4 days | |
|
IDLER ARM ASM | WE01X10004 | WE03X29378 | 1323 | 11 days | |
|
BELT DRYER | WE12X0090 | WE12X10009 | 1325 | 4 days | |
|
CLAMP MOTOR | WE01X10003 | 1327 | 4 days | ||
|
MOTOR,SWITCH,PULLEY ASM | WE17X10003 | WE25X10019 | 1328 | 4 days | |
|
SHIELD ACCESS | WE01X10043 | 1334 | 11 days | ||
|
ELBOW EXHAUST | WE14X0206 | WE14X206 | 1338 | 11 days | |
|
BRACKET INTERIOR JOINT | WE13X0188 | WE13X188 | 1342 | 11 days | |
|
BRACKET EXTERIOR | WE13X0189 | WE13X189 | 1344 | 11 days | |
|
PAN BOTTOM | WE13X10012 | 1348 | 11 days | ||
|
COVER SAFETY | WE20X0753 | WE20X753 | 1350 | 11 days | |
|
CLAMP HOSE | WH01X10048 | 1353 | 4 days | ||
|
BLOCK-SUPPORT | WH01X2622 | WH1X2622 | 1414 | 11 days | |
|
SCREW | WR02X9494 | WR2X9494 | 21 | 4 days | |
|
HEATER THERMOSTAT | WE04X10039 | 2154 | 4 days | ||
|
SCREW, 8-18AB X 0.375 | WH01X10004 | 221 | 4 days | ||
|
SCW #8 PAN HD 10-10BX.50 | WH02X10007 | WH2X1118 | 2621 | 4 days |
