Model# WRT318FZDB02

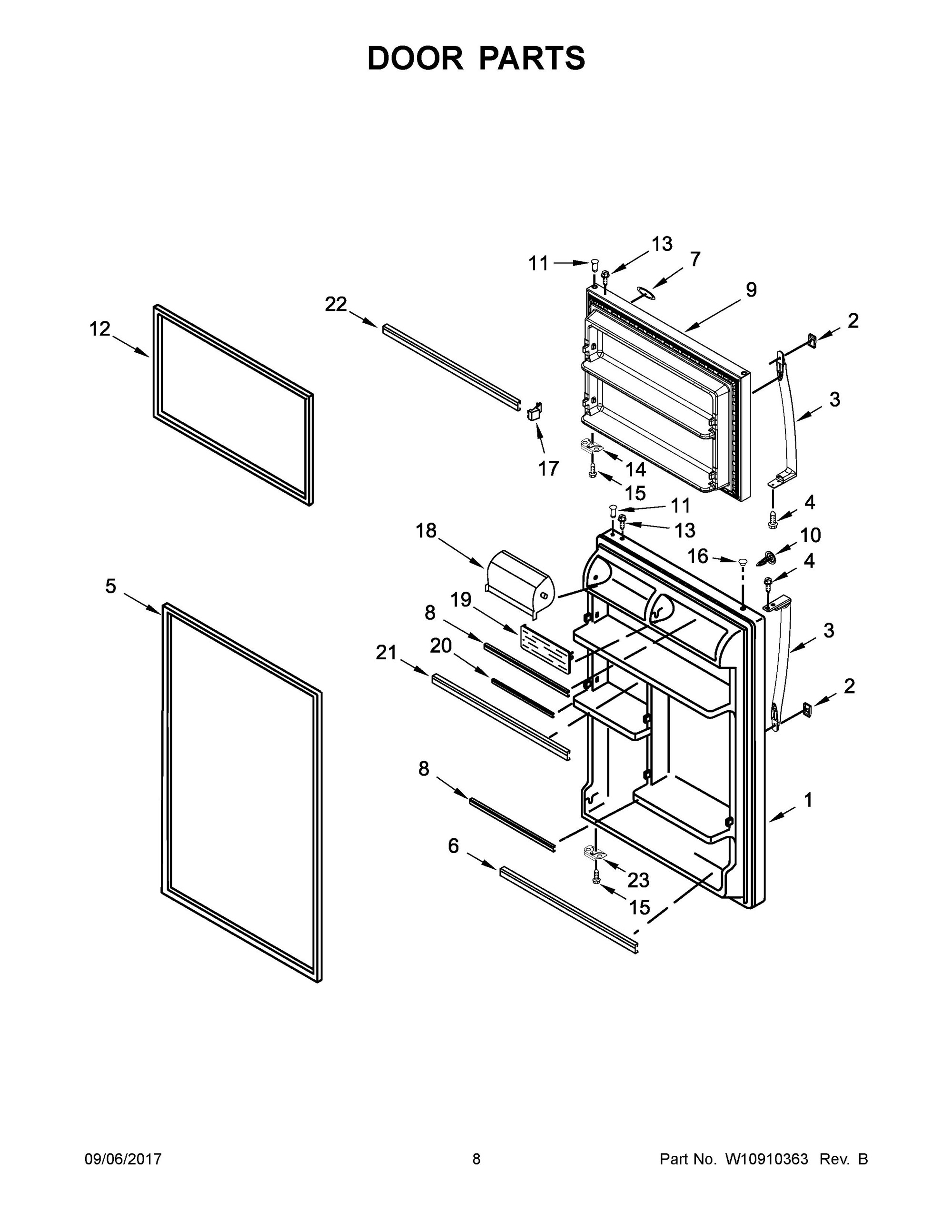

The image and part list below are associated with the component: 05 - DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (WHITE)", | W10636410 | LW10636410 | 1 | 1 days | |
|
HOLE PLUG (WHITE)", | W10663736 | W10830984 | 10 | 1 days | |
|
HOLE PLUG (BLACK)", | W10663737 | W10830983 | 10A | 1 days | |
|
HOLE PLUG (GREY)", | W10663739 | W10830982 | 10B | - |
|
|
THIMBLE", | 2262054 | WP2183003 | 11 | 1 days | |
|
DOOR GASKET, MAGNETIC (WHITE)", | W10638675 | W10861499 | 12 | 1 days | |
|
DOOR GASKET, MAGNETIC (BLACK)", | W10667843 | W11229610 | 12A | 11 days | |
|
DOOR GASKET, MAGNETIC (GREY)", | W11030682 | W11574983 | 12B | 11 days | |
|
Screw", | 8281206 | WP8281206 | 13 | 1 days | |
|
Bracket, Door Stop", | 2189202 | W11745278 | 14 | 11 days | |
|
Screw", | 488921 | WP488921 | 15 | 1 days | |
|
Hole Plug (White)", | 2212648 | WP2212648 | 16 | 1 days | |
|
Hole Plug (Black)", | 2212651 | WP2212651 | 16A | 1 days | |
|
HOLE PLUG (GREY)", | 2254517 | WP2254517 | 16B | - |
|
|
ENDCAP, TRIM", | 2156003 | 17 | 11 days | ||
|
DOOR, COMPARTMENT", | 2218113 | WP2218113 | 18 | 1 days | |
|
DOOR, FLIP UP", | 2188234 | WP2188234 | 19 | 1 days | |
|
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (BLACK)", | W10668874 | LW10668874 | 1A | 1 days | |
|
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (STAINLESS)", | W10638684 | LW10638684 | 1B | 1 days | |
|
HANDLE, TRIM (WHITE)", | W10672338 | WPW10672338 | 2 | 1 days | |
|
TRIM, SHELF DOOR", | W10719701 | W11106290 | 20 | 1 days | |
|
TRIM, DOOR", | W10678772 | W11170805 | 21 | 4 days | |
|
TRIM, DOOR", | W10719702 | W11126055 | 22 | 1 days | |
|
BRACKET, DOOR STOP", | W10638692 | W11402852 | 23 | 11 days | |
|
HANDLE, TRIM (BLACK)", | W10672339 | W10838316 | 2A | 1 days | |
|
HANDLE, TRIM (GREY)", | W10653466 | W11519504 | 2B | 11 days | |
|
HANDLE, DOOR (WHITE)", | W10672333 | WPW10672333 | 3 | 1 days | |
|
HANDLE, DOOR (BLACK)", | W10672334 | WPW10672334 | 3A | 1 days | |
|
HANDLE, DOOR (STAINLESS)", | W10653470 | W10806512 | 3B | 1 days | |
|
Screw", | 489357 | WP489357 | 4 | 1 days | |
|
DOOR GASKET, MAGNETIC (WHITE)", | W10638676 | W10838574 | 5 | 1 days | |
|
DOOR GASKET, MAGNETIC (BLACK)", | W10678768 | W11240749 | 5A | 11 days | |
|
DOOR GASKET, MAGNETIC (GREY)", | W11030683 | W11784834 | 5B | 11 days | |
|
TRIM, DOOR", | W10719703 | W11097831 | 6 | 1 days | |
|
NAMEPLATE (WHITE)", | W10481434 | W11178521 | 7 | 11 days | |
|
|
NAMEPLATE (GREY)", | W10481433 | W11178521 | 7A | 11 days | |
|
TRIM, DOOR", | W10719700 | W11129820 | 8 | 1 days | |
|
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (WHITE)", | W10636409 | LW10636409 | 9 | 1 days | |
|
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLACK)", | W10668875 | LW10668875 | 9A | 1 days | |
|
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAINLESS)", | W10638683 | LW10638683 | 9B | 1 days | |
|
FOLLOWING PARTS NOT ILLUSTRATED", | NP | NI | 11 days | ||
|
DOOR REVERSAL KIT STAINLESS MODEL", | W10676240 | NI | 1 days | ||
|
DOOR REVERSAL KIT, WHITE MODEL", | W10662124 | W11416038 | NI | 11 days | |
|
DOOR REVERSAL KIT, BLACK MODEL", | W10676239 | W11415957 | NI | 11 days |
