Model# WFW3090JW1

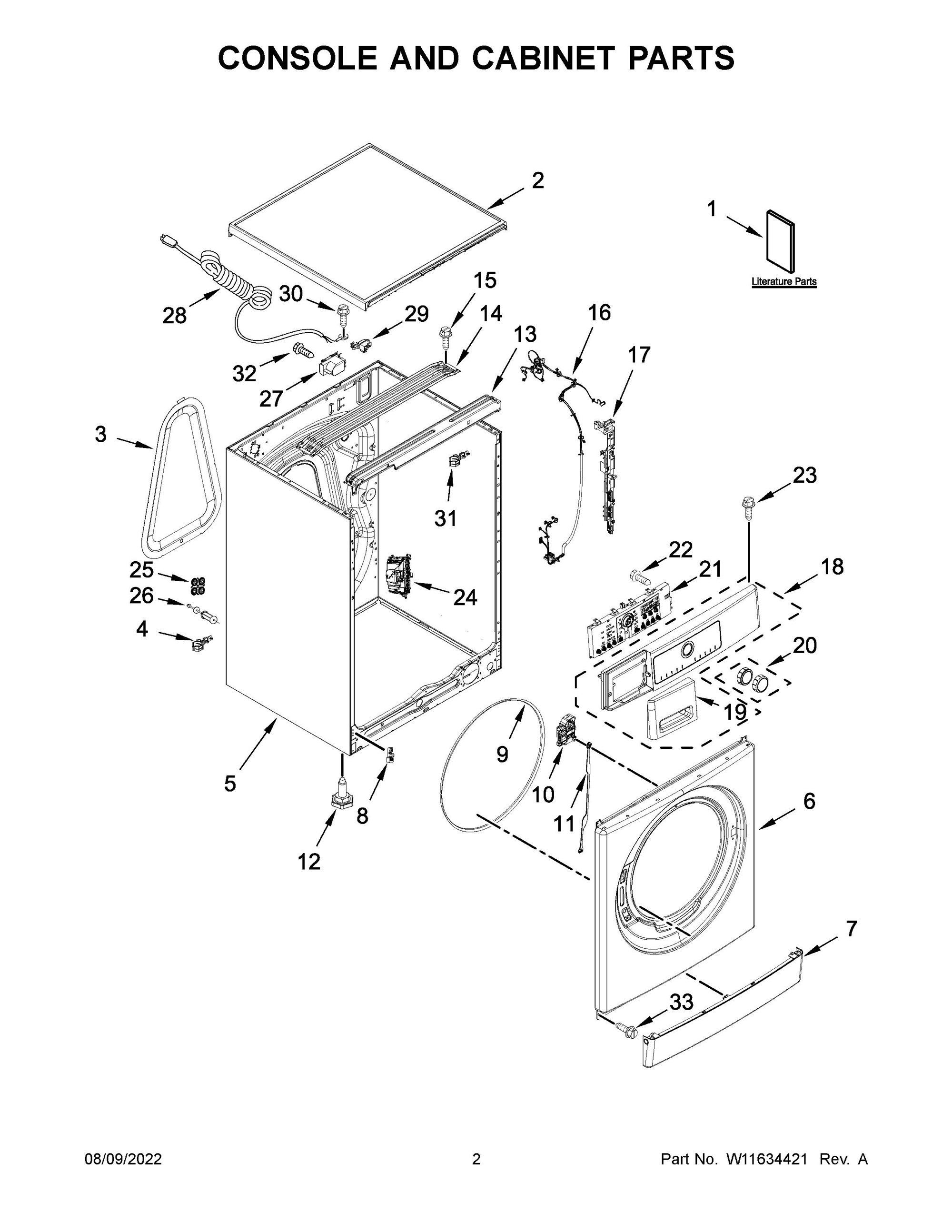

The image and part list below are associated with the component: 02 - CONSOLE AND CABINET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
USE AND CARE GUIDE", | W11330506 | 1 | 11 days | ||
|
LOCK, DOOR", | W10866069 | W11035628 | 10 | - |
|
|
CABLE-DOOR LOCK, EMERGENCY OPEN", | W10590587 | 11 | 11 days | ||
|
FOOT, LEVELING", | W10644894 | W11643138 | 12 | 11 days | |
|
BRACKET, CONTROL", | W10583233 | 13 | 11 days | ||
|
BRACKET, CROSS TOP", | W11120585 | 14 | 11 days | ||
|
SCREW", | W11088517 | 15 | 11 days | ||
|
HARNESS, MAIN", | W11132207 | 16 | 11 days | ||
|
CHANNEL, CABLE", | W10658184 | 17 | 11 days | ||
|
ASSEMBLY, CONSOLE (WHITE)", | W11306658 | W11586057 | 18 | - |
|
|
HANDLE, DRAWER (WHITE)", | W11170566 | 19 | 11 days | ||
|
ENERGY GUIDE", | W11330502 | 1A | 11 days | ||
|
QUICK START GUIDE", | W11330504 | 1B | 11 days | ||
|
TOP (WHITE)", | W10565648 | W11035619 | 2 | 5 days | |
|
ASSEMBLY, TIMER KNOB (INNER)", | W10869886 | 20 | 5 days | ||
|
KNOB, OUTER", | W10681351 | 20A | 11 days | ||
|
USER INTERFACE", | W11337199 | W11367297 | 21 | - |
|
|
SCREW", | 251921305003 | 22 | 11 days | ||
|
SCREW", | 251914602042 | 23 | 11 days | ||
|
TIMER/CCU (COMPLETE)", | W10840664 | W11371721 | 24 | - |
|
|
PLUG, TRANSPORT BOLT", | W10868081 | 25 | 11 days | ||
|
BOLT, TRANSPORT", | W10891902 | 26 | 11 days | ||
|
FILTER, RFI", | W10367632 | WPW10367632 | 27 | 5 days | |
|
POWER CORD", | W10849440 | 28 | 11 days | ||
|
STRAIN RELIEF, POWER CORD", | 461972493421 | 29 | 11 days | ||
|
PANEL, REAR", | W10697252 | 3 | 11 days | ||
|
SCREW", | W10893953 | 30 | 11 days | ||
|
CLAMP, CABLE", | 461971019321 | 31 | 11 days | ||
|
SCREW", | W11091051 | W10848668 | 32 | 11 days | |
|
SCREW", | 251926500053 | 33 | 11 days | ||
|
CLIP, DRAIN HOSE", | W10525749 | 4 | 11 days | ||
|
CABINET (WHITE)", | W10697253 | 5 | 11 days | ||
|
PANEL, FRONT (WHITE)", | W10721766 | W11704120 | 6 | 11 days | |
|
PANEL, TOE (WHITE)", | W10564940 | 7 | 5 days | ||
|
CLIP, FRONT PANEL", | W10685844 | 8 | 11 days | ||
|
RETAINER, FRONT PANEL", | W10632440 | 9 | 11 days |
