Model# WFG550S0LZ4

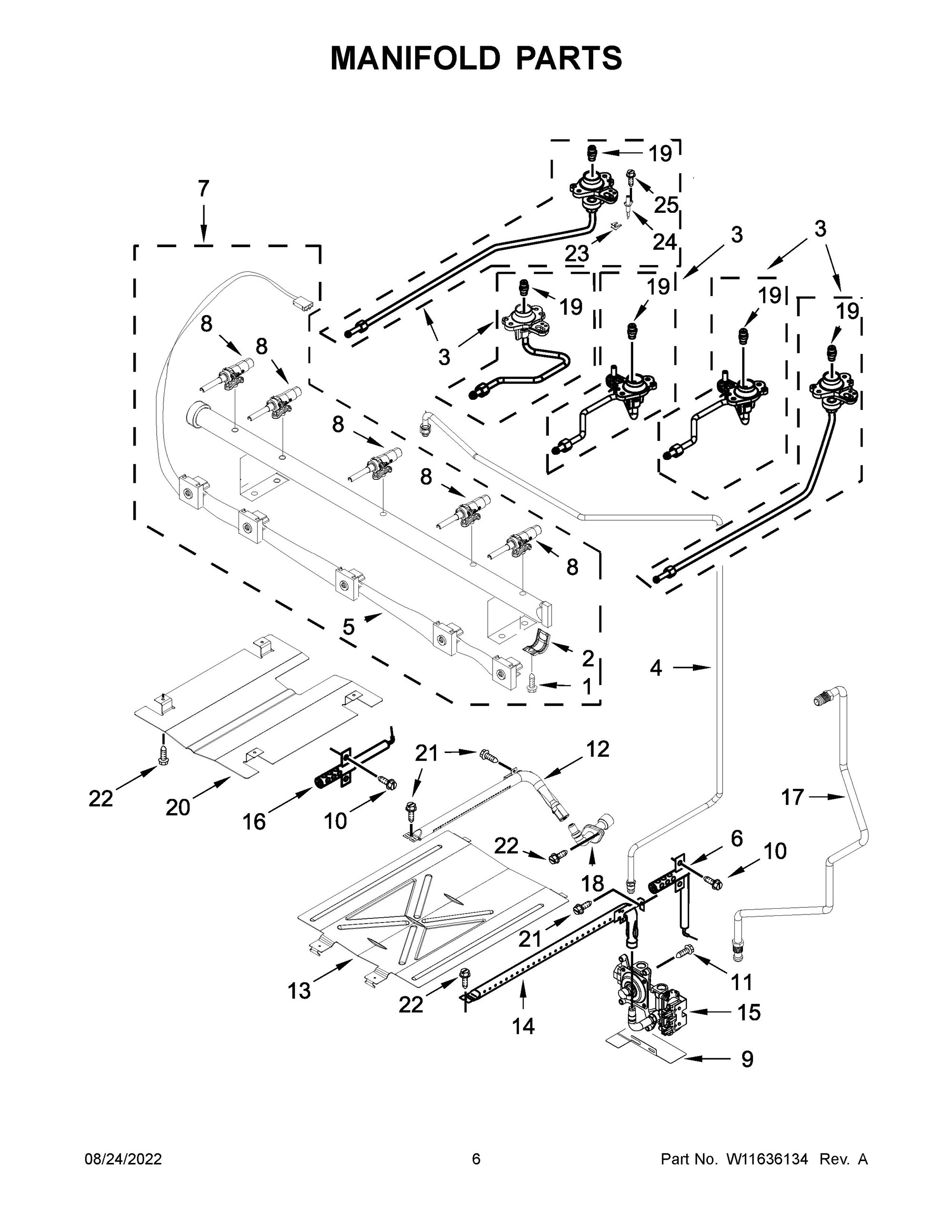

The image and part list below are associated with the component: 04 - MANIFOLD PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW, VALVE", | W11577792 | 1 | 11 days | ||
|
Screw", | 3196385 | W11684507 | 10 | 11 days | |
|
SCREW", | 3400016 | WP3400016 | 11 | 2 days | |
|
Burner, Broiler", | 8054078 | WP8054078 | 12 | 2 days | |
|
SPREADER, FLAME (OVEN)", | W10184491 | WPW10184491 | 13 | 2 days | |
|
Burner, Bake", | 9758078 | WP9758078 | 14 | - |
|
|
REGULATOR", | W11370883 | W11449506 | 15 | 11 days | |
|
ELECTRODE, BROIL", | W10333842 | WPW10333842 | 16 | 2 days | |
|
TUBE, BROILER SUPPLY", | W10420040 | 17 | 2 days | ||
|
FITTING, BROILER", | W11435700 | 18 | 11 days | ||
|
ORIFICE (15K) (LEFT FRONT AND RIGHT FRONT)", | W11485872 | W11700316 | 19 | 11 days | |
|
ORIFICE (9.5K) (LEFT REAR)", | W11485873 | 19A | 11 days | ||
|
ORIFICE (5K) (RIGHT REAR)", | W11485871 | W11712434 | 19B | 11 days | |
|
ORIFICE (8K) (CENTER)", | W11485874 | 19C | 11 days | ||
|
BRACKET, SADDLE VALVE", | W10949105 | 2 | 11 days | ||
|
SPREADER, FLAME (BROILER)", | W10137062 | 20 | 2 days | ||
|
Screw", | 3196265 | 21 | 2 days | ||
|
SCREW", | W10362924 | W11233072 | 22 | 11 days | |
|
ELECTRODE, SPRING", | W10827923 | W11684564 | 23 | 11 days | |
|
ELECTRODE (LEFT FRONT AND LEFT REAR)", | W11428831 | W11453940 | 24 | - |
|
|
ELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER)", | W11428858 | W11453920 | 24A | - |
|
|
SCREW", | W10673618 | W11241230 | 25 | 11 days | |
|
ORIFICE HOLDER ASSEMBLY (15K) (LEFT FRONT)", | W11459257 | W11562501 | 3 | 11 days | |
|
ORIFICE HOLDER ASSEMBLY (9.5K) (LEFT REAR)", | W11459258 | W11557815 | 3A | 11 days | |
|
ORIFICE HOLDER ASSEMBLY (15K) (RIGHT FRONT)", | W11459260 | W11557816 | 3B | 11 days | |
|
ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR)", | W11459259 | W11557817 | 3C | 11 days | |
|
ORIFICE HOLDER ASSEMBLY (8K) (CENTER)", | W11459261 | W11557818 | 3D | - |
|
|
TUBING (MANIFOLD TO REGULATOR)", | W10215439 | W11680399 | 4 | - |
|
|
HARNESS, IGNITER (INCLUDES SWITCHES)", | W11537754 | W11701336 | 5 | 11 days | |
|
ELECTRODE, BAKE", | W11450459 | W11524031 | 6 | 11 days | |
|
MANIFOLD ASSEMBLY", | W11510000 | 7 | - |
|
|
|
VALVE, GAS (LEFT FRONT AND RIGHT FRONT)", | W11509685 | W11759109 | 8 | - |
|
|
VALVE, GAS (LEFT REAR AND CENTER)", | W11509686 | 8A | 11 days | ||
|
VALVE,GAS (RIGHT REAR)", | W11509687 | 8B | 11 days | ||
|
BRACKET, AEGIS", | W10224921 | 9 | 2 days | ||
|
TIE, MANIFOLD WIRE", | W10182767 | WPW10182767 | NI | 2 days | |
|
ORIFICE, LP BAKE", | W10400495 | WPW10400495 | NI | 2 days | |
|
LP BAKE AND BROIL KIT", | W10566537 | W11126051 | NI | 2 days | |
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | NI | 11 days | ||
|
ORIFICE, LP BROIL", | W10465080 | W10758273 | NI | 2 days | |
|
LP 5 ORIFICE CONVERSION KIT", | W11489399 | W11560165 | NI | - |
|
