Model# WFG525S0JS5

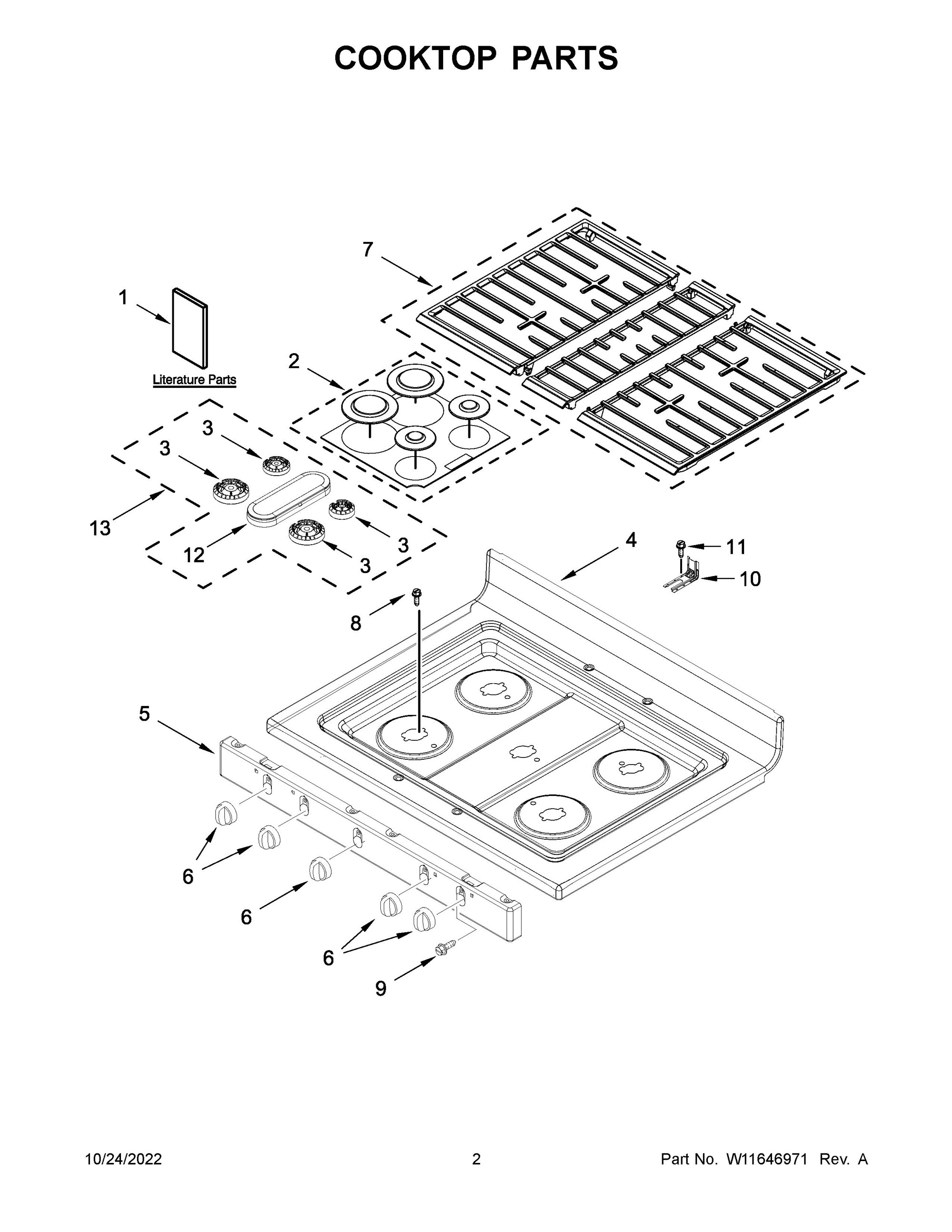

The image and part list below are associated with the component: 02 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
QUICK START GUIDE", | W11428051 | 1 | 11 days | ||
|
BRACKET, ANTI-TIP", | W11379945 | W11447673 | 10 | 11 days | |
|
SCREW, ANTI-TIP KIT", | 7101P48560 | 11 | 11 days | ||
|
OVAL BURNER ASSEMBLY (CENTER)", | W11357363 | W11475513 | 12 | - |
|
|
BURNER KIT", | W11367107 | W11662402 | 13 | 11 days | |
|
OWNER feetS MANUAL", | W11426600 | 1A | 11 days | ||
|
WIRING DIAGRAM", | W11508882 | 1B | 11 days | ||
|
BURNER CAP KIT (BLACK (SET OF 4))", | W11395131 | W11455147 | 2 | 11 days | |
|
SPREADER, FLAME (LEFT FRONT AND RIGHT FRONT)", | W11352018 | W11435630 | 3 | - |
|
|
SPREADER, FLAME (LEFT REAR)", | W11352020 | W11435659 | 3A | 11 days | |
|
SPREADER, FLAME (RIGHT REAR)", | W11352021 | W11435657 | 3B | - |
|
|
COOKTOP (BLACK)", | W11418086 | W11454367 | 4 | 11 days | |
|
PANEL, MANIFOLD (STAINLESS)", | W11050776 | W11159626 | 5 | - |
|
|
KNOB, CONTROL (STAINLESS)", | W11510456 | W11620567 | 6 | - |
|
|
GRATE KIT (BLACK (SET OF 3))", | W11090908 | W11252165 | 7 | 11 days | |
|
SCREW", | W10673618 | W11241230 | 8 | 11 days | |
|
SCREW", | 3196557 | WP3196557 | 9 | - |
|
|
Screw", | 3196173 | NI | 2 days | ||
|
CLIP, GAS WIRING", | W10334923 | NI | 11 days | ||
|
HARNESS, BAKE AND BROIL", | W11450461 | W11645866 | NI | - |
|
|
CLIP, HARNESS", | 313438 | 16515 | NI | 2 days | |
|
Clip, Wire", | 3196520 | 3400964 | NI | 2 days | |
|
CLIP, WIRE", | 3196896 | NI | 11 days | ||
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | NI | 11 days | ||
|
HARNESS, MAIN", | W11457167 | NI | - |
|
