Model# WFE540H0AB1

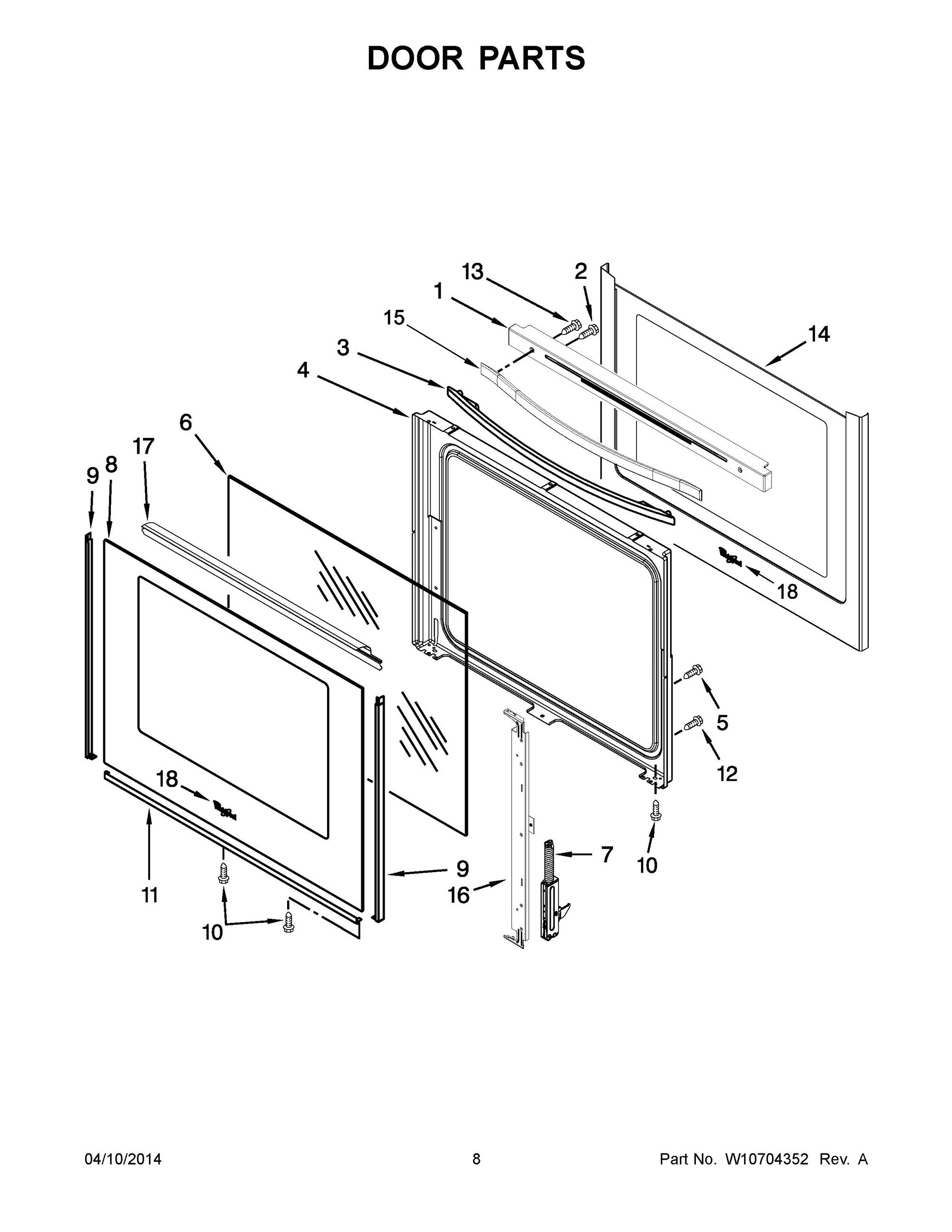

The image and part list below are associated with the component: 05 - DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
TRIM, TOP (WHITE)", | W10335331 | WPW10335331 | 1 | 2 days | |
|
TRIM, TOP (BLACK)", | W10294855 | 1 | 2 days | ||
|
TRIM, TOP (STAINLESS)", | W10335333 | 1 | 2 days | ||
|
Screw", | 3196165 | WP3196175 | 10 | 2 days | |
|
TRIM, LOWER (WHITE)", | W10333990 | WPW10333990 | 11 | 2 days | |
|
TRIM, LOWER (BLACK)", | W10334031 | 11 | 2 days | ||
|
SCREW", | W10031780 | 12 | 11 days | ||
|
SCREW", | W10317886 | WPW10317886 | 13 | 2 days | |
|
GLASS ASSEMBLY, OUTER DOOR (STAINLESS (INCLUDES BADGE))", | W10289144 | WPW10289144 | 14 | 2 days | |
|
HANDLE, DOOR (STAINLESS)", | W10254687 | WPW10618239 | 15 | 2 days | |
|
RAIL, DOOR", | W10294851 | W11116956 | 16 | - |
|
|
BRACKET, GLASS LINER", | W10294853 | 17 | 2 days | ||
|
BADGE (WHITE)", | W10434971 | W11178521 | 18 | - |
|
|
|
BADGE (GREY)", | W10434972 | W11178521 | 18 | - |
|
|
|
SCREW", | W10465151 | WPW10317886 | 2 | 2 days | |
|
HANDLE, DOOR (WHITE)", | W10300489 | 3 | 2 days | ||
|
HANDLE, DOOR (BLACK)", | W10300490 | 3 | 2 days | ||
|
LINER, DOOR", | W10297318 | WPW10297318 | 4 | - |
|
|
Screw", | W10031790 | WPW10031790 | 5 | 2 days | |
|
GLASS, INNER", | W10300487 | WPW10300487 | 6 | - |
|
|
HINGE, ACTIVE DOOR", | W10440013 | WPW10440013 | 7 | - |
|
|
GLASS, OUTER (WHITE (WHITE ICE MODEL))", | W10289141 | WPW10289141 | 8 | 2 days | |
|
GLASS, OUTER (BLACK (BLACK ICE MODEL))", | W10289142 | WPW10289142 | 8 | 2 days | |
|
GLASS, OUTER (WHITE)", | W10333987 | WPW10333987 | 8 | 2 days | |
|
GLASS, OUTER (BLACK)", | W10333988 | WPW10333988 | 8 | 2 days | |
|
TRIM, SIDE (WHITE)", | W10334003 | 9 | 2 days | ||
|
TRIM, SIDE (BLACK)", | W10334004 | 9 | 2 days |
