Model# WFE505W0JS3

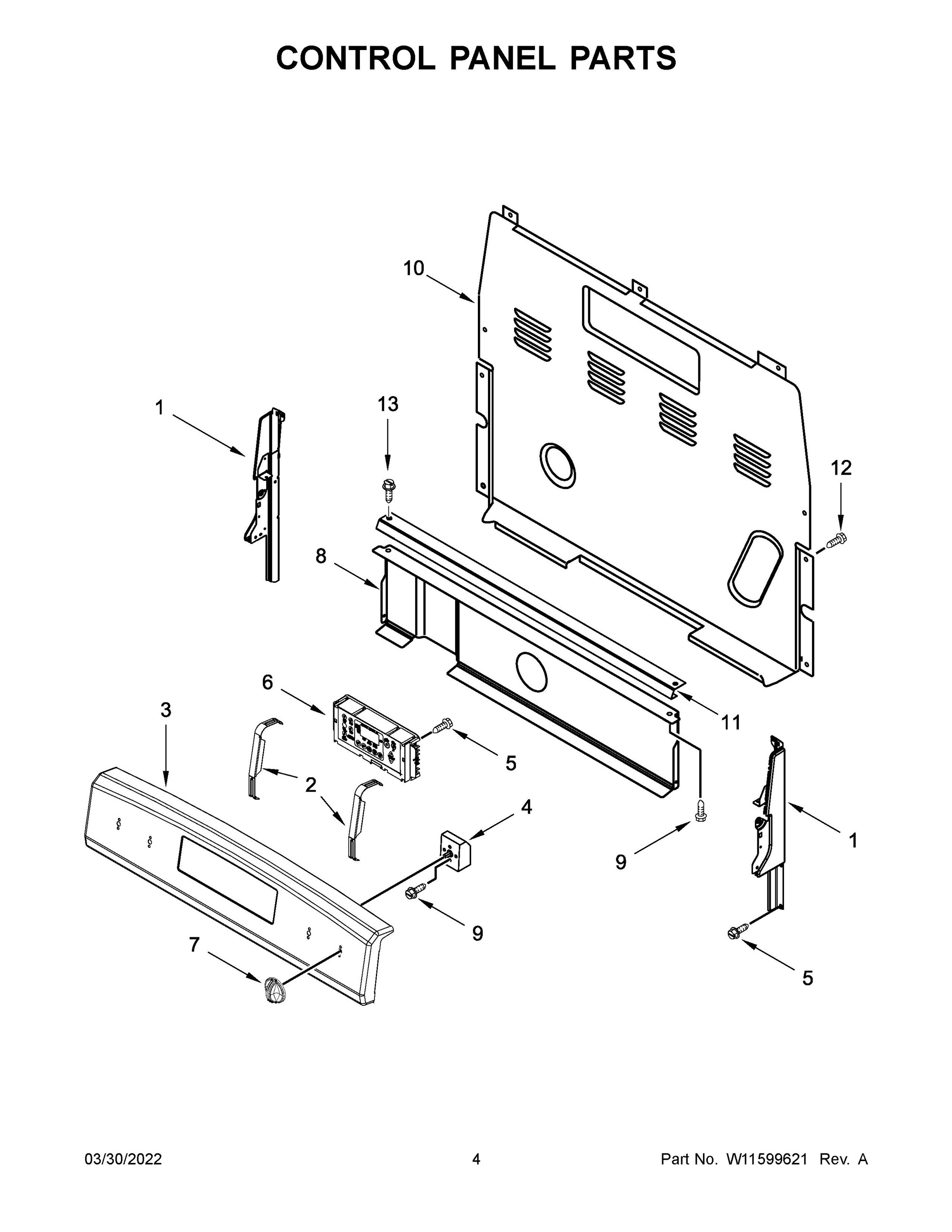

The image and part list below are associated with the component: 03 - CONTROL PANEL PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
ENDCAP (BLACK (LEFT))", | W11130372 | W11219664 | 1 | 11 days | |
|
COVER, UPPER REAR", | 8272473 | WP8272473 | 10 | 4 days | |
|
BRACKET, CONSOLE MOUNTING", | W10525121 | 11 | 4 days | ||
|
Screw", | 3196169 | WP3196557 | 12 | 4 days | |
|
Screw", | 3196165 | WP3196175 | 13 | 4 days | |
|
ENDCAP (BLACK (RIGHT))", | W11130379 | W11219665 | 1A | 11 days | |
|
BRACKET, CONTROL", | W10695491 | W11230932 | 2 | 11 days | |
|
CONSOLE, ASSEMBLY (STAINLESS)", | W11027373 | W11175518 | 3 | 11 days | |
|
SWITCH, INFINITE (DUAL) (LEFT FRONT)", | W10434452 | WPW10434452 | 4 | 4 days | |
|
SWITCH, INFINITE (LEFT REAR AND RIGHT REAR)", | 3148951 | 4A | 11 days | ||
|
SWITCH, INFINITE (ORANGE) (RIGHT FRONT)", | 3148954 | WP3149400 | 4B | 4 days | |
|
Screw", | 3196178 | W11233072 | 5 | - |
|
|
CONTROL, ELECTRONIC (LCX) (BLACK)", | W11428348 | W11567368 | 6 | 11 days | |
|
KNOB (BLACK)", | W11022718 | W11158169 | 7 | 11 days | |
|
Shield, Heat", | W10134247 | 8 | - |
|
|
|
Screw", | 3400882 | WP3400882 | 9 | 4 days |
