Model# WEG515S0FS0

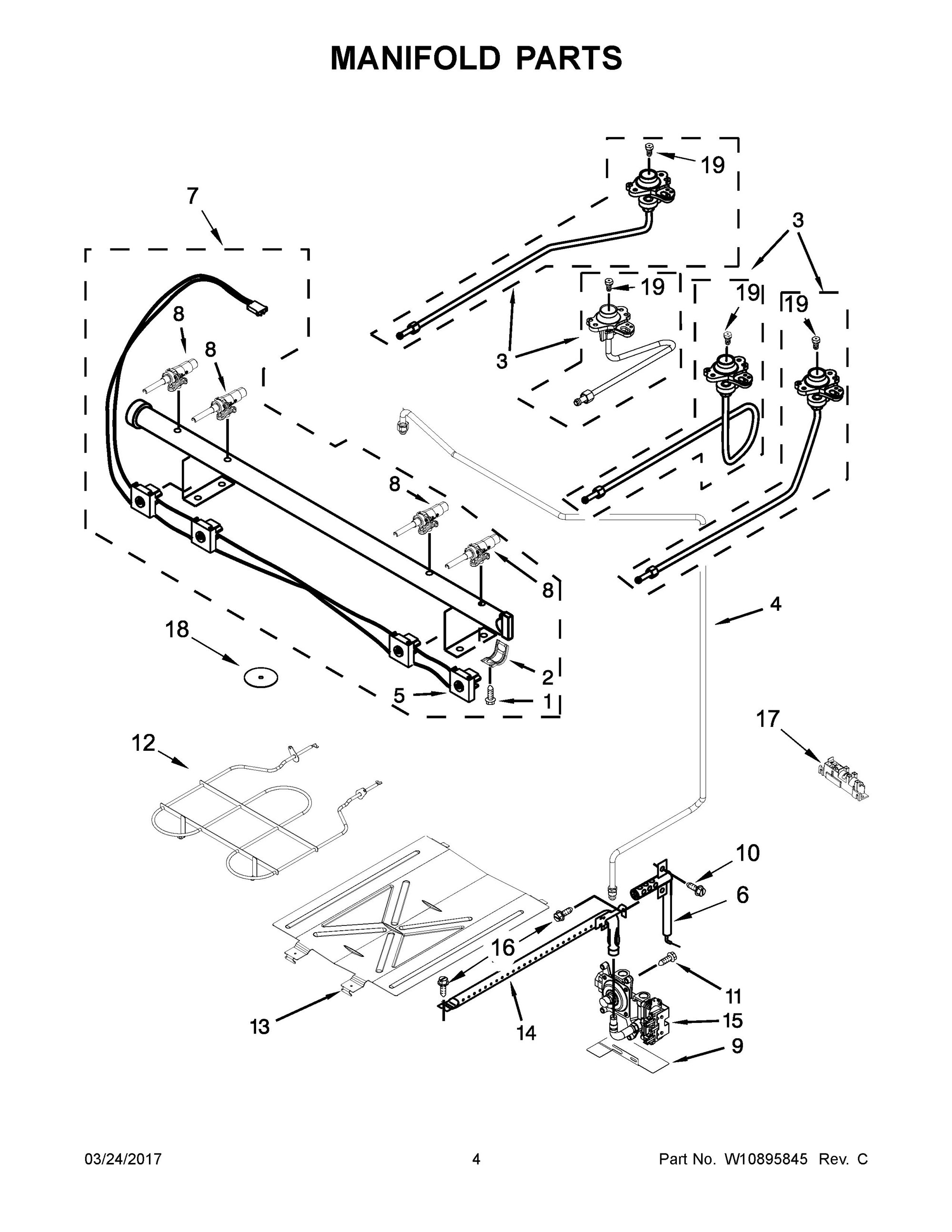

The image and part list below are associated with the component: 03 - MANIFOLD PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW", | W10246216 | W11666001 | 1 | 11 days | |
|
Screw", | 3196385 | W11684507 | 10 | 11 days | |
|
Screw", | 3400080 | W11684512 | 11 | 11 days | |
|
ELEMENT, BROILER", | W10714060 | 12 | 11 days | ||
|
SPREADER, FLAME (OVEN)", | W10184491 | WPW10184491 | 13 | 5 days | |
|
Burner, Bake", | 9758078 | WP9758078 | 14 | 5 days | |
|
REGULATOR", | W10818355 | W10898290 | 15 | 5 days | |
|
Screw", | 3196169 | 16 | 11 days | ||
|
MODULE, SPARK", | W10110488 | WPW10110491 | 17 | 5 days | |
|
SEAL, SWITCH SHAFT", | W10140571 | 18 | - |
|
|
|
ORIFICE (LEFT FRONT, RIGHT FRONT)", | W10849717 | 19 | 5 days | ||
|
ORIFICE (RIGHT REAR)", | W10849714 | 19A | 11 days | ||
|
ORIFICE (LEFT REAR)", | W10849719 | W11677633 | 19B | 11 days | |
|
BRACKET, SADDLE VALVE", | W10295996 | W10949105 | 2 | 11 days | |
|
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)", | W10827780 | 3 | 11 days | ||
|
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)", | W10827775 | W11035644 | 3A | 5 days | |
|
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)", | W10827777 | 3B | - |
|
|
|
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)", | W10827779 | 3C | - |
|
|
|
TUBING (MANIFOLD TO REGULATOR)", | W10804030 | 4 | 11 days | ||
|
HARNESS, SWITCH", | W10834787 | 5 | 5 days | ||
|
ELECTRODE, BAKE", | 9758079 | WP9758079 | 6 | 5 days | |
|
ASSEMBLY, MANIFOLD", | W10902173 | W11302156 | 7 | 11 days | |
|
VALVE, GAS (LEFT REAR)", | W10901556 | 8 | 5 days | ||
|
VALVE, GAS (LEFT FRONT & RIGHT FRONT)", | W10901555 | W11690141 | 8A | 11 days | |
|
VALVE, GAS (RIGHT REAR)", | W10901554 | 8B | 5 days | ||
|
BRACKET, AEGIS", | W10224921 | 9 | 5 days | ||
|
FOLLOWING PARTS NOT ILLUSTRATED", | NP | NI | 11 days | ||
|
TIE, MANIFOLD WIRE", | W10182767 | WPW10182767 | NI | 5 days | |
|
SPUDS, LP GAS", | W10838118 | W11699925 | NI | 11 days | |
|
ORIFICE, LP BAKE", | W10838304 | W11763416 | NI | 11 days |
