Model# WED5100HW2

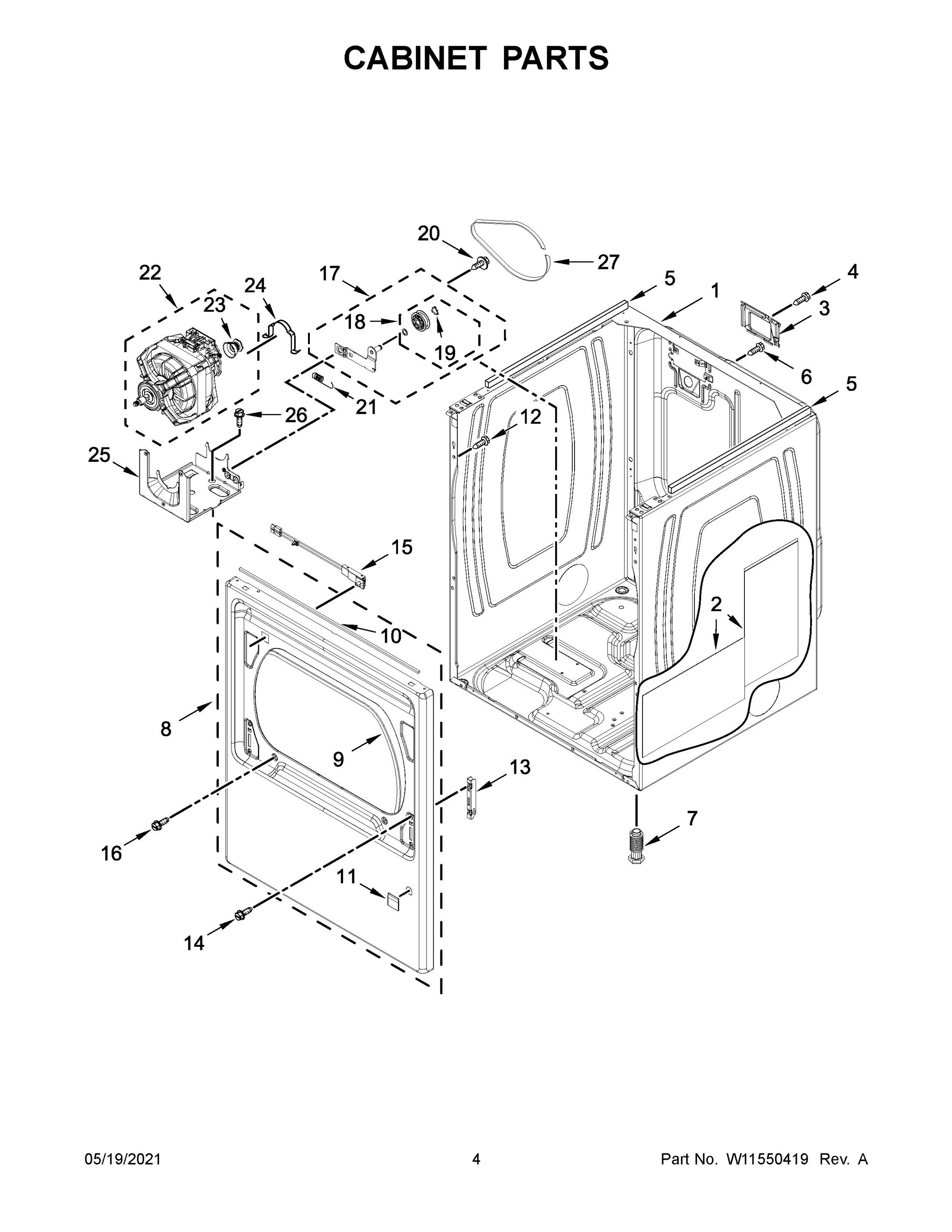

The image and part list below are associated with the component: 03 - CABINET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CABINET (WHITE)", | W11161907 | W11417441 | 1 | - |
|
|
SEAL, FOAM", | W11261179 | W11406199 | 10 | 11 days | |
|
PLUG, FRONT PANEL (WHITE)", | 8564457 | W10811916 | 11 | 2 days | |
|
PLUG, FRONT PANEL (CHROME SHADOW)", | W11305280 | W11406198 | 11A | 11 days | |
|
SCREW", | 8281212 | W10891954 | 12 | 2 days | |
|
HINGE, INNER DOOR (RECEPTACLE)", | W11116026 | W11568982 | 13 | 11 days | |
|
SCREW", | W10704731 | W10916641 | 14 | 2 days | |
|
ASSEMBLY, DOOR SWITCH", | W11307535 | W11551763 | 15 | 11 days | |
|
SCREW", | 3357011 | WP308685 | 16 | 2 days | |
|
ASSEMBLY, IDLER", | W10547287 | W10837240 | 17 | 2 days | |
|
ASSEMBLY, PULLEY", | W10468057 | 279640 | 18 | 2 days | |
|
WASHER, TRI RING", | W10512946 | WPW10512946 | 19 | 2 days | |
|
CABINET (CHROME SHADOW)", | W11174572 | W11417445 | 1A | 11 days | |
|
PANEL, DAMPENING", | W11313127 | W11690850 | 2 | 11 days | |
|
SCREW", | 3389420 | WP3389420 | 20 | 2 days | |
|
SPRING, IDLER", | W10446781 | WPW10446781 | 21 | 2 days | |
|
ASSEMBLY, MOTOR", | W11492434 | W11549461 | 22 | 11 days | |
|
PULLEY, MOTOR", | W10460106 | W10837625 | 23 | 2 days | |
|
CLAMP, MOTOR MOUNT", | W10121316 | WPW10121316 | 24 | 2 days | |
|
BRACKET, MOTOR MOUNTING", | W11404905 | W11481730 | 25 | 11 days | |
|
SCREW", | 343641 | WP681414 | 26 | 2 days | |
|
Belt, Drive", | 3387610 | 661570V | 27 | 2 days | |
|
COVER, TERMINAL BLOCK", | W11394868 | W11662367 | 3 | 11 days | |
|
SCREW", | 3390631 | WP3390631 | 4 | 2 days | |
|
SEAL, FOAM", | W11241070 | W11352071 | 5 | 11 days | |
|
SCREW", | 359625 | W11693756 | 6 | 11 days | |
|
FOOT, DRYER", | W11332301 | W11444912 | 7 | 11 days | |
|
PANEL, FRONT (WHITE)", | W11122123 | W11402947 | 8 | 11 days | |
|
PANEL, FRONT (CHROME SHADOW)", | W11176922 | W11402953 | 8A | - |
|
|
Seal, Front Panel", | 3387242 | 9 | 11 days |
