Model# WDT720PADB1

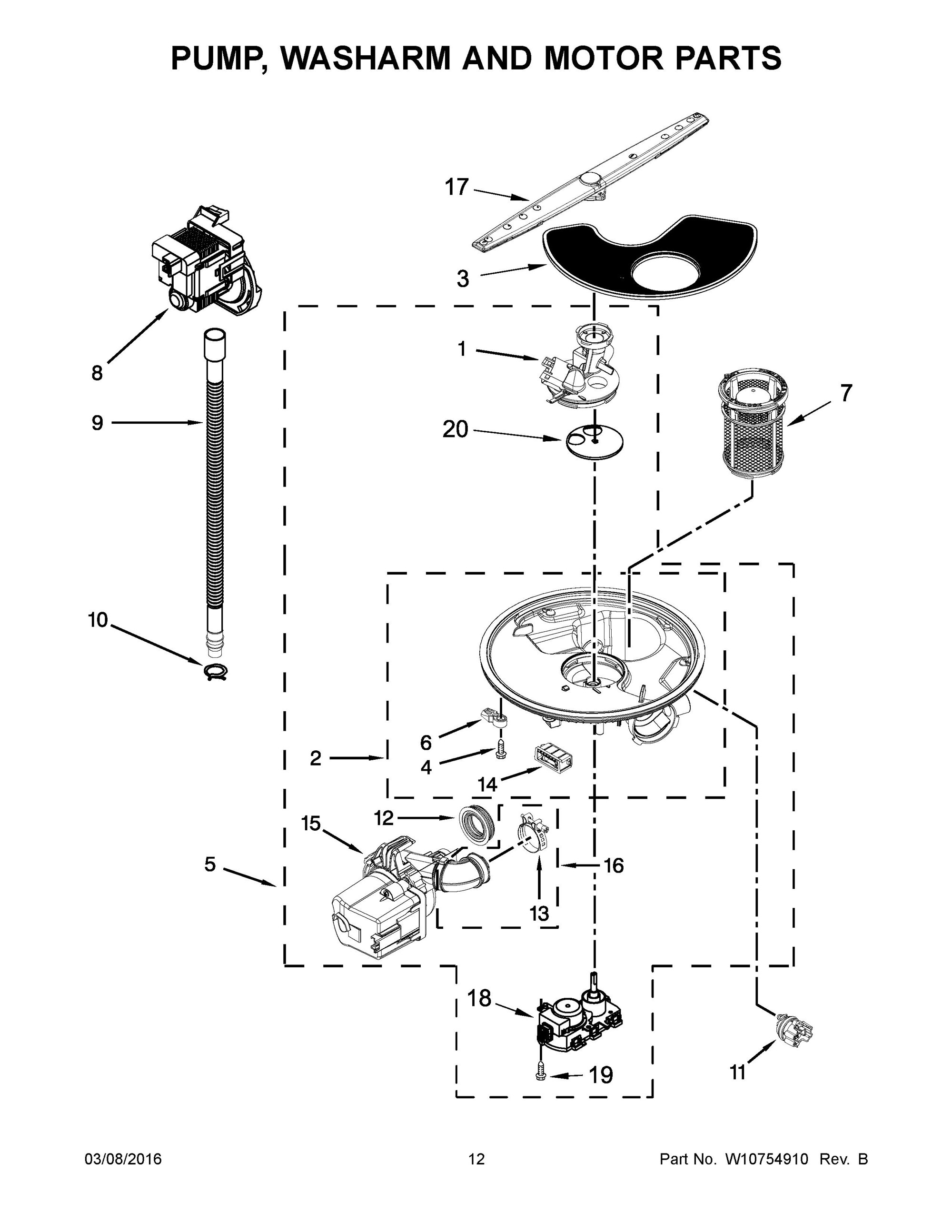

The image and part list below are associated with the component: 07 - PUMP, WASHARM AND MOTOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COVER, OUTLET", | W10463894 | W11245091 | 1 | 11 days | |
|
CLAMP, HOSE", | 370445 | WP285655 | 10 | 5 days | |
|
INDICATOR, OPTICAL WASH", | W10705575 | WPW10705575 | 11 | 5 days | |
|
GROMMET", | W10538166 | WPW10538166 | 12 | 5 days | |
|
CLAMP, HOSE", | W10169167 | W10789434 | 13 | 5 days | |
|
MOTOR, ISOLATOR", | W10195086 | W11243394 | 14 | 11 days | |
|
MOTOR (ALSO ORDER ITEMS 12 & 16)", | W10816492 | W11032770 | 15 | 5 days | |
|
HOSE ASSEMBLY (INCLUDES 2 CLAMPS)", | W10445975 | 16 | 5 days | ||
|
SPRAYARM", | W10491331 | WPW10491331 | 17 | 5 days | |
|
MOTOR, DIVERTER", | W10476222 | W10537869 | 18 | 5 days | |
|
Screw", | 9741232 | 19 | 11 days | ||
|
SUMP WITH SEAL (ALSO ORDER ITEMS 12 & 16)", | W10455268 | WPW10455268 | 2 | 5 days | |
|
DISC, DIVERTER", | W10476221 | WPW10476221 | 20 | 5 days | |
|
SCREEN", | W10463906 | WPW10463906 | 3 | 5 days | |
|
SCREW", | W10348407 | WPW10348407 | 4 | 5 days | |
|
SUMP & MOTOR ASSEMBLY", | W10671941 | WPW10671941 | 5 | 5 days | |
|
TAB, SUMP", | W10372113 | WPW10372113 | 6 | 5 days | |
|
FILTER CUP ASSEMBLY", | W10789806 | W10872845 | 7 | 5 days | |
|
PUMP, DRAIN", | W10348269 | WPW10348269 | 8 | 5 days | |
|
Hose, Drain", | 8269144 | 8269144A | 9 | 5 days |
