Model# WCVH6800J2WW

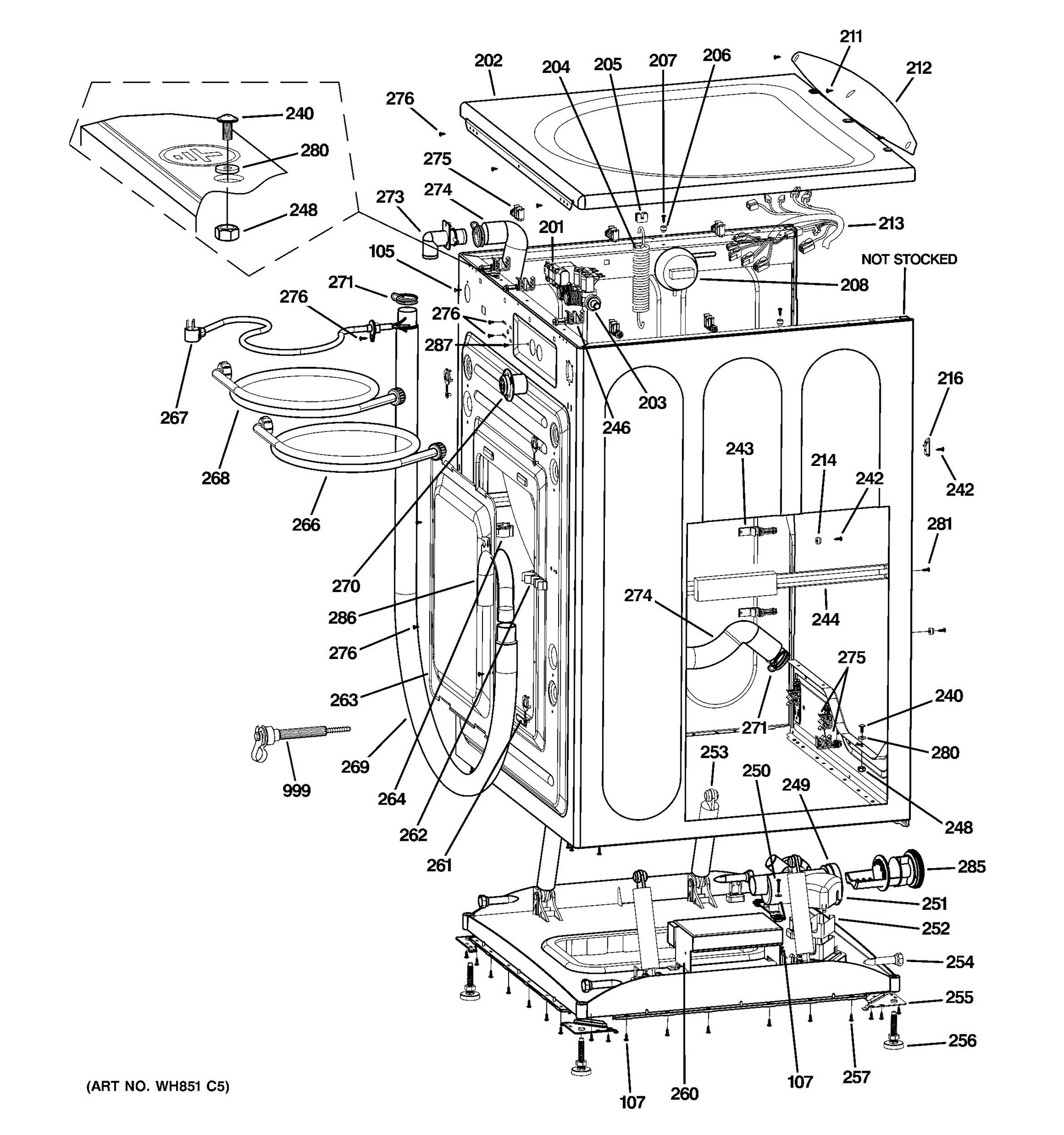

The image and part list below are associated with the component: CABINET & TOP PANEL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW_ST3.5 X 11 | WH02X10181 | 105 | 1 days | ||
|
SCREW_ST4*13 | WH02X10183 | 107 | 1 days | ||
|
EMI_FILTER | WH41X10123 | WH41X10301 | 201 | 1 days | |
|
TOP PANEL ASM WW | WH44X10173 | 202 | 1 days | ||
|
TOP PANEL ASM BB | WH44X10184 | 202 | 11 days | ||
|
TOP PANEL ASM MS | WH44X10193 | 202 | 11 days | ||
|
TOP PANEL ASM MR | WH44X10197 | 202 | - |
|
|
|
TOP PANEL ASM MV | WH44X10221 | 202 | 1 days | ||
|
WATER VALVE | WH13X10023 | 203 | 1 days | ||
|
SUSPENSION_SPRING | WH05X10009 | 204 | 1 days | ||
|
SPRING_HANGER | WH01X10251 | 205 | 1 days | ||
|
TOP_PANEL_PIN | WH01X10252 | 206 | 11 days | ||
|
SCREW_ST 4.2X14 | WH02X10187 | 207 | 11 days | ||
|
PRESSURE_SWITCH | WH12X10307 | 208 | 11 days | ||
|
SCREW ST4X11 | WH02X10188 | 211 | 1 days | ||
|
TOP DECORATION COVER WW | WH44X10174 | 212 | 1 days | ||
|
TOP DECORATION COVER BB | WH44X10183 | 212 | 1 days | ||
|
TOP DECORATION COVER MS | WH44X10192 | 212 | 11 days | ||
|
TOP DECORATION COVER MR | WH44X10196 | 212 | 11 days | ||
|
TOP DECOR COVER MV | WH44X10220 | 212 | 11 days | ||
|
WIRE_HARNESS | WH19X10047 | 213 | 1 days | ||
|
FRONT_PANEL_PIN | WH01X10253 | 214 | 11 days | ||
|
FRONT_PANEL_HANGER | WH16X10073 | 216 | 1 days | ||
|
SCREW_M5*12 | WH02X10198 | 240 | 1 days | ||
|
SCREW ST4.2*13 | WH02X10182 | 242 | 11 days | ||
|
WIRE_CATCH | WH16X10074 | 243 | 11 days | ||
|
SIDE_BRACKET | WH16X10075 | 244 | 11 days | ||
|
WIRE_CATCH | WH16X10076 | 246 | 11 days | ||
|
NUT_M5 | WH02X10199 | 248 | 11 days | ||
|
PUMP | WH23X10028 | 249 | 1 days | ||
|
SCREW_WASHER_ST4*25 | WH02X10200 | 250 | 1 days | ||
|
WIRING_COVER | WH44X10176 | 251 | 11 days | ||
|
INVERTER CONNECTORS SHIE | WH44X10177 | 252 | 1 days | ||
|
DAMPER - SHOCK | WH01X10425 | 253 | 1 days | ||
|
DAMPER PIN | WH01X10261 | 254 | 1 days | ||
|
CONNER BRACKET | WH16X10077 | 255 | 1 days | ||
|
LEG ASM | WH46X10130 | 256 | 1 days | ||
|
SCREW_ST4.2*13 | WH02X10201 | 257 | 11 days | ||
|
INVERTER | WH12X10454 | WH12X10519 | 260 | 1 days | |
|
SHIPPING_SCREW_COVER | WH44X10178 | 261 | 1 days | ||
|
OUTSIDE_DRAIN_HOSE_CATCH | WH01X10262 | 262 | 11 days | ||
|
CABINET_REAR_COVER | WH46X10132 | 263 | 1 days | ||
|
INSIDE_DRAIN_HOSE_CATCH | WH01X10263 | 264 | 11 days | ||
|
MAIN_WATER_HOSE_COLD | WH41X10215 | 266 | 1 days | ||
|
POWER_CORD | WH19X10046 | 267 | 1 days | ||
|
MAIN_WATER_HOSE_HOT | WH41X10216 | 268 | 1 days | ||
|
OUTSIDE_DRAIN_HOSE | WH41X10126 | 269 | 1 days | ||
|
VENT_HOSE_COUPLING | WH01X10264 | 270 | 11 days | ||
|
DRAIN_HOSE_CLAMP | WH01X10265 | 271 | 1 days | ||
|
DRAIN_HOSE_COUPLING | WH01X10266 | 273 | 1 days | ||
|
INSIDE_DRAIN_HOSE | WH41X10127 | 274 | 1 days | ||
|
WIRE_CATCH_1 | WH16X10078 | 275 | 11 days | ||
|
SCREW_ST4.2*11 | WH02X10203 | 276 | 1 days | ||
|
LOCK WASHER | WH02X10218 | 280 | 1 days | ||
|
SCREW_ST4*10 | WH02X10219 | 281 | 1 days | ||
|
PUMP FILTER | WH23X10029 | WH11X34741 | 285 | 11 days | |
|
U SHAPE DRAIN HOSE | WH41X10133 | 286 | 1 days | ||
|
SCREW_ST4.2*13 | WH02X10220 | 287 | 11 days | ||
|
KIT - SHIPPING BOLT | WH49X10047 | 999 | 1 days |
