Model# VTN1000Q

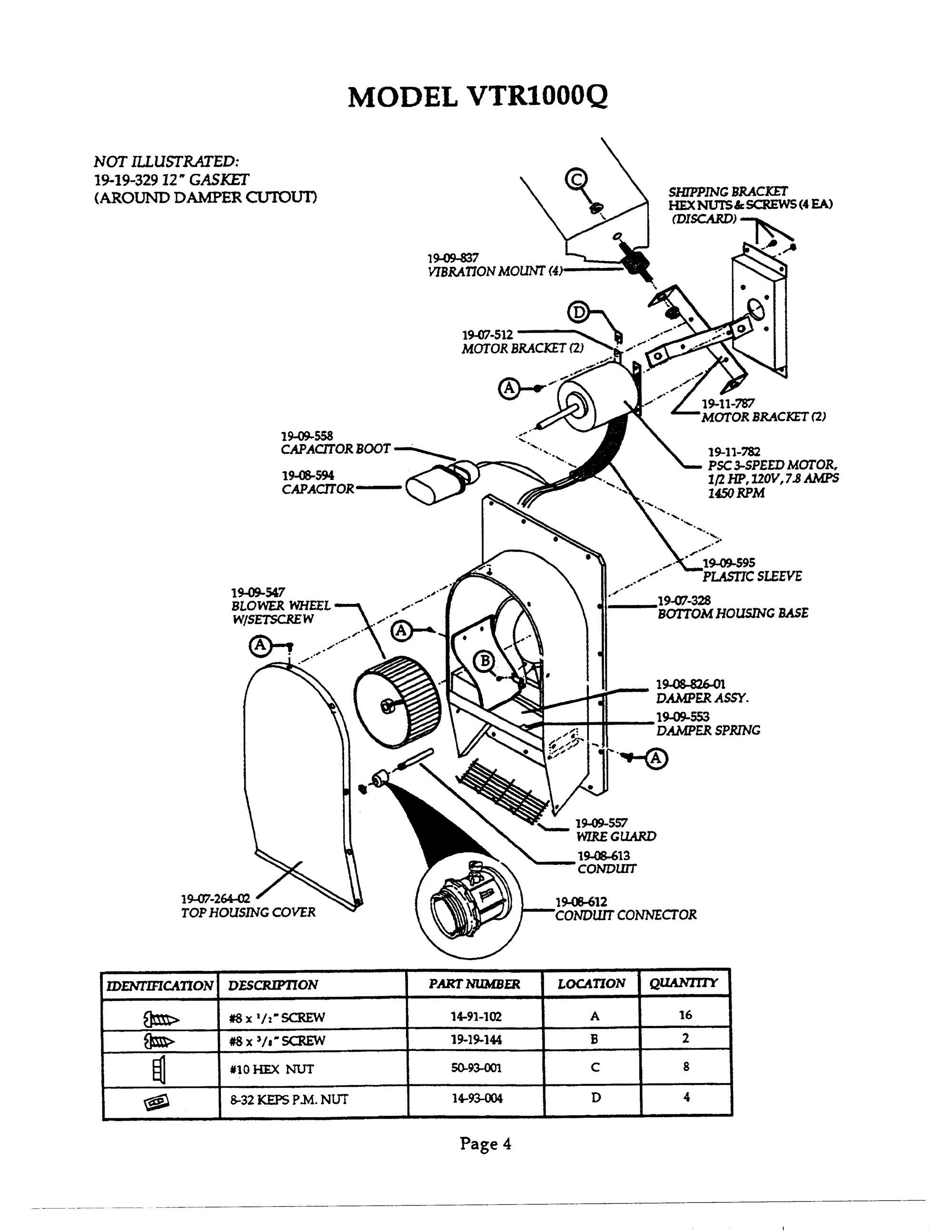

The image and part list below are associated with the component: 04 - MODEL VTR1000Q:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
NLA (Foam tape, 1/2 x 1/8, pvc, #V810) | 19-19-329 | 1 | 11 days | ||
|
Wheel, blower | 19-09-547 | 00486903 | 10 | 5 days | |
|
Damper door assy.VTR1000Q | 19-08-826-01 | 00487052 | 11 | 5 days | |
|
Spring | 19-09-553 | 00414723 | 12 | 5 days | |
|
Guard, wire | 19-09-557 | 00484733 | 13 | 5 days | |
|
Conduit, 1/2 in. thinwall, 6 in. long | 19-08-613 | 00368553 | 14 | 5 days | |
|
Cover, top, no finish, VTR1000Q/VR1000 | 19-07-264-02 | 00487046 | 15 | 5 days | |
|
Fitting, 1/2 in. conduit | 19-08-612 | 00415442 | 16 | 11 days | |
|
Vibration mount | 19-09-837 | 00414730 | 2 | 5 days | |
|
Bracket, motor support | 19-07-512 | 00424386 | 3 | 5 days | |
|
Bracket, motor, VTR1000Q | 19-11-787 | 00487061 | 4 | 5 days | |
|
Motor, VTR1000Q | 19-11-782 | 00143086 | 5 | 5 days | |
|
Boot, capacitor | 19-09-558 | 00414724 | 6 | 5 days | |
|
Capacitor, 15 mfd., 370 VAC | 19-08-594 | 00414716 | 7 | 5 days | |
|
Sleeving, black vinyl, 0.032 in. | 19-09-595 | 00411199 | 8 | 11 days | |
|
Baseplate assy. | 19-07-328 | 00219123 | 9 | 11 days | |
|
Screw, #8a x 3/8 ph pn hdzinc | 14-91-102 | 00189250 | A | 5 days | |
|
Screw, #6 x 3/8, ph pn hd | 19-19-144 | B | 11 days | ||
|
Locknut, #31 wlf 1420 whiz | 50-93-001 | 00414787 | C | 5 days | |
|
Nut, 8-32 keps zinc | 14-93-004 | D | 11 days |
