Model# TMH45P-01

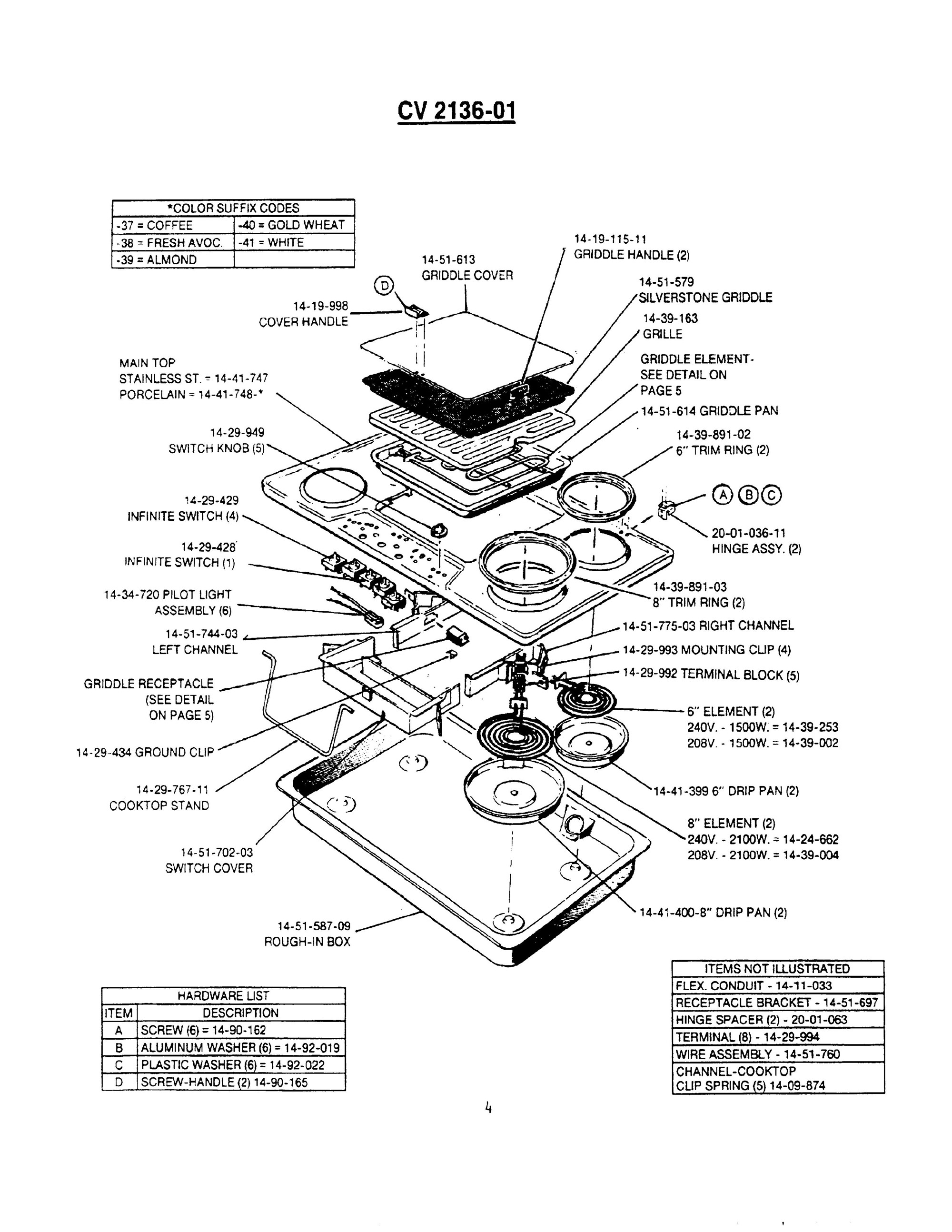

The image and part list below are associated with the component: 06 - CV2136-01:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Kit, griddle handle & SCRS | 14-19-998 | - | 11 days | ||
|
Switch, infinite | 14-29-428 | 00486954 | - | 0 days | |
|
Cooktop, no finish, stand | 14-29-767-11 | 00484730 | - | 11 days | |
|
Knob, infinite switch | 14-29-949 | 35-00-277 | - | 11 days | |
|
Terminal block | 14-29-992 | 00414192 | - | 0 days | |
|
Element, 208V | 14-39-004 | 00486010 | - | 11 days | |
|
Grill | 14-39-163 | 00484852 | - | 0 days | |
|
Trim ring, 8 in. | 14-39-891-03 | 00484633 | - | 0 days | |
|
Drip pan | 14-41-399 | 00487037 | - | 0 days | |
|
Drip pan, 8 in. | 14-41-400 | 00487038 | - | 0 days | |
|
Switch plate, steel, 36 | 14-41-748 | - | 11 days | ||
|
SILVERSTONE GRIDDLE | 14-51-579 | - | 11 days | ||
|
Rough-in box, enamel, TMH/CV2136 | 14-51-587-09 | - | 11 days | ||
|
Griddle pan | 14-51-614 | 00486166 | - | 0 days | |
|
SWITCH COVER | 14-51-702-03 | - | 11 days | ||
|
Channel wire assy., LF, CV | 14-51-744-03 | 00486130 | - | 11 days | |
|
Wire harness, CV2136P | 14-51-760 | 00484596 | - | 0 days | |
|
Spacer back | 20-01-063 | - | 11 days | ||
|
Clip, spring | 14-09-874 | 00412293 | - | 0 days | |
|
Conduit, flex, 1/2 in. x 36 in. | 14-11-033 | 00485343 | - | 11 days | |
|
8`` ELEMENT | 14-24-662 | - | 11 days | ||
|
Switch, infinite | 14-29-429 | 00414604 | - | 0 days | |
|
GROUND CLIP | 14-29-434 | - | 11 days | ||
|
Clip, mounting | 14-29-993 | 00416254 | - | - |
|
|
Trim ring, 6 in. | 14-39-891-02 | 00484632 | - | 0 days | |
|
Element, surface, 2100W | 14-41-747 | 00484791 | - | 0 days | |
|
Cover, griddle, CV136 | 14-51-613 | 00486134 | - | 0 days | |
|
Bracket, receptacle | 14-51-697 | - | 11 days | ||
|
LEFT CHANNEL | 14-51-775-03 | - | 11 days | ||
|
Hinge assy. | 20-01-036-11 | - | 11 days | ||
|
Element, 240V, 1250W | 14-39-253 | 00484788 | - | 0 days | |
|
Terminal, Amp# 640748-1 | 14-29-994 | 00189911 | - | 0 days | |
|
Handle, griddle, chrome | 14-19-115-11 | 00411398 | - | 0 days | |
|
NLA (was element, 6 in., 208V, 1500W | 14-39-002 | 14-29-942 | - | 11 days | |
|
NLA (kit, pilot light assy. | 14-34-720 | 00413018 | - | 11 days | |
|
NLA , use 411093 (screw 8-32 x 3/8 pan hd, ph, zinc | 14-90-162 | 00411093 | A | 0 days | |
|
Washer, 11/64 i.d. x 3/8 o.d., aluminum | 14-92-019 | 00411321 | B | 11 days | |
|
Washer, nylon | 14-92-022 | 00413485 | C | 0 days | |
|
Screw | 14-90-165 | 00189244 | D | 0 days |
