Model# TMH45P-01

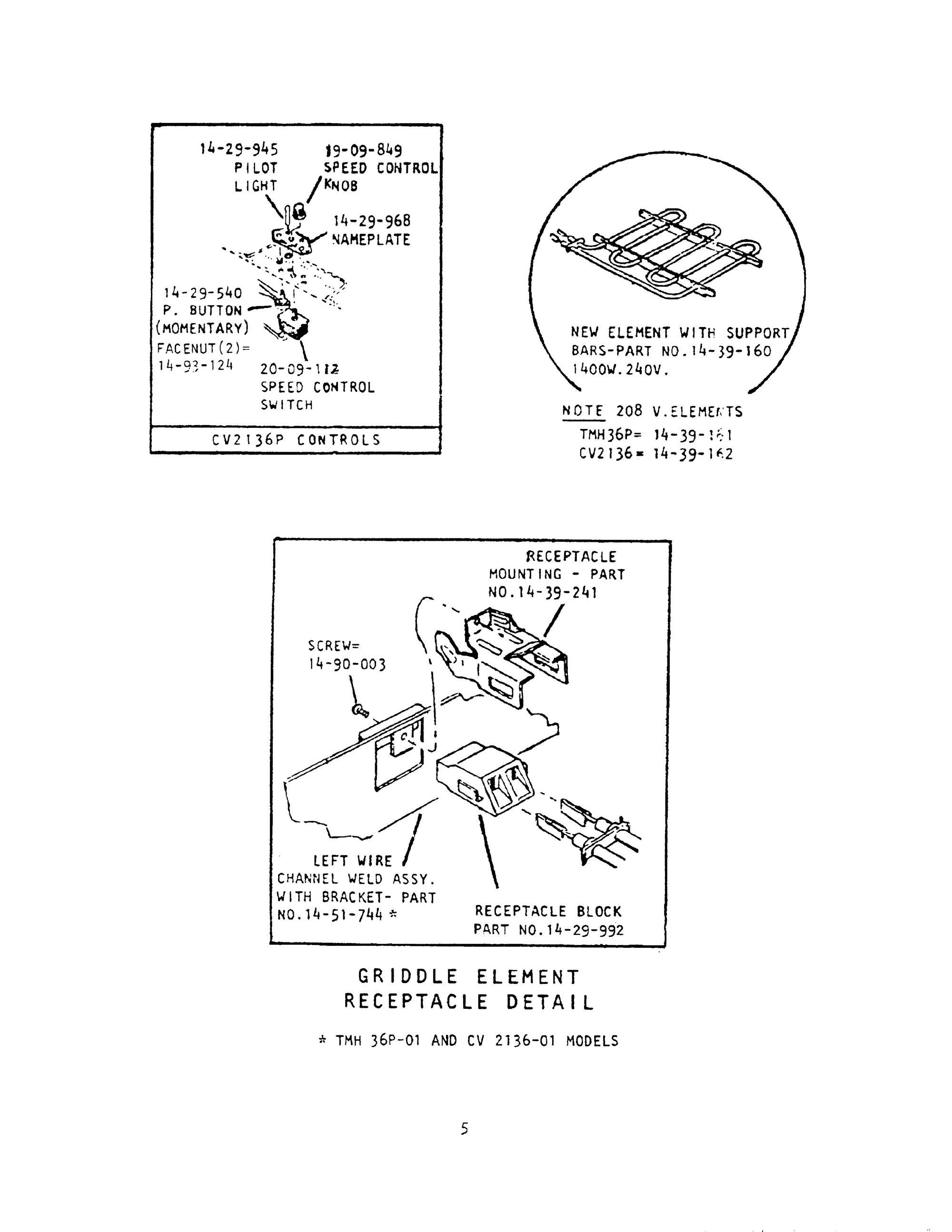

The image and part list below are associated with the component: 07 - GRIDDLE ELEMENT RECEPTACLE:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Nameplate, CV2136 | 14-29-968 | - | 11 days | ||
|
Terminal block | 14-29-992 | 00414192 | - | 5 days | |
|
Clip | 14-39-241 | 00416261 | - | 5 days | |
|
Channel wire assy., LF, CV | 14-51-744 | 00486130 | - | 11 days | |
|
Nut, knurled | 14-93-124 | 00413514 | - | 11 days | |
|
Switch, momentary | 14-29-540 | 00414466 | - | 5 days | |
|
Pilot light, CV/THM | 14-29-945 | 00413018 | - | 11 days | |
|
Element, griddle | 14-39-160 | 00484608 | - | 11 days | |
|
ELEMENT | 14-39-161 | - | 11 days | ||
|
Element, griddle | 14-39-162 | 00486023 | - | 5 days | |
|
Knob, speed control | 19-09-849 | 00414884 | - | 5 days | |
|
Switch, speedcontrol | 20-09-112 | 00414431 | - | 5 days | |
|
Screw, #6-32 x 1/4 phpn zinc type c | 14-90-003 | 00411080 | - | 5 days |
