Model# TFX26KPDAWW

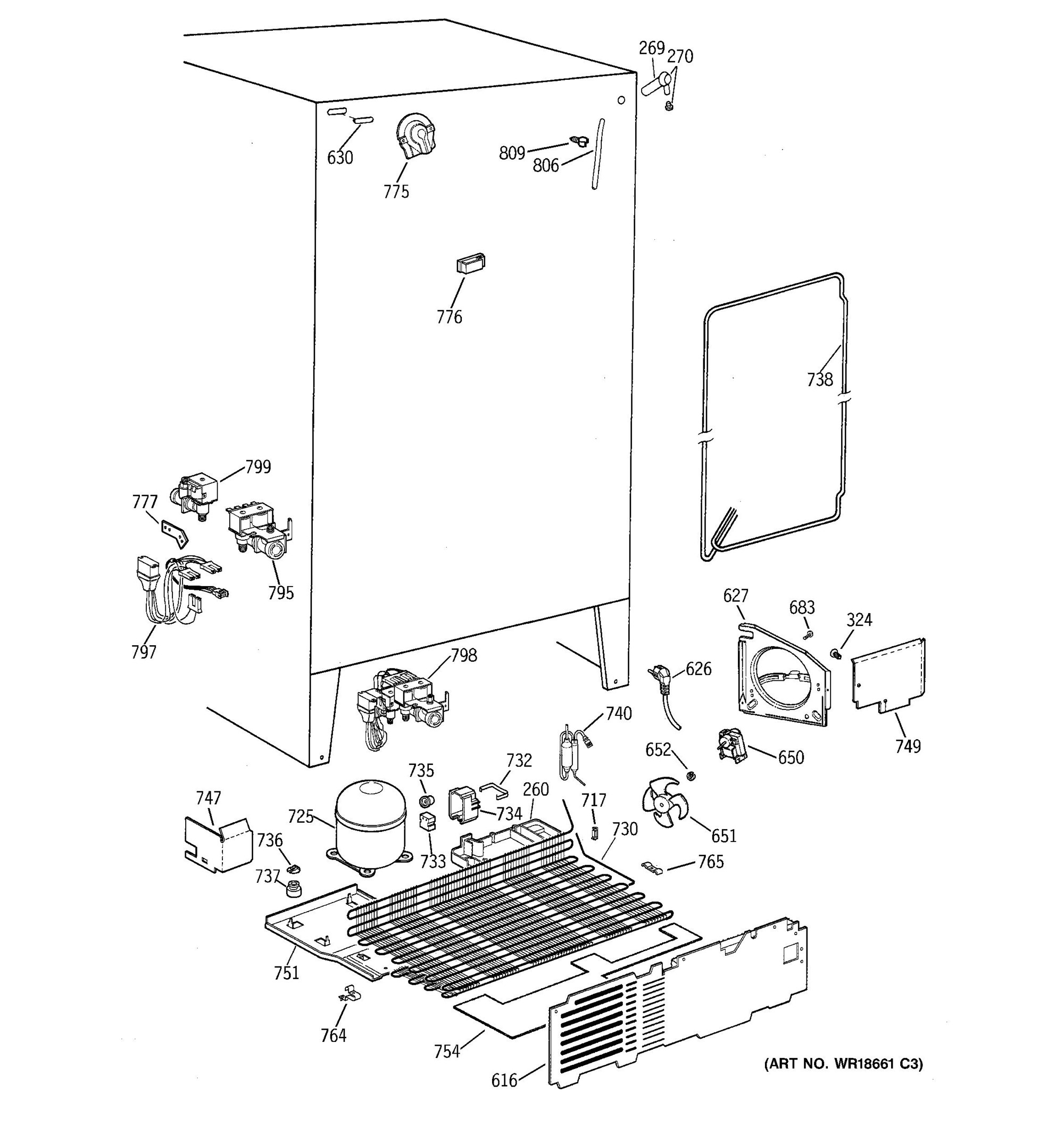

The image and part list below are associated with the component: UNIT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PAN WATER DISPOSAL | WR32X1427 | 260 | 11 days | ||
|
TUBE WATER FILL | WR02X8668 | WR2X8668 | 269 | 3 days | |
|
GROMMET WATER FILL | WR02X9153 | WR2X8474 | 270 | 3 days | |
|
CLAMP HOSE | WR01X5223 | WR2X4754 | 270 | 3 days | |
|
PLUG BUTTON SM WH | WR02X7051 | WR2X7051 | 324 | 3 days | |
|
PLUG BUTTON | WR02X7069 | WR2X7069 | 324 | 11 days | |
|
COVER ACCESS ASM | WR82X10042 | WR82X389 | 616 | 11 days | |
|
CLAMP CABLE | WR01X5278 | 626 | 11 days | ||
|
CORD POWER ASM | WR23X0108 | WR23X10300 | 626 | 3 days | |
|
HOUSING COND FAN | WR17X10449 | 627 | 11 days | ||
|
PLUG BUTTON WH | WR02X4097 | WR2X4097 | 630 | 11 days | |
|
MOTOR COND FAN | WR60X10024 | 650 | 3 days | ||
|
BLADE COND FAN ASM | WR60X10034 | WR60X10030 | 651 | 3 days | |
|
RING COMP COND FAN BLADE | WR02X10323 | 652 | 3 days | ||
|
SCR 8-32 TT PT 5/8 NS | WR01X10127 | 683 | 11 days | ||
|
CLIP COND | WR02X10335 | 717 | 11 days | ||
|
COMP REPL KIT | WR87X10010 | WR87X10226 | 725 | 3 days | |
|
COND ASM REPL | WR84X0207 | WR84X207 | 730 | 11 days | |
|
CLAMP RELAY COVER | WR02X7226 | WR2X7226 | 732 | 11 days | |
|
PTCR | WR07X0277 | WR07X10099 | 733 | 3 days | |
|
COVER RELAY | WR02X7834 | WR2X7834 | 734 | 11 days | |
|
OVERLOAD | WR08X10006 | 735 | 3 days | ||
|
CLIP COMP MTNG | WR02X8583 | WR2X8583 | 736 | 3 days | |
|
GROMMET | WR02X10099 | WR02X22869 | 737 | 11 days | |
|
CLIP COND LOOP | WR02X7064 | WR2X7064 | 738 | 3 days | |
|
TUBE COND LOOP ASM | WR84X0168 | WR84X168 | 738 | 11 days | |
|
DRYER BIFURCATED XH9 | WR86X0096 | WR86X25269 | 740 | 11 days | |
|
BAFFLE SIDE ASM | WR17X10427 | 747 | 11 days | ||
|
BAFFLE SIDE DISCH ASM | WR17X4148 | 749 | 11 days | ||
|
PLATE COMP MTG | WR17X10204 | WR17X10202 | 751 | 11 days | |
|
COND FLOOR BAFFLE | WR82X10067 | 754 | 11 days | ||
|
CLIP, COND MNT | WR02X9000 | WR2X9000 | 764 | 11 days | |
|
CLIP COND | WR01X1985 | WR1X1972 | 765 | 11 days | |
|
COVER WATER LINE | WR02X10047 | WR17X13124 | 775 | 11 days | |
|
CLAMP TUBE | WR02X10048 | WR02X10522 | 776 | 3 days | |
|
BRACKET WATER VALVE | WR02X10370 | 777 | 3 days | ||
|
WATER VALVE ASM | WR57X10023 | 795 | 3 days | ||
|
HARNESS | WR23X10108 | 797 | 3 days | ||
|
BRACKET & VALVE ASM | WR57X10026 | 798 | 3 days | ||
|
WATER VALVE ASM | WR57X10024 | 799 | 3 days | ||
|
WATER LINE | WR17X2107 | WR17X11349 | 806 | 3 days | |
|
FASTENER WATER TUBE | WR01X1936 | WR1X1936 | 809 | 3 days |
