Model# TFF20DBB

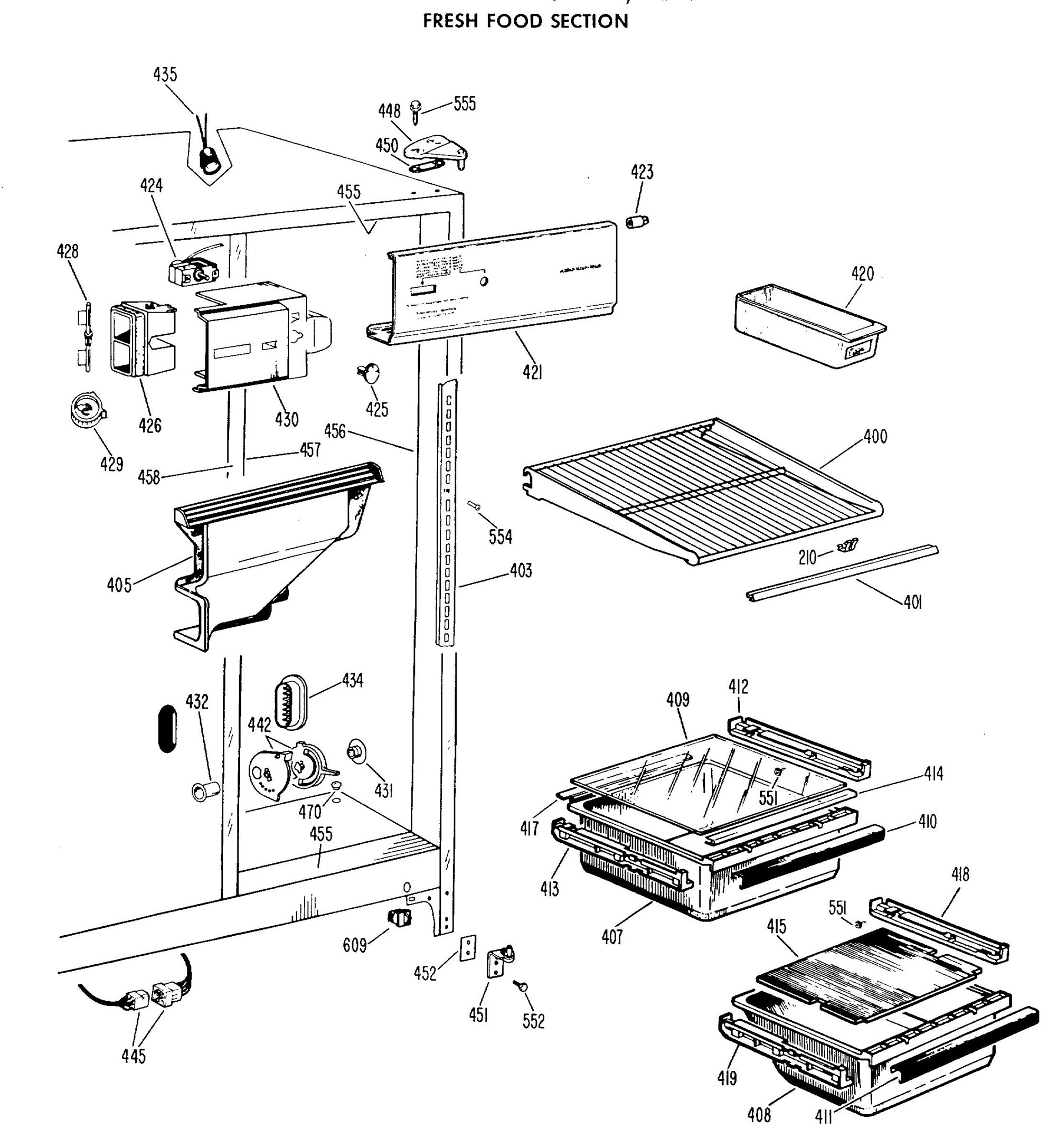

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CLIP SHELF TRIM | WR02X4944 | WR2X4944 | 210 | - |
|
|
SHELF CANT WIRE ASM | WR71X5768 | 400 | 11 days | ||
|
TRIM SHELF | WR38X0956 | 401 | 11 days | ||
|
TRACK CANT SHELF | WR72X5041 | WR72X189 | 403 | 2 days | |
|
DUCT AIR & GASKET ASM FF | WR17X1382 | 405 | 11 days | ||
|
TAPE FOAM | WR14X0264 | WR14X264 | 405 | 2 days | |
|
VEGETABLE PAN | WR32X0629 | WR32X5137 | 407 | 11 days | |
|
MEAT PAN | WR32X0630 | WR32X1177 | 408 | 2 days | |
|
COVER PAN GLASS | WR32X0654 | WR32X654 | 409 | 11 days | |
|
HANDLE PAN VEG. | WR17X1559 | 410 | 11 days | ||
|
HANDLE PAN MEAT | WR17X1560 | 411 | 11 days | ||
|
SLIDE PAN-R. SIDE | WR02X6012 | WR72X194 | 412 | 11 days | |
|
SLIDE PAN-L. SIDE | WR02X6013 | WR2X6013 | 413 | 11 days | |
|
GASKET PAN COVER FRT | WR14X5111 | 414 | 11 days | ||
|
COVER PAN | WR32X5173 | 415 | 11 days | ||
|
GASKET PAN COVER REAR | WR14X5108 | 417 | 11 days | ||
|
SLIDE PAN-R. SIDE | WR02X6014 | WR72X208 | 418 | 2 days | |
|
SLIDE PAN-L. SIDE | WR02X6015 | WR72X209 | 419 | 2 days | |
|
BUCKET EGG | WR32X0653 | WR32X1560 | 420 | 2 days | |
|
LIGHT SHIELD FF | WR17X1571 | WR17X2122 | 421 | 11 days | |
|
SUPPORT SHIELD TOP | WR02X6347 | WR2X6347 | 423 | 2 days | |
|
SUPPORT SHIELD-BTM. | WR02X6350 | WR2X5031 | 423 | 11 days | |
|
CONTROL TEMP | WR09X5131 | WR9X442 | 424 | 2 days | |
|
WHEEL CONTROL | WR02X4943 | WR2X9216 | 425 | 2 days | |
|
HOUSING NOZZLE | WR02X3880 | WR2X8514 | 426 | 11 days | |
|
INSUL FOAM NOZZLE | WR02X4834 | 426 | 11 days | ||
|
GASKET FOAM | WR14X0271 | WR14X462 | 426 | 2 days | |
|
SHAFT DAMPER | WR02X4835 | WR2X4835 | 428 | 2 days | |
|
KNOB DAMPER | WR02X4836 | WR2X4836 | 429 | 11 days | |
|
HOUSING CONT | WR17X1412 | 430 | - |
|
|
|
CAP MULLION DUCT | WR02X4799 | WR2X4799 | 431 | 11 days | |
|
DUCT MULLION | WR02X3886 | 432 | 11 days | ||
|
DUCT AIR RETURN ASM FF | WR02X4542 | WR2X4542 | 434 | - |
|
|
SOCKET LAMP | WR02X4049 | WR2X4049 | 435 | 11 days | |
|
DAMPER ASM. | WR02X7035 | WR17X10060 | 442 | 2 days | |
|
R-E-D SERVICE PKG. | WR49X0233 | WR49X233 | 445 | 11 days | |
|
HINGE TOP ASM | WR13X0496 | 448 | 11 days | ||
|
SHIM HINGE TOP | WR02X4194 | WR2X4194 | 450 | 2 days | |
|
HINGE BTM PIN & CAM ASM | WR13X0552 | WR49X5124 | 451 | 2 days | |
|
SHIM HINGE BTM. | WR02X4497 | WR2X9443 | 452 | 2 days | |
|
SHIM HINGE BTM. | WR02X7011 | WR2X7011 | 452 | 2 days | |
|
BREAKER STRIP-TOP & BTM. | WR40X5375 | 455 | 11 days | ||
|
RETAINER BREAKER-BTM FF | WR02X4598 | WR2X4598 | 456 | 11 days | |
|
RETNR BRKR-HINGE & MULL | WR02X5926 | 456 | 11 days | ||
|
BREAKER STRIP-HINGE SIDE | WR40X5376 | 456 | 11 days | ||
|
RETAINER BREAKER | WR02X4597 | 456 | 11 days | ||
|
BREAKER STRIP-FF MULLION | WR40X1575 | 457 | 11 days | ||
|
MULLION & TAB ASM(WHITE) | WR40X1576 | 458 | 11 days | ||
|
PLUG BUTTON | WR02X3139 | WR2X3139 | 470 | 11 days | |
|
SCR 8-18 AB RNDW 5/8 SS | WZ04X0244 | 551 | 11 days | ||
|
SCR 12-24 HXW 1 1/64 SSP | WR01X1587 | WR1X1249D | 552 | 2 days | |
|
SCREW | WR01X1483 | WR1X1483 | 554 | - |
|
|
|
SCREW | WR01X1249 | WR1X1249D | 555 | 2 days | |
|
SWITCH LIGHT WH | WR23X0193 | WR23X37285 | 609 | 11 days |
