Model# TFB26PPDAWW

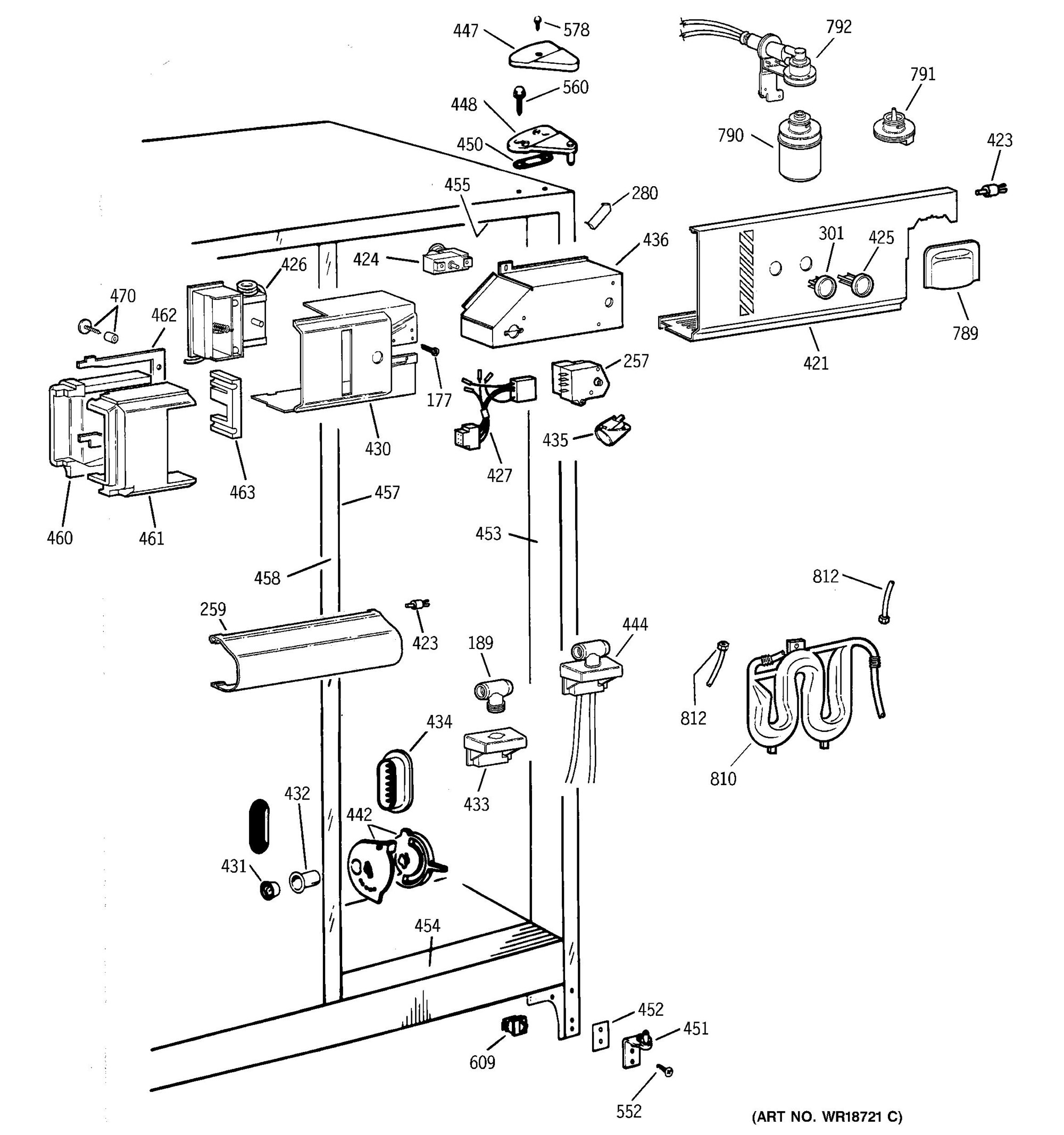

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW 8-18 A HX 1/2 S | WR01X5034 | WZ4X338D | 177 | 2 days | |
|
SOCKET LIGHT | WR02X9243 | WR2X9243 | 189 | 11 days | |
|
CONTROL DEFROST | WR09X0489 | WR9X489 | 257 | 2 days | |
|
SHIELD LIGHT LOWER FF | WR17X3909 | 259 | 2 days | ||
|
CAP CORNER OC (WH) | WR02X8518 | WR2X8518 | 280 | 11 days | |
|
KNOB TEMP CONT | WR02X10429 | 301 | 2 days | ||
|
SHIELD LIGHT FF | WR17X10555 | 421 | 2 days | ||
|
SUPPORT SHIELD TOP | WR02X6347 | WR2X6347 | 423 | 2 days | |
|
GROMMET SUPPT LT SHIELD | WR02X10050 | 423 | 2 days | ||
|
SLEEVE VINYL | WR02X8914 | WR02X10031 | 424 | 2 days | |
|
CONTROL TEMP | WR09X0599 | WR9X599 | 424 | 2 days | |
|
KNOB TEMP CONT | WR02X10430 | 425 | 11 days | ||
|
DAMPER CONTROL FF | WR09X0522 | WR9X522 | 426 | 2 days | |
|
HARNESS CONTROL MOD | WR23X0489 | WR23X316 | 427 | 2 days | |
|
HOUSING CONTROL | WR17X3416 | 430 | 11 days | ||
|
CAP MULLION DUCT | WR02X9299 | WR2X9299 | 431 | 2 days | |
|
DUCT MULLION | WR02X8654 | WR2X8654 | 432 | 2 days | |
|
HOUSING LAMP SOCKET | WR02X9239 | WR2X9239 | 433 | 2 days | |
|
DUCT AIR RETURN ASM FF | WR02X9431 | WR2X9431 | 434 | 2 days | |
|
LAMP 40W 120V | STD372402 | 435 | 11 days | ||
|
LAMP 60W APPL | 60A | 40A15 | 435 | 11 days | |
|
SOCKET TERM BK | WR02X9391 | WR2X9391 | 435 | 2 days | |
|
BRACKET CONTROL MOD | WR02X8909 | WR2X8909 | 436 | 11 days | |
|
CONTROL MEAT PAN ASM | WR02X9432 | WR2X9432 | 442 | 2 days | |
|
HOUSING LIGHT LWR ASM | WR23X10129 | 444 | 11 days | ||
|
HANDLE DOOR FF BQ | WR02X10454 | 447 | 11 days | ||
|
CAP HINGE FZ WH | WR02X10453 | 447 | 11 days | ||
|
HINGE TOP ASM | WR13X0659 | WR13X659 | 448 | 2 days | |
|
SHIM HINGE TOP | WR02X4194 | WR2X4194 | 450 | 2 days | |
|
HINGE BTM PIN & CAM ASM | WR13X10020 | 451 | 2 days | ||
|
SHIM HINGE BTM. | WR02X4497 | WR2X9443 | 452 | 2 days | |
|
BREAKER STRIP R/S FF | WR40X1734 | 453 | 11 days | ||
|
BREAKER STRIP BTM FF | WR40X1735 | 454 | 11 days | ||
|
BREAKER STRIP TOP FF | WR40X1736 | 455 | 11 days | ||
|
BREAKER STRIP L/S FF | WR40X10029 | 457 | 11 days | ||
|
BRACKET MULLION TOP | WR02X9376 | WR2X8721 | 458 | 11 days | |
|
CLIP MULLION BTM | WR02X10334 | 458 | 11 days | ||
|
MULLION WH | WR40X1738 | 458 | 11 days | ||
|
DUCT AIR REAR | WR02X8911 | WR2X8911 | 460 | 2 days | |
|
SCR 8-18 AB HXW 1/2 S | WZ06X0136 | WZ6X136 | 461 | 2 days | |
|
DUCT AIR FRONT | WR02X8910 | WR2X8910 | 461 | 2 days | |
|
GASKET AIR DUCT | WR14X0442 | WR14X442 | 462 | 2 days | |
|
INSULATION BELLOWS | WR82X0338 | WR82X338 | 463 | 2 days | |
|
SPACER SCREW | WR01X1929 | WR1X1929 | 470 | 2 days | |
|
GASKET PAN CVR REAR | WR14X0465 | WR14X465 | 470 | 2 days | |
|
SCR 12-24 TT IH .811 S | WR01X10034 | WR01X10600 | 552 | 2 days | |
|
SCREW | WR01X2140 | WR01X10204 | 560 | 2 days | |
|
SCREW 8-32 X 3/8 | WZ02X0464 | WZ2X464D | 578 | 2 days | |
|
SWITCH LIGHT | WR23X10130 | WR23X37285 | 609 | 11 days | |
|
COVER FILTER | WR17X10132 | 789 | 2 days | ||
|
CANISTER WATER FILTER | FXRC | ADAPTER | 790 | 2 days | |
|
FILTER PLUG ASM | WR02X10173 | 791 | 2 days | ||
|
FILTER HEAD & BRKT ASM | WR17X10450 | 792 | 2 days | ||
|
WATER TANK DISP ASM | WR17X10507 | 810 | 2 days | ||
|
TUBE PLASTIC | WR17X2891 | 812 | 2 days |
