Model# TCX18PACBRWW

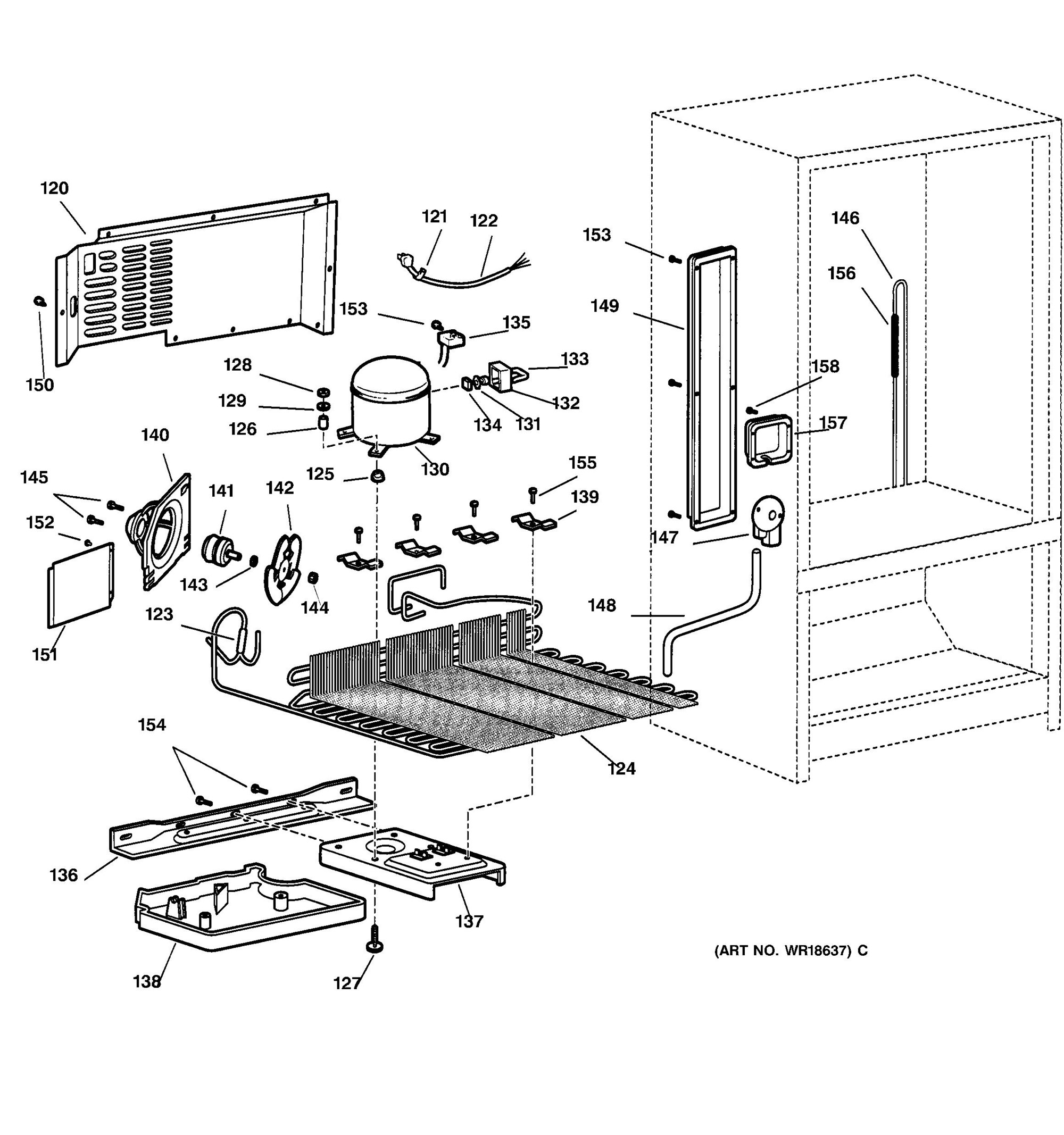

The image and part list below are associated with the component: UNIT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COVER, ACCESS | WR02X10219 | 120 | 11 days | ||
|
CLAMP | WR02X10076 | 121 | 11 days | ||
|
HARNESS, CORD - COMPRESS | WR23X10087 | 122 | 11 days | ||
|
DRIER | WR86X10006 | WR86X10018 | 123 | 2 days | |
|
CONDENSER ASM. | WR84X10015 | 124 | 11 days | ||
|
GROMMET, COMPRESSOR MTG. | WR02X10220 | 125 | 11 days | ||
|
SLEEVE, COMPRESSOR | WR02X10221 | 126 | 11 days | ||
|
BOLT | WR01X2156 | WR1X2156 | 127 | 11 days | |
|
NUT | WR01X2155 | 128 | 11 days | ||
|
WASHER | WR01X2154 | 129 | 11 days | ||
|
COMPRESSOR REPL KIT | WR87X10030 | WR87X20798 | 130 | 2 days | |
|
RELAY (PTCR) | WR07X0240 | WR07X10055 | 131 | 2 days | |
|
COVER RELAY | WR02X7834 | WR2X7834 | 132 | 11 days | |
|
CLAMP RELAY COVER | WR02X7226 | WR2X7226 | 133 | 11 days | |
|
OVERLOAD | WR08X0169 | WR8X169 | 134 | 2 days | |
|
CAPACITOR | WR62X10012 | 135 | 2 days | ||
|
RAIL, REAR - COMPRESSOR | WR17X10407 | 136 | 11 days | ||
|
PLATE, COMPRESSOR MTG. | WR17X10408 | 137 | 11 days | ||
|
PAN WATER DISPOSAL | WR32X10037 | WR32X10455 | 138 | 2 days | |
|
CLIP, COND MNT | WR02X9000 | 139 | 11 days | ||
|
HOUSING, CONDENSER FAN | WR17X10409 | 140 | 11 days | ||
|
MOTOR, CONDENSER FAN | WR60X0225 | WR60X225 | 141 | 2 days | |
|
BLADE COND FAN ASM | WR60X0275 | WR60X275 | 142 | 2 days | |
|
WASHER, CUSHION | WR01X1714 | WR1X1714 | 143 | 2 days | |
|
NUT COND. MOTOR | WR01X1715 | WR1X1715 | 144 | 2 days | |
|
SCREW FAN MOTOR | WR01X1716 | WR1X1716 | 145 | 11 days | |
|
LINES, SUCTION & CAP | WR02X10222 | 146 | 11 days | ||
|
DRAIN, GROMMET S | WR02X10223 | 147 | 11 days | ||
|
CLAMP, DRAIN TUBE | WR01X10079 | WR2X9269 | 148 | 11 days | |
|
TUBE, DRAIN EXTENSION | WR02X10224 | 148 | 11 days | ||
|
COVER, CABINET HX | WR02X10225 | 149 | 11 days | ||
|
SCREW, ACCESS | WR01X10080 | WD2X5166 | 150 | 2 days | |
|
BAFFLE, CONDENSER FAN | WR02X10226 | 151 | 11 days | ||
|
FASTENER, BAFFLE | WR01X10081 | WD2X425 | 152 | 2 days | |
|
SCREW | WR01X10082 | 153 | 11 days | ||
|
SCREW | WR01X10083 | 154 | 11 days | ||
|
SCREW, CONDENSER | WR01X10084 | 155 | 11 days | ||
|
INSULATION | WR82X10056 | 156 | 11 days | ||
|
COVER | WR02X10227 | 157 | 11 days | ||
|
INSULATION, COVER | WR02X10228 | 157 | 11 days | ||
|
SCREW | WR01X10085 | WR01X10082 | 158 | 11 days |
