Model# TBX25PASLRAA

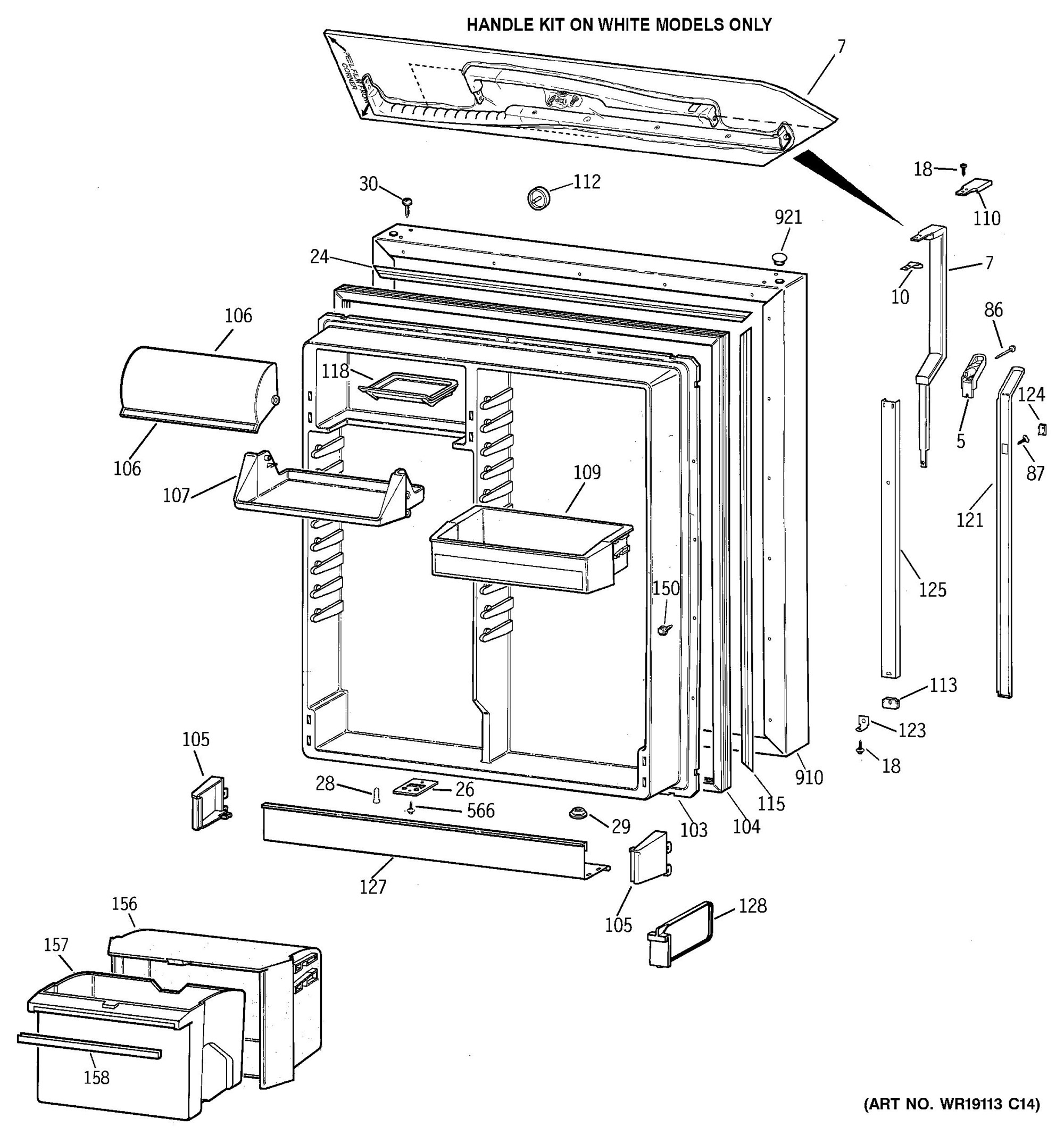

The image and part list below are associated with the component: FRESH FOOD DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SHIM HANDLE DOOR | WR02X8002 | WR2X8002 | 10 | 1 days | |
|
DOOR INNER FF | WR77X0605 | WR77X605 | 103 | 11 days | |
|
GASKET O.DOOR FF WHITE | WR24X0437 | WR24X437 | 104 | 1 days | |
|
CAP SHELF FRONT LH | WR02X8699 | WR2X8699 | 105 | 1 days | |
|
CAP SHELF FRONT RH | WR02X8700 | WR2X8700 | 105 | 1 days | |
|
TRIM DAIRY DOOR | WR38X1989 | 106 | 11 days | ||
|
DOOR DAIRY (NO TRIM) | WR22X0426 | WR22X514 | 106 | 11 days | |
|
EXTENSION DAIRY | WR22X0471 | WR22X471 | 107 | 11 days | |
|
SHELF MODULE ASM | WR71X2346 | WR71X2626 | 109 | 1 days | |
|
CAP TOP | WR02X8210 | WR2X8210 | 110 | 1 days | |
|
PLUG DOOR RVSBL AD | WR02X8697 | WR2X8697 | 112 | 1 days | |
|
CAP TRIM HANDLE BTM | WR02X7980 | WR2X7980 | 113 | 1 days | |
|
RETAINER STRIP V | WR17X2137 | 115 | 11 days | ||
|
BUTTER DISH | WR19X5003 | 118 | 1 days | ||
|
INSERT HANDLE FF AD | WR12X0900 | WR12X900 | 121 | 1 days | |
|
TRIM HANDLE BTM | WR02X8009 | WR2X8009 | 123 | 11 days | |
|
PLUG BUTTON INSERT AD | WR12X0722 | WR12X722 | 124 | 1 days | |
|
CHANNEL HANDLE FF | WR12X0912 | WR12X912 | 125 | 11 days | |
|
SHELF FRONT FF FL | WR71X2491 | 127 | 11 days | ||
|
SNUGGER MODULE | WR02X7971 | WR2X7971 | 128 | 1 days | |
|
SCR 8-15 SPEC | WR01X1791 | WR1X1791D | 150 | 1 days | |
|
YOKE QUICK STORE | WR32X1321 | 156 | 11 days | ||
|
BIN QUICK STORE | WR32X1015 | 157 | 1 days | ||
|
TRIM BRIGHT | WR38X1368 | 158 | 11 days | ||
|
SCR 10-16AB FWR 3/4 SS | WR01X1726 | WR1X1726D | 18 | 1 days | |
|
RETAINER STRIP H | WR17X2136 | 24 | 1 days | ||
|
STOP DOOR | WR02X7681 | WR2X9016 | 26 | 1 days | |
|
THIMBLE DOOR PLASTIC | WR02X7627 | WR02X10111 | 28 | 11 days | |
|
PLUG BUTTON INSERT AD | WR02X8088 | WR2X8088 | 29 | 11 days | |
|
SCR 8/10-16 AB PA 5/8 | WR01X5475 | WR1X5475D | 30 | 11 days | |
|
CAP END | WR02X8714 | 5 | 11 days | ||
|
SCR 10-16 1/2 PH | WR01X1728 | 566 | 11 days | ||
|
HANDLE FF AD | WR12X0889 | WR12X889 | 7 | 11 days | |
|
SCR 8-32 TT FL 1/2 S | WH02X0940 | WH2X940 | 86 | 1 days | |
|
SCR 8-18 AB PA 1/2 SS | WZ04X0241 | WZ4X241D | 87 | 1 days | |
|
O.DOOR FF AD | WR78X8512 | WR78X8754 | 910 | 11 days | |
|
PLUG BUTTON ALMOND | WR02X7625 | WR2X7625 | 921 | 1 days |
