Model# SGS365ZW

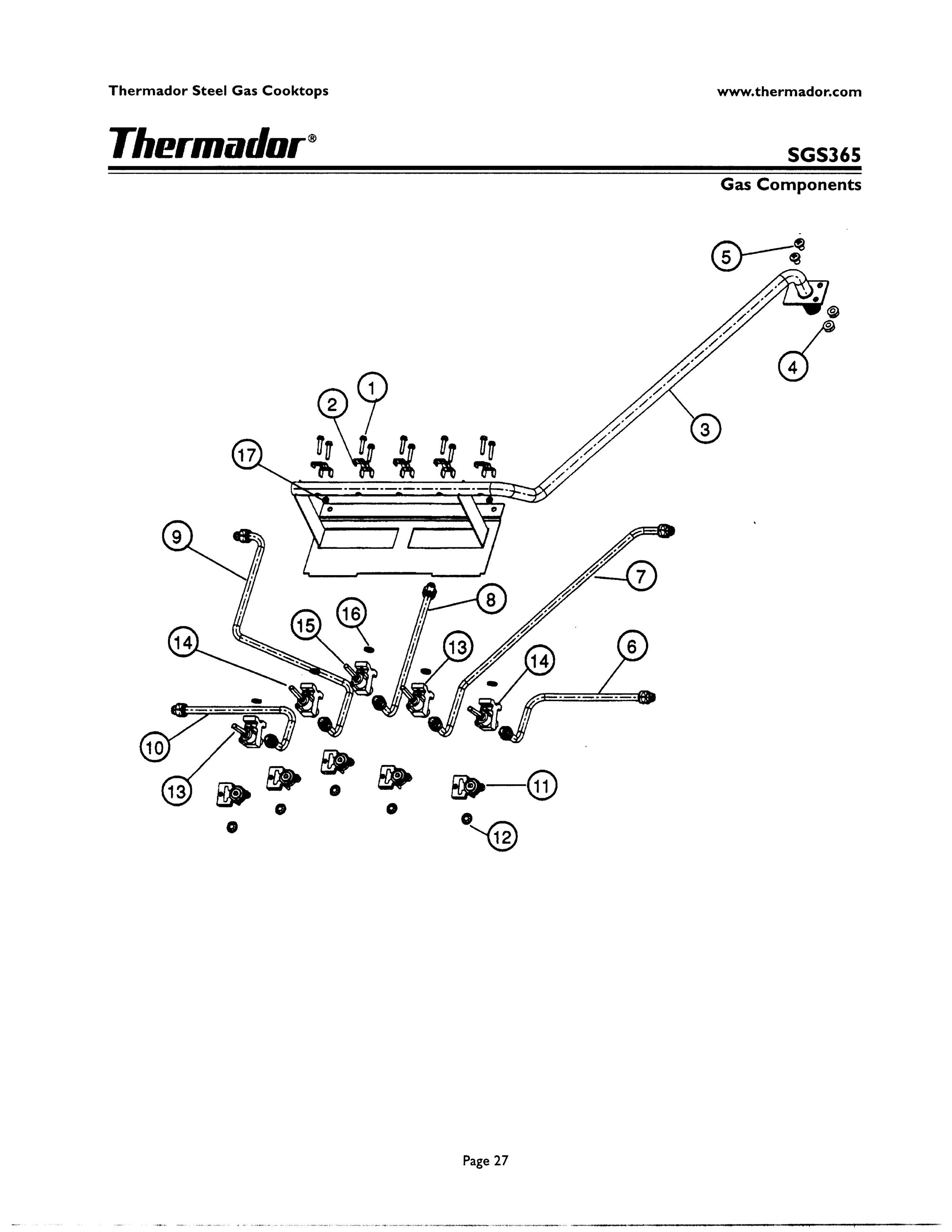

The image and part list below are associated with the component: 26 - GAS COMPONENTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Screw, 8-32 x 3/4, ss, hex washer head | 188964 | 00188964 | 1 | 3 days | |
|
Tubing, LF, SGS 365 | 366924 | 00366924 | 10 | 3 days | |
|
Switch, spark ignitor | 189008 | 00189008 | 11 | 3 days | |
|
Retainer clip, push-on, 6mm shaft o.d. | 188980 | 00188980 | 12 | 3 days | |
|
Gas valve, 210, 8,000 | 188996 | 00188996 | 13 | 3 days | |
|
Gas valve, 210, 1200 | 188960 | 14 | 11 days | ||
|
Gas valve, 210, 15,000 | 188997 | 00188997 | 15 | 3 days | |
|
Rubber washer, gas valve | 188962 | 00188962 | 16 | 3 days | |
|
SCREW #8 x 3/8 TYPE (B pan HEAD | 189031 | 00189031 | 17 | 3 days | |
|
Seal, (D, umbrella | 188989 | 00188989 | 18 | 3 days | |
|
Clamp, SADDLE | 188963 | 00188963 | 2 | 3 days | |
|
MANIFOLD SGS(X 365 | 366882 | 00366882 | 3 | 11 days | |
|
Screw, 1/4-20 x 3/8, ph pan head, zinc | 188968 | 00188968 | 4 | 11 days | |
|
Nut, 1/4-20, hex kep | 188969 | 00188969 | 5 | 3 days | |
|
Tubing, RF, SGS/X 365 | 366923 | 00366923 | 6 | 3 days | |
|
Tubing, RR, SGS/X 365 | 366922 | 00366922 | 7 | 3 days | |
|
Tubing, CTR, SGS365 | 366926 | 00366926 | 8 | 3 days | |
|
Tubing, LR, SGS 365 | 366925 | 00366925 | 9 | 3 days |
