Model# SGS30W

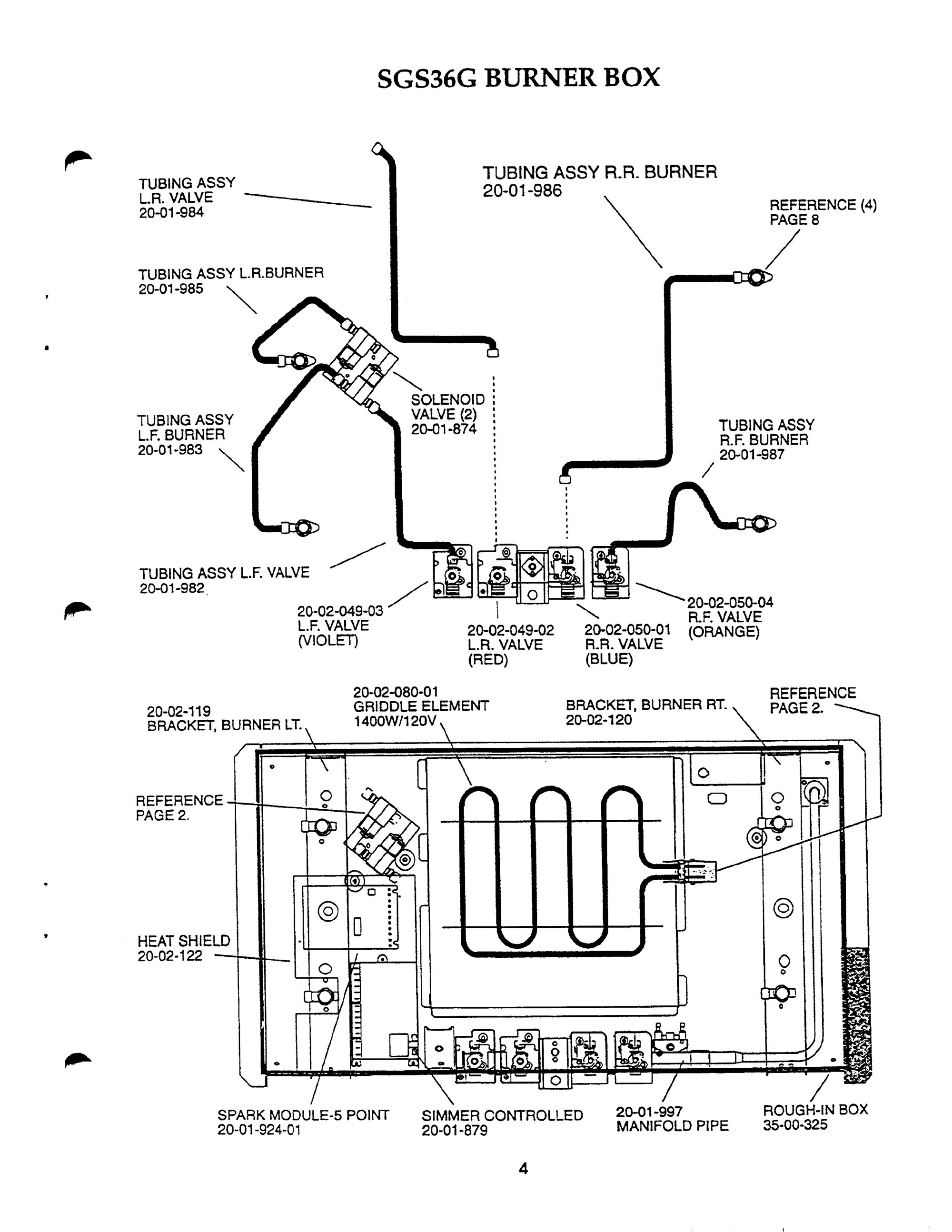

The image and part list below are associated with the component: 07 - SGS36G BURNER BOX:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Spark module 6-pt. | 20-01-924-01 | - | 11 days | ||
|
Tubing, LF valve -- use 484828 when stock gone | 20-01-982 | 00484828 | - | 11 days | |
|
|
Tubing, LF burner -- use 484828 when stock gone | 20-01-983 | 00484828 | - | 11 days | |
|
Tubing, LR burner | 20-01-985 | - | 11 days | ||
|
Manifold, 36 in. | 20-01-997 | 00142378 | - | 11 days | |
|
VALVE GAS LF | 20-02-049-03 | 00189740 | - | 11 days | |
|
Element, griddle 1400W 120V | 20-02-080-01 | 00487078 | - | 0 days | |
|
Bracket, burner, left, 36, steel | 20-02-119 | 00368999 | - | 0 days | |
|
Bracket, burner, right 36, steel | 20-02-120 | 00487583 | - | 0 days | |
|
Heat shield, steel, 36 | 20-02-122 | 00369116 | - | 11 days | |
|
Rough-in box assy., SGS36G | 35-00-325 | 00142997 | - | 11 days | |
|
Solenoid | 20-01-874 | 00411253 | - | 0 days | |
|
Controller | 20-01-879 | 00422882 | - | 0 days | |
|
|
Tubing, LR valve -- use 484828 when stock gone | 20-01-984 | 00484828 | - | 11 days | |
|
Tubing, RR burner | 20-01-986 | 00484827 | - | 0 days | |
|
Valve, 210, 9100 R, blue | 20-02-050-01 | 00189879 | - | 0 days | |
|
Valve, 210, 11,000 | 20-02-050-04 | 00189897 | - | 0 days | |
|
|
NLA (was tube, RF burner - use 484828 tube set | 20-01-987 | 00484827 | - | 0 days | |
|
NLA , use 367507 (valve 280 11,000 R (red | 20-02-049-02 | 00367507 | - | 0 days |
