Model# SGC365RB

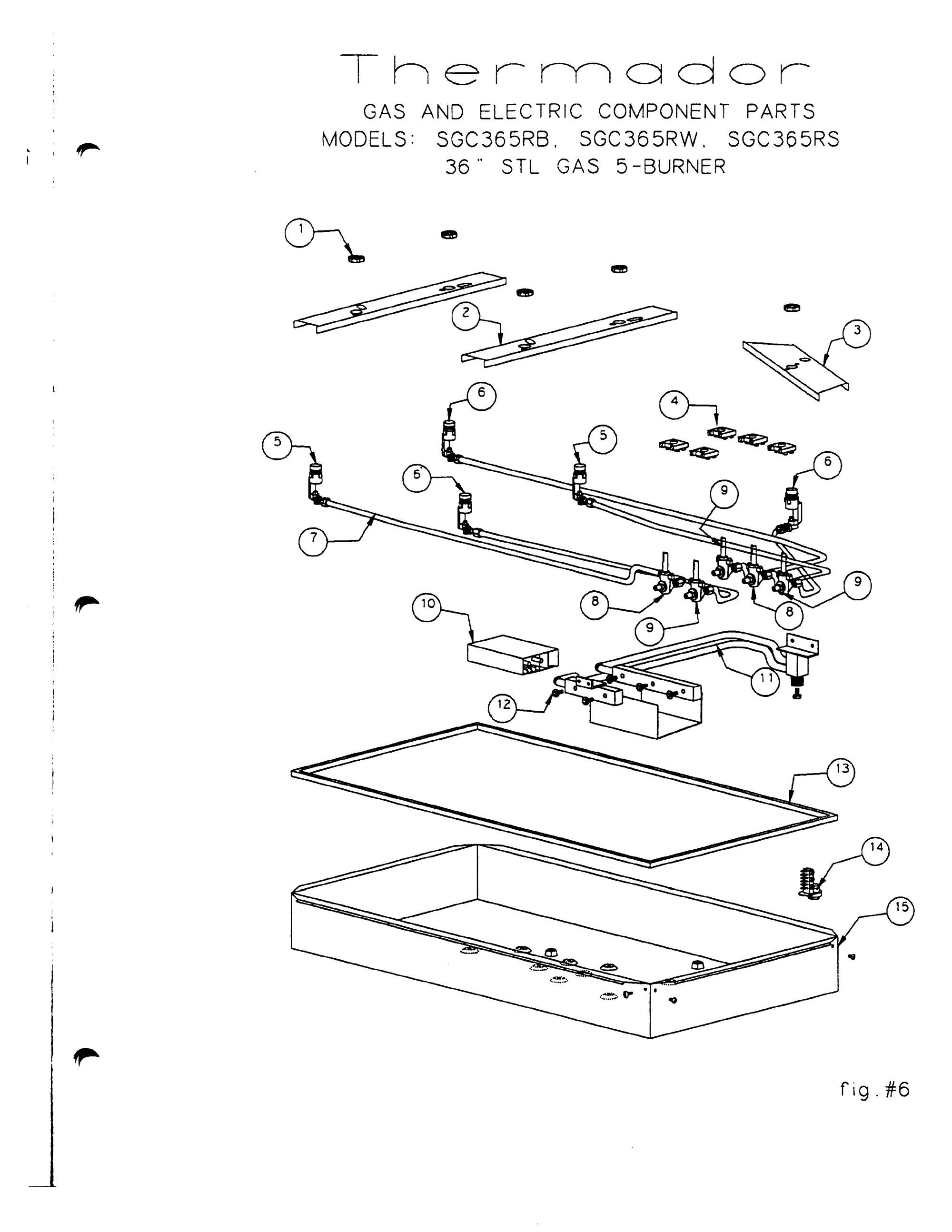

The image and part list below are associated with the component: 12 - GAS AND ELECTRIC COMPONENT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Nut, M22x1 | 14-93-167 | 00188978 | 1 | - |
|
|
Spark module kit | 486771 | 00753257 | 10 | 3 days | |
|
NLA (manifold SGC365R/SGCS365R | 142487 | 00142487 | 11 | 11 days | |
|
Valve Mounting Screw assy. | 189894 | 00189894 | 12 | 3 days | |
|
Tape, Foam 3/8 in. x 3/8 in. x 10.75 | 487081 | 00487081 | 13 | 3 days | |
|
Terminal block, main power, with strain relief | 414807 | 00414807 | 14 | 3 days | |
|
Rough In Box, 3/4 | 218956 | 00218956 | 15 | 11 days | |
|
Mounting bracket, double burner | 484202 | 00484202 | 2 | 3 days | |
|
Bracket, Burner Single | 484203 | 00484203 | 3 | 3 days | |
|
Switch, Spark assy. | 411415 | 00411415 | 4 | 3 days | |
|
Jet holder assy. (blue, with orifice, 12,500 BTU natural gas | 189314 | 00189314 | 5 | 3 days | |
|
Jet holder assy. (green, with orifice, 9100 BTU natural gas | 189312 | 00414785 | 6 | 3 days | |
|
Tube | 488820 | 00488820 | 7 | 3 days | |
|
Valve assy.,12500 210 Orange | 189892 | 8 | 11 days | ||
|
Valve assy.,9100 210 Blue | 189890 | 00189890 | 9 | 11 days |
