Model# PTW605BPR1DG

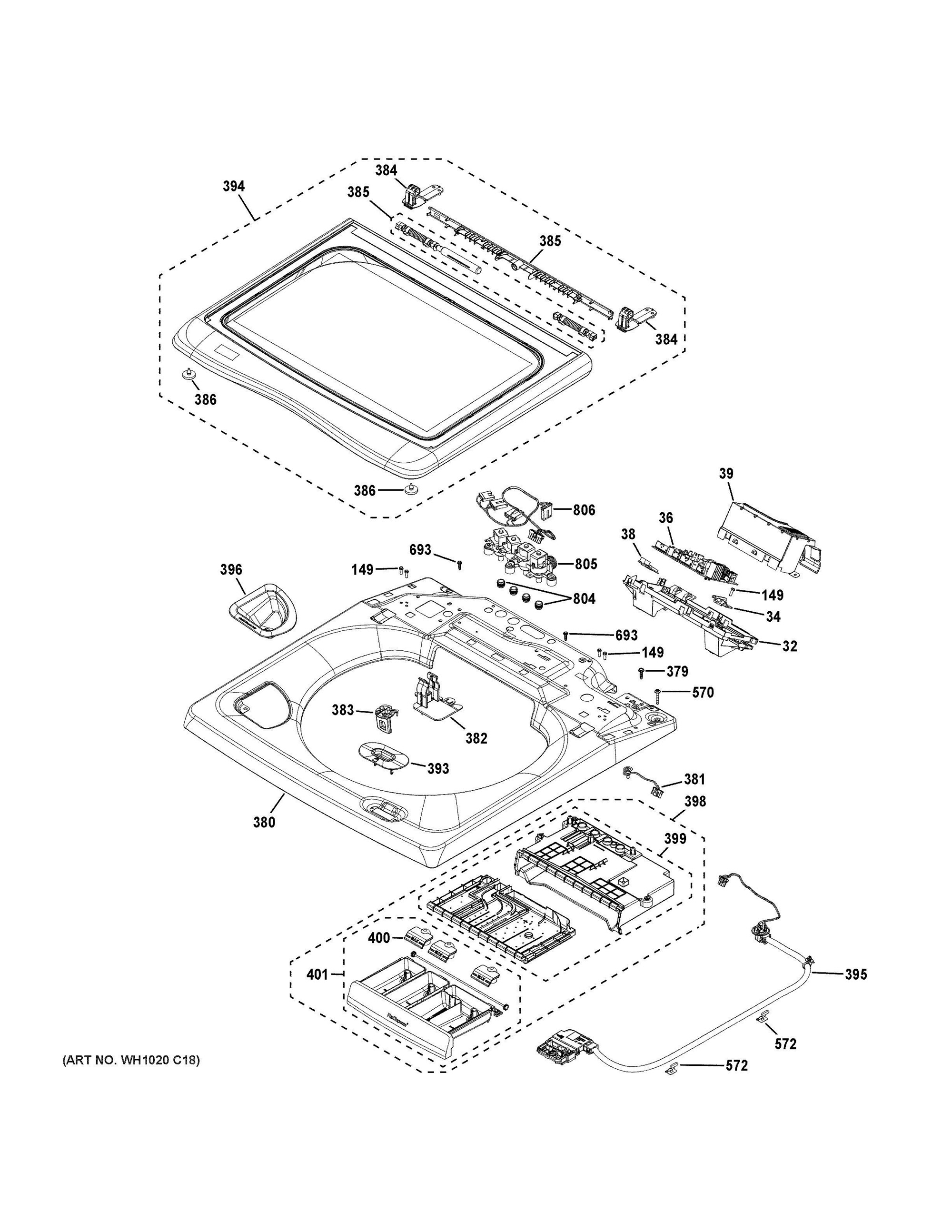

The image and part list below are associated with the component: TOP PANEL LID:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW 8-18 HI/LO 5/8 | WR01X10196 | 149 | 1 days | ||
|
MAIN CONTROL BOARD HOUSING | WH01X32865 | 32 | 11 days | ||
|
PCB BRACKET | WH01X32882 | 34 | 11 days | ||
|
MAIN CONTROL BOARD W/INSTRUCTIONS | WH22X33178 | 36 | 11 days | ||
|
SCR 10-32 GX HXW 7/16 S | WE02X10107 | 379 | 11 days | ||
|
WIFI BOARD | WH22X32868 | 38 | 11 days | ||
|
TOP COVER DIAMOND GRAY | WH10X33077 | 380 | 11 days | ||
|
THERMISTOR | WH04X29448 | 381 | 11 days | ||
|
CAPACITOR BRACKET & PUMP HOLE PLUG | WH01X33998 | 382 | 11 days | ||
|
LID LOCK STRIKER | WH01X32866 | 383 | 11 days | ||
|
LID STANCHION | WH01X32861 | 384 | 11 days | ||
|
HINGE REINFORCEMENT COVER | WH01X32862 | 385 | 11 days | ||
|
LID BUMPER | WH01X32870 | 386 | 11 days | ||
|
MAIN CONTROL SHIELD | WH01X32884 | 39 | 11 days | ||
|
LID LOCK BEZEL | WH01X33877 | 393 | 11 days | ||
|
GLASS FRAME LID DIAMOND GRAY | WH44X33060 | WH10X40098 | 394 | 11 days | |
|
LID LOCK QUICK RELEASE | WH08X33879 | WH08X37859 | 395 | 11 days | |
|
BLEACH CUP | WH01X32879 | 396 | 11 days | ||
|
DISPENSER SHOWER PLATE | WH42X32864 | 398 | 11 days | ||
|
BOX DISPENSER | WH42X32863 | 399 | - |
|
|
|
SIPHON CAP | WH01X32893 | 400 | 11 days | ||
|
DISPENSER DRAWER ASSEMBLY DIAMOND GRAY | WH42X34194 | WH42X34718 | 401 | 11 days | |
|
LID HINGE RH | WH01X34193 | 402 | 11 days | ||
|
LID HINGE W/DAMPER LH | WH01X34192 | WH01X34797 | 403 | 11 days | |
|
SCR 10-32 GX 1.309 HWX S | WH02X24116 | 570 | 11 days | ||
|
LID LOCK HARNESS CLIP | WH02X24143 | 572 | 11 days | ||
|
SCR 8-16 PLASTITE HXW 5/8 | WH02X24057 | 693 | 11 days | ||
|
WATER VALVE SEAL | WH13X24094 | 804 | 11 days | ||
|
VALVE QUAD WATER ASM | WH13X26637 | 805 | 11 days | ||
|
WATER VALVE HARNESS | WH08X32886 | 806 | 11 days |
