Model# PTD90GBPT1RS

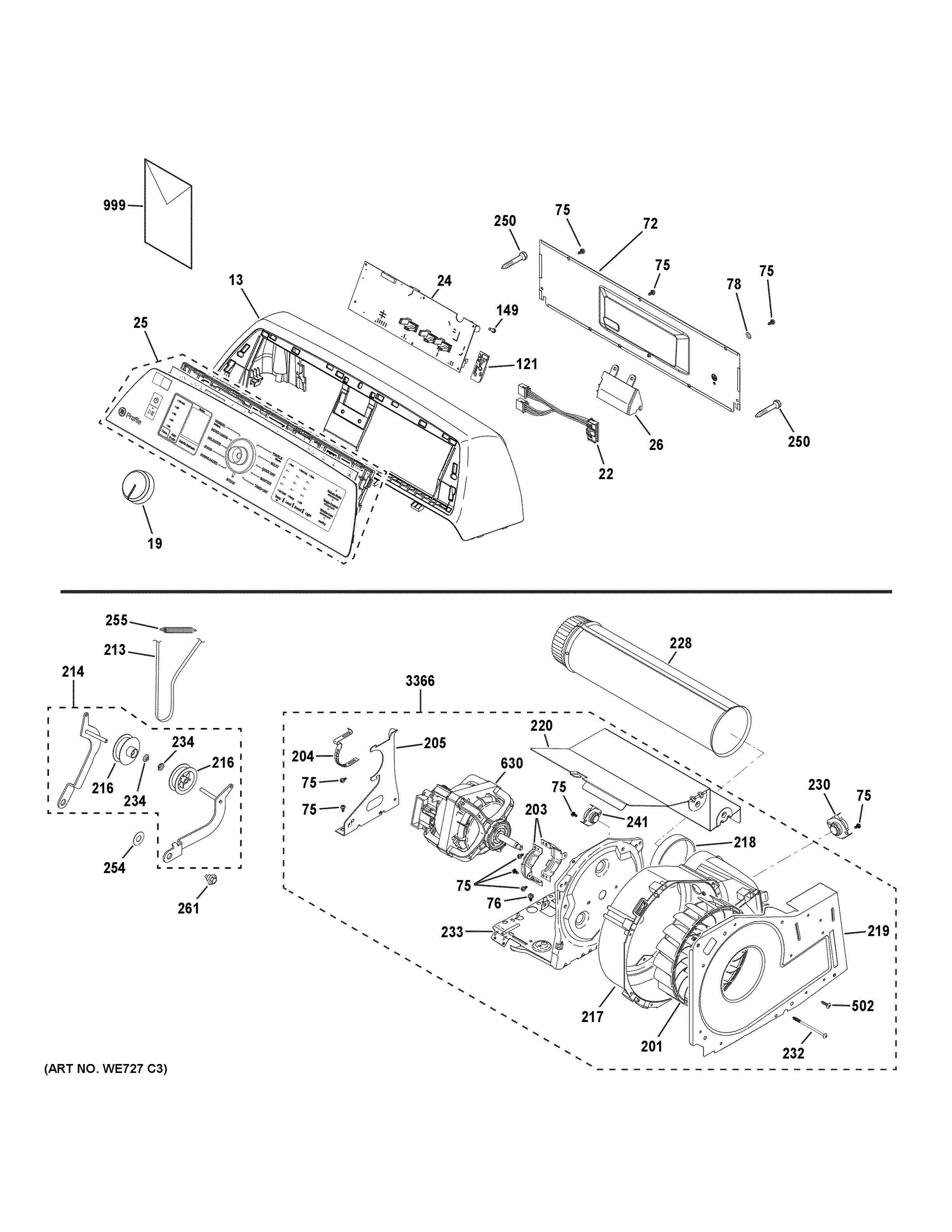

The image and part list below are associated with the component: BACKSPLASH BLOWER MOTOR ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI MANUAL AND WIRING | 31-3000249 | 1 | 11 days | ||
|
PM OWNERS AND INSTALL | 49-3000244 | 1 | 11 days | ||
|
PM INSTALL INSTRUCTIONS | 31-3000245 | 1 | 11 days | ||
|
GEA3 WIFI/BLE BOARD W/INSTRUCTIONS | WH22X33177 | WH22X36577 | 121 | 11 days | |
|
BACKSPLASH | WE01X34086 | 13 | 11 days | ||
|
SCREW 8-18 HI/LO 5/8 | WR01X10196 | 149 | - |
|
|
|
SELECTOR KNOB | WH01X32887 | WH01X35377 | 19 | 11 days | |
|
BLOWER WHEEL | WH16X34317 | 201 | - |
|
|
|
STRAP MOTOR | WE13X30697 | 203 | 11 days | ||
|
MOTOR BRACKET | WE01X0921 | WE1X921 | 204 | 2 days | |
|
SUPPORT MOTOR & NUT ASM | WE13X34477 | 205 | 11 days | ||
|
DRIVE BELT | WE03X33648 | 213 | 11 days | ||
|
IDLER ARM | WE03X33642 | 214 | 11 days | ||
|
PULLEY | WE03X31620 | 216 | 11 days | ||
|
IDLER ARM | WE03X33643 | 217 | 11 days | ||
|
BLOWER GASKET (EXHAUST) | WE09X27636 | 218 | 11 days | ||
|
HOUSING BLOWER | WE13X29560 | 219 | 11 days | ||
|
HARNESS UI ASM | WE08X33257 | 22 | 11 days | ||
|
SHIELD THERMOSTAT | WE1M976 | 220 | 11 days | ||
|
EXHAUST DUCT | WE01X23893 | 228 | 11 days | ||
|
OUTLET THERMOSTAT | WE04X31007 | 230 | 11 days | ||
|
SCREW | WE2M202 | 232 | 11 days | ||
|
PLATE MOTOR | WE03X23858 | 233 | 11 days | ||
|
CAP NUT | WE2M96 | 234 | 11 days | ||
|
MAIN CONTROL BOARD & INSTRUCTIONS TL DRY | WE22X34377 | 24 | 11 days | ||
|
OUTLET CNTRL THERMISTOR | WE4M448 | 241 | 2 days | ||
|
IDLER MICROSWITCH | WE4M425 | 242 | 2 days | ||
|
BOARD UI & IMD ASM | WE22X34157 | 25 | 11 days | ||
|
SCR 8-18 AB 13/4 S HXW | WR01X10634 | 250 | 2 days | ||
|
NYLON WASHER | WE2M234 | 254 | 2 days | ||
|
SPRING IDLER | WE1M735 | 255 | 2 days | ||
|
BRACKET SUPPORT BOARD | WE01X33125 | 26 | 11 days | ||
|
IDLER PIVOT SCREW | WE2M237 | 261 | 2 days | ||
|
MOTOR & BLOWER ASM | WE03X33639 | 3366 | 11 days | ||
|
SCREW # 10 | WE2M174 | 502 | 2 days | ||
|
MOTOR AND PULLEY ASM | WE03X33640 | 630 | 11 days | ||
|
PANEL BACK | WE20X24556 | 72 | 11 days | ||
|
SCR 10-16 GX IHXW Q2 3/8 S ZN | WE01X25535 | 75 | 11 days | ||
|
SCREW 8-32X3/8 GRD SCR | WZ05X0158 | WZ5X158D | 76 | 2 days | |
|
WASHER | WE01X26154 | 78 | 11 days |
