Model# PTD90EBPT1RS

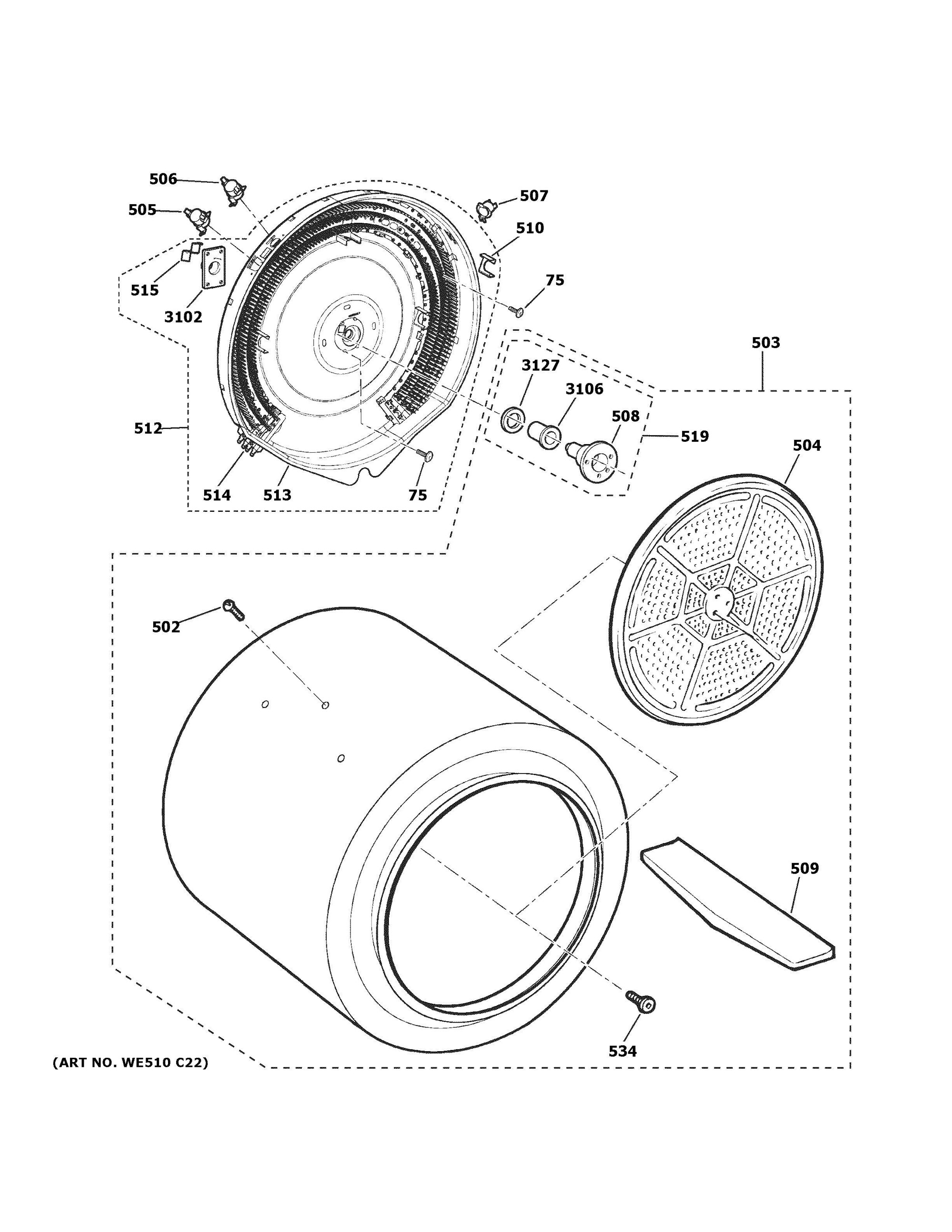

The image and part list below are associated with the component: DRUM:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BEARING RETAINER | WE1M300 | 3102 | 2 days | ||
|
SLEEVE DRUM | WE1M462 | 3106 | 2 days | ||
|
O RING | WE1M461 | 3127 | 2 days | ||
|
SCREW # 10 | WE2M174 | 502 | 2 days | ||
|
DRUM ASM | WE21X23869 | 503 | 11 days | ||
|
DIFFUSER | WE11X29438 | 504 | 11 days | ||
|
INLET SAFETY THERMOSTAT | WE04X31037 | 505 | 11 days | ||
|
INLET CONTROL THERMISTOR | WE4M398 | 506 | 2 days | ||
|
HIGH-LIMIT THERMOSTAT | WE04X30381 | 507 | - |
|
|
|
SHAFT | WE00X181L | 508 | 11 days | ||
|
BAFFLE | WE14X20683 | 509 | 11 days | ||
|
PROTECTION BRACKET | WE1M780 | 510 | 2 days | ||
|
HEATER AND HOUSING ASM | WE11X21156 | 512 | 11 days | ||
|
HEATER HOUSING | WE11M43 | 513 | 11 days | ||
|
MICA HEATER | WE11M10001 | 514 | 2 days | ||
|
GROUND STRAP ASM | WE13X29439 | 515 | 11 days | ||
|
SCREW #10 | WE2M163 | 534 | 2 days | ||
|
SCR 10-16 GX IHXW Q2 3/8 S ZN | WE01X25535 | 75 | 11 days |
