Model# PTD60EBPR0DG

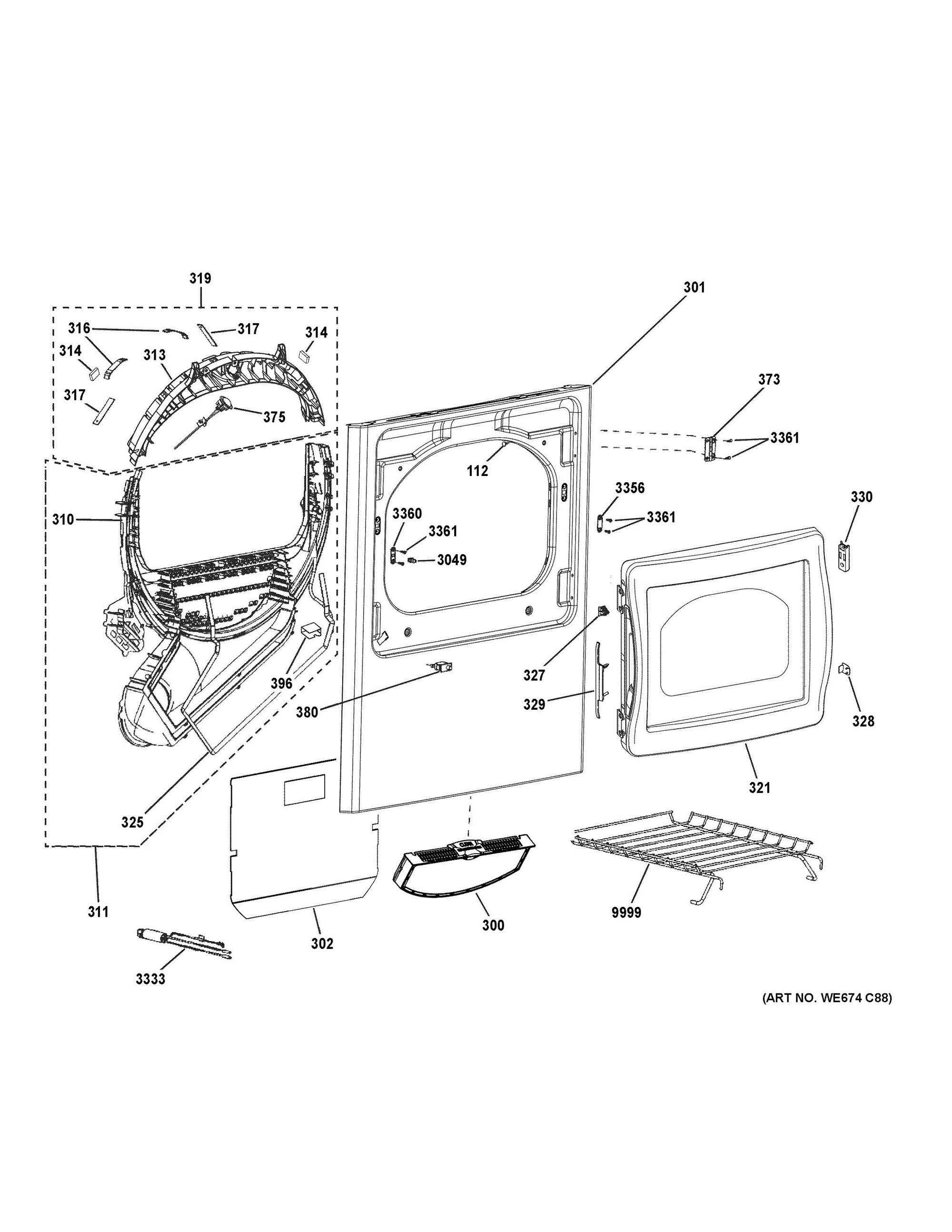

The image and part list below are associated with the component: FRONT PANEL DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PLUG BUTTON GREY | WE1M949 | 112 | 2 days | ||
|
FILTER LINT ASM | WE03X23881 | 300 | 11 days | ||
|
PANEL FRONT | WE20X27466 | 301 | 11 days | ||
|
HEAT SHIELD | WE01X29060 | 302 | 11 days | ||
|
STRIKE | WE01M10007 | 3049 | 2 days | ||
|
Trap Duct | WE01X33121 | 310 | 11 days | ||
|
DUCT TRAP | WE16X33120 | 311 | 11 days | ||
|
BEARING TOP SLIDES | WE03X23956 | 313 | 11 days | ||
|
FELT TOP BEARING | WE09X27635 | 314 | 11 days | ||
|
BEARING SLIDE | WE3M52 | WE03X37320 | 316 | 11 days | |
|
BEARING SLIDE | WE3M51 | WE03X37319 | 317 | 11 days | |
|
BEARING TOP ASM | WE03X23875 | 319 | 11 days | ||
|
DRYER DOOR DIAMOND GRAY | WE10X33132 | 321 | 11 days | ||
|
GASKET (SEAL) 39 INCH | WE1M825 | 325 | 2 days | ||
|
LATCH | WE01X25316 | 327 | 11 days | ||
|
LATCH BEAUTY PLUG | WE01X33135 | 328 | 11 days | ||
|
BEAUTY PLUG | WE01X33136 | 329 | 11 days | ||
|
DOOR HINGE CAP | WE01X33134 | 330 | 11 days | ||
|
HARNESS SENSOR ASM | WE15X26994 | 3333 | 11 days | ||
|
STRIKE PLATE | WE1M569 | 3356 | 2 days | ||
|
STRIKE PLATE W/STRK HOLE | WE1M570 | 3360 | 2 days | ||
|
SCREW | WE2M302 | 3361 | 2 days | ||
|
DOOR HINGE | WE01X33133 | WE01X34338 | 373 | 11 days | |
|
LED | WE08X30497 | 375 | 11 days | ||
|
DOOR SWITCH | WE04X28977 | 380 | 11 days | ||
|
SHIELD SWITCH | WE01X23880 | 396 | 11 days | ||
|
DRYER RACK | WE01X25160 | 9999 | 11 days |
