Model# PRG364GL

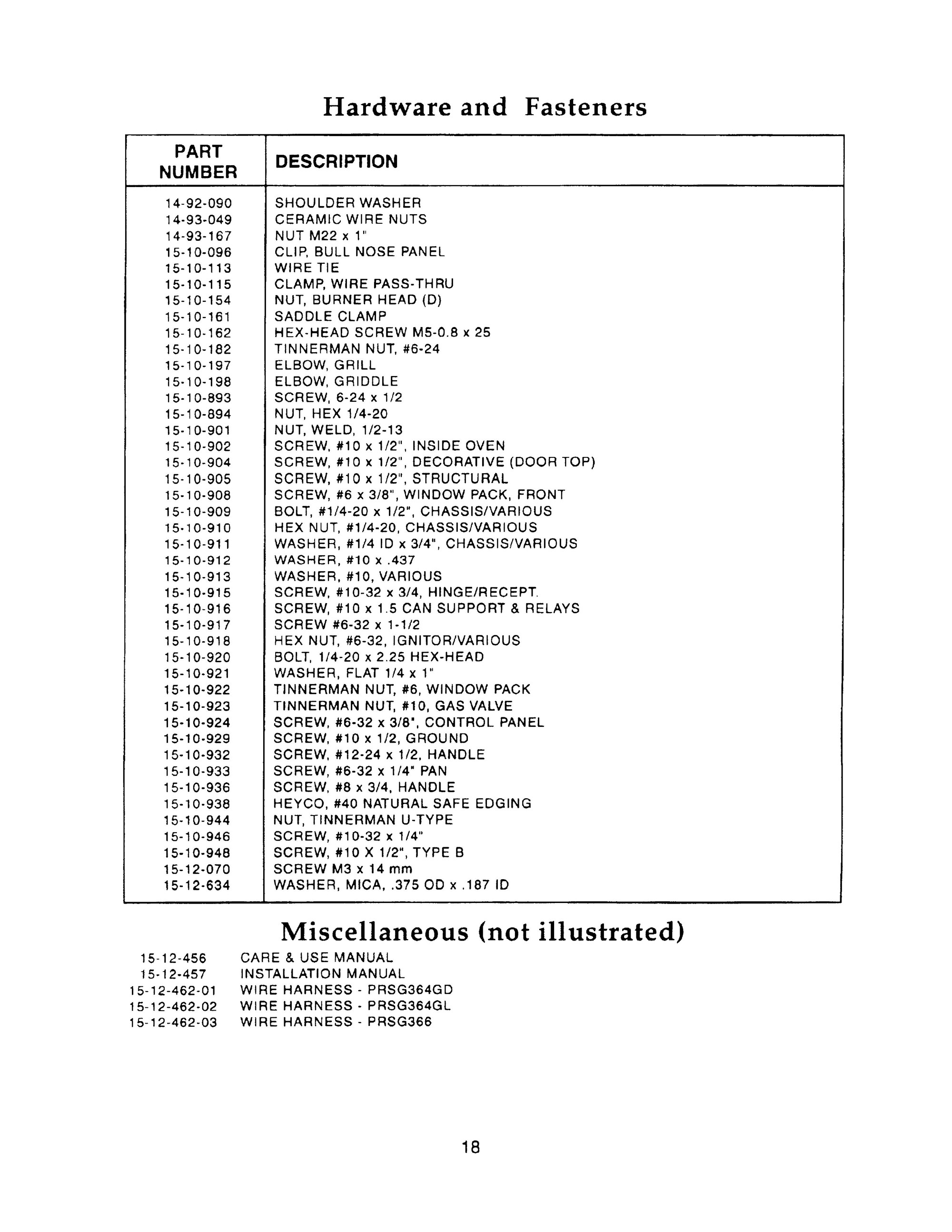

The image and part list below are associated with the component: 18 - HARDWARE & FASTENERS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Elbow grill | 15-10-197 | - | 11 days | ||
|
Washer, flat 1/4 i.d. x 1 in. long | 15-10-921 | - | 11 days | ||
|
Installation instructions, PRG | 15-12-457 | 00582230 | - | 11 days | |
|
Wire harness, PRG364GD | 15-12-462-01 | 00487338 | - | 2 days | |
|
Wire harness, PRG366 | 15-12-462-03 | 00487340 | - | 2 days | |
|
WASHER | 15-12-634 | - | 11 days | ||
|
Washer, shoulder | 14-92-090 | 00189325 | - | 2 days | |
|
Nut, M22x1 | 14-93-167 | 00188978 | - | 2 days | |
|
Wire tie | 15-10-113 | 00189925 | - | 11 days | |
|
Clamp | 15-10-115 | - | 11 days | ||
|
Venturi | 15-10-154 | 00189023 | - | 2 days | |
|
Clamp, saddle | 15-10-161 | 00415015 | - | 2 days | |
|
Bolt, M5-0.8 x 25 hex hd | 15-10-162 | 00415016 | - | 11 days | |
|
Nut, tinnerman | 15-10-182 | 00415027 | - | 2 days | |
|
Elbow griddle | 15-10-198 | 00411282 | - | 11 days | |
|
NUT | 15-10-894 | - | 11 days | ||
|
Bolt, 1/4-20 x 1/2 hex std. z | 15-10-909 | 00415075 | - | 11 days | |
|
Hex nut, keps 1/4-20 | 15-10-910 | 00413547 | - | 11 days | |
|
Washer, 1/4 i.d. x 3/4 o.d., flat z | 15-10-911 | 00415076 | - | 2 days | |
|
Hex nut, 6-32 300 or ss eps | 15-10-918 | 00415080 | - | 11 days | |
|
Bolt, hex std. 1/4-20 2.25l | 15-10-920 | 00413548 | - | 11 days | |
|
SCREW | 15-10-933 | - | 11 days | ||
|
Nut, tinnermanc-33924-1420-4 | 15-10-944 | 00415088 | - | 11 days | |
|
CARE & USE MANUAL | 15-12-456 | - | 11 days | ||
|
Wire harness, PRG364GL | 15-12-462-02 | 00487339 | - | 2 days | |
|
Screw, #10 x 1/2 s/m ab ph pn400s | 15-10-902 | 00411310 | - | 2 days | |
|
Screw, #10 x 1/2 ab phl truss ss | 15-10-904 | 00415072 | - | 2 days | |
|
Screw #10 x 1/2, PH SMS zinc | 15-10-905 | 00417555 | - | 2 days | |
|
Screw, #6 x .38 s/m ab ph pn std | 15-10-908 | 00415074 | - | 11 days | |
|
Washer, #10 x 3/8 sst thin flat | 15-10-912 | - | 11 days | ||
|
Screw,#10 x 1-1/2 sms phl pan, zn | 15-10-916 | 00415078 | - | 2 days | |
|
Nut, tinnerman, #6c6452-6z typd | 15-10-922 | - | 11 days | ||
|
Nut, gas valve/tinnerman #10c8384-10z | 15-10-923 | 00415082 | - | 2 days | |
|
Wire nut, #10 | 14-93-049 | 00411187 | - | 2 days | |
|
Screw, #6-24 x 1/2 phl pan, type b | 15-10-893 | - | 11 days | ||
|
Washer, #10 external star | 15-10-913 | - | 11 days | ||
|
Screw, #10-32 x 3/4 m/s ph pn 400 | 15-10-915 | 00415077 | - | 2 days | |
|
Screw, #6-32 x 1-1/2 phl pn sst | 15-10-917 | 00415079 | - | 11 days | |
|
Screw, #6-32 x 3/8 s/m pan, ss | 15-10-924 | 00415083 | - | - |
|
|
Screw, #10 x 1/2 s/m ph pn std | 15-10-929 | 00411316 | - | 11 days | |
|
Screw, #12-24 x 1/2, phillips head, zinc, F | 15-10-932 | 00415084 | - | 2 days | |
|
Screw, #8 x 1/2 sm ab pan, ss | 15-10-936 | 00415086 | - | 2 days | |
|
Edging/metal/Heyco #gr40nat - 3 length | 15-10-938 | 00486241 | - | 11 days | |
|
Machine screw, #10-32 x 1/4, phillips head | 15-10-946 | 00415089 | - | 2 days | |
|
NLA (was Clip, end cap | 15-10-096 | 15-10-026 or 1 | - | 11 days | |
|
Screw, #10 x 1/2 ph pn z (B | 15-10-948 | 00415091 | - | 11 days | |
|
Screw, #m3 x 15mm ph zinc | 15-12-070 | 00415096 | - | 2 days |
