Model# PRG304US

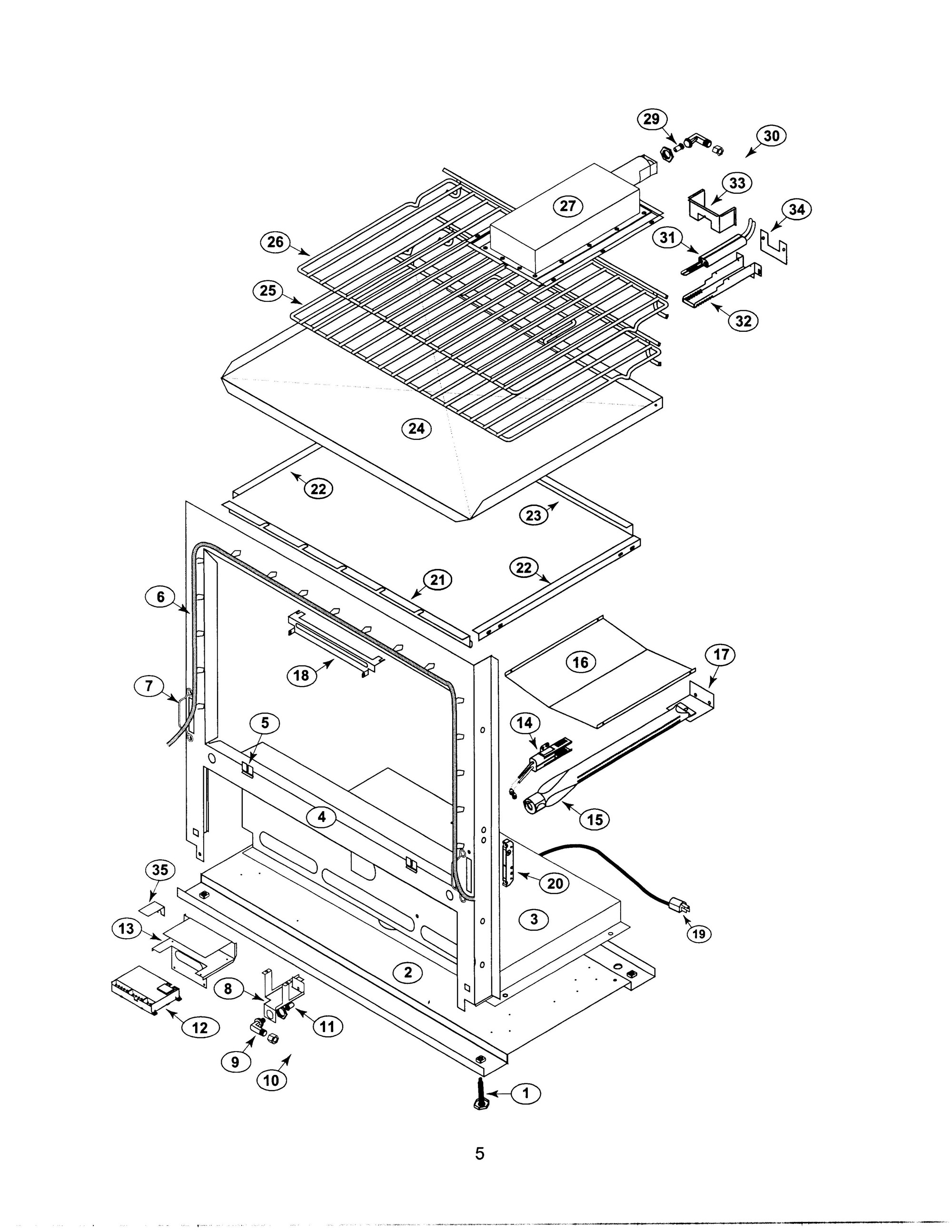

The image and part list below are associated with the component: 04 - BOTTOM FRAME:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Leveling leg | 15-10-144 | 1 | 11 days | ||
|
Gas tubing, 3/8 in. gas oven | 219139 | 00219139 | 10 | 5 days | |
|
Orifice, oven, natural gas #38 | 415006 | 00415006 | 11 | 5 days | |
|
Simmer controller | 411441 | 00422882 | 12 | 5 days | |
|
Bracket, Simmer control Mounting | 484702 | 00484702 | 13 | 11 days | |
|
Ignitor, Hot Surface, Small | 415504 | 00415504 | 14 | 5 days | |
|
Tube, oven Burner | 487241 | 00487241 | 15 | 5 days | |
|
Spreader, Flame - PRSG | 487223 | 00487223 | 16 | 5 days | |
|
Bracket, Angle Burner Mounting | 484696 | 00484696 | 17 | 11 days | |
|
Holder, Bulb | 414998 | 00414998 | 18 | 5 days | |
|
Power cord, 8ft | 15-10-112 | 00239538 | 19 | 5 days | |
|
Panel, Bottom, PRSG304 | 143164 | 00143164 | 2 | 5 days | |
|
Support, Hinge Counter | 415049 | 00415049 | 20 | 5 days | |
|
Angle, Flue Guard | 484697 | 00484697 | 21 | 11 days | |
|
Angle, side Liner | 484700 | 00484700 | 22 | 11 days | |
|
Angle, rear Liner 30 in. | 487272 | 00487272 | 23 | 11 days | |
|
Liner, oven Bottom 30 in. Porc | 368952 | 00368952 | 24 | 5 days | |
|
|
Liner, oven Bottom, 30 in., porcelain | 143163 | 00368952 | 24 | 5 days | |
|
Rack, lower oven | 368951 | 00368951 | 25 | 5 days | |
|
Rack, upper oven | 369089 | 00369089 | 26 | 5 days | |
|
Burner assy., Infared | 487324 | 00487324 | 27 | 5 days | |
|
Orifice, Infrared #51 Dms-Ng | 415121 | 00415121 | 29 | 5 days | |
|
Air channel | 368955 | 00368955 | 3 | 11 days | |
|
Gas tubing, 3/8 in. gas oven | 219140 | 00219140 | 30 | 11 days | |
|
Ignitor, Glow | 487242 | 00487242 | 31 | 5 days | |
|
Instructions, Pro LP kit | 486228 | 00486228 | 32 | 11 days | |
|
Cover, upper Glow Ignitor | 367598 | 00367598 | 33 | 11 days | |
|
Plate, Ignitor - PRSG | 411260 | 00411260 | 34 | 5 days | |
|
Bracket, Anti-Tip | 413543 | 00413543 | 35 | 5 days | |
|
Air shutter, infrared burner | 414994 | 00414994 | 36 | 5 days | |
|
Frame, front, PRSG304 | 367599 | 00367599 | 4 | 11 days | |
|
Retainer, oven Bottomliner, PRSG | 415000 | 00415000 | 5 | 11 days | |
|
Gasket, door seal | 415058 | 00415058 | 6 | 5 days | |
|
Gasket Retainer | 415003 | 00415003 | 7 | 5 days | |
|
Bracket, Ignitor/Elbow | 487220 | 00487220 | 8 | 5 days | |
|
Elbow 90 Degree-Orifice Holder | 415033 | 00415033 | 9 | 5 days |
