Model# PRG304US

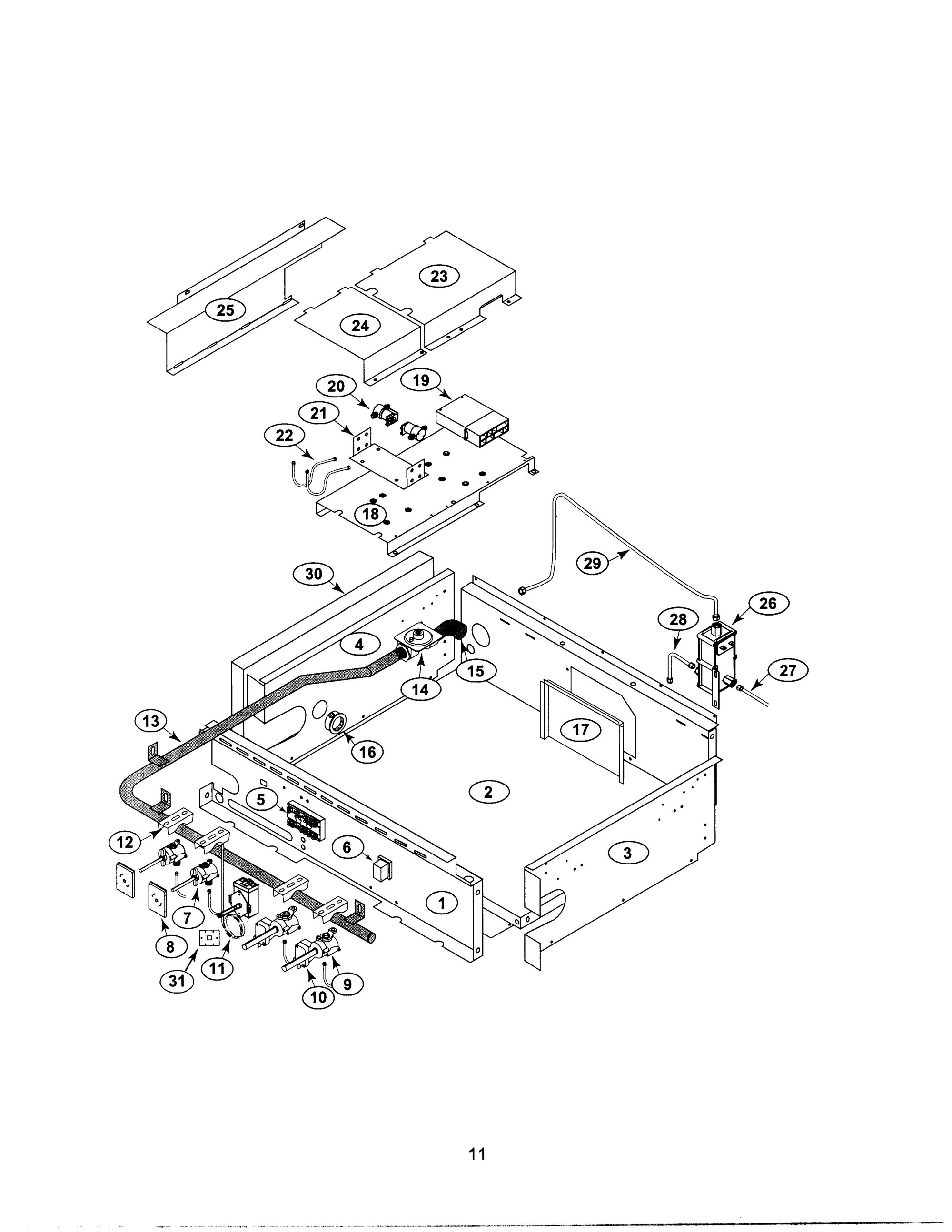

The image and part list below are associated with the component: 10 - BURNER BOX:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Front chassis, 30 in. | 143200 | 1 | 11 days | ||
|
Switch, micro | 15-12-051 | 00428049 | 10 | 1 days | |
|
Thermostat, Gas oven | 487538 | 00487538 | 11 | 1 days | |
|
Clamp, saddle | 15-10-161 | 00415015 | 12 | 1 days | |
|
Manifold, Gas, 30 in. | 238866 | 00238866 | 13 | 1 days | |
|
Regulator, Gas Pressure 5 in. Wc | 415506 | 00754658 | 14 | 1 days | |
|
Pipe Elbow, 1/2 in. 90 Deg, black | 415031 | 00415031 | 15 | 11 days | |
|
Grommet, Wire | 415087 | 00415087 | 16 | 1 days | |
|
ACCESS VALVE COVER | 15-12-559 | 17 | 11 days | ||
|
Base, Component Mounting | 369091 | 00369091 | 18 | 11 days | |
|
Spark module kit | 486771 | 00753257 | 19 | 1 days | |
|
CHASSIS, FLOOR, REAR | 15-12-538 | 2 | 11 days | ||
|
Solenoid | 411253 | 00411253 | 20 | 1 days | |
|
Bracket, Soenoid Mounting | 487273 | 00487273 | 21 | 1 days | |
|
Tubing, 1/4 Gas Supply CV/Sv | 415017 | 00415017 | 22 | 1 days | |
|
Cover, Component rear | 368958 | 00368958 | 23 | 11 days | |
|
Cover, Solenoid Valve front | 487343 | 00487343 | 24 | 11 days | |
|
Cover, Cord - Range | 487271 | 00487271 | 25 | 11 days | |
|
Valve, Dual Gas | 415497 | 00415497 | 26 | 1 days | |
|
Gas tubing, 3/8 in. gas oven | 219139 | 00219139 | 27 | 1 days | |
|
Tube, 3/8 in. Gas (Broiler | 415495 | 00415495 | 28 | - |
|
|
Tube, 3/8 in.Gas Cooktop | 368957 | 00368957 | 29 | 1 days | |
|
Chassis, side, right | 368954 | 00368954 | 3 | 11 days | |
|
Insulation, Range top 9.5X23 | 487227 | 00487227 | 30 | 11 days | |
|
Bracket, thermostat Mounting | 415105 | 00415105 | 31 | 1 days | |
|
Chassis, side, left | 368953 | 00368953 | 4 | 11 days | |
|
Terminal block | 415028 | 00415028 | 5 | 1 days | |
|
Relay, convection Fan | 415098 | 00415098 | 6 | 1 days | |
|
Valve Body (Simmer | 415499 | 00415499 | 7 | 1 days | |
|
Potentiometer | 20-01-872-01 | 00189816 | 8 | 1 days | |
|
Valve Body (Standard | 415500 | 00415500 | 9 | 1 days |
