Model# PH54HQS

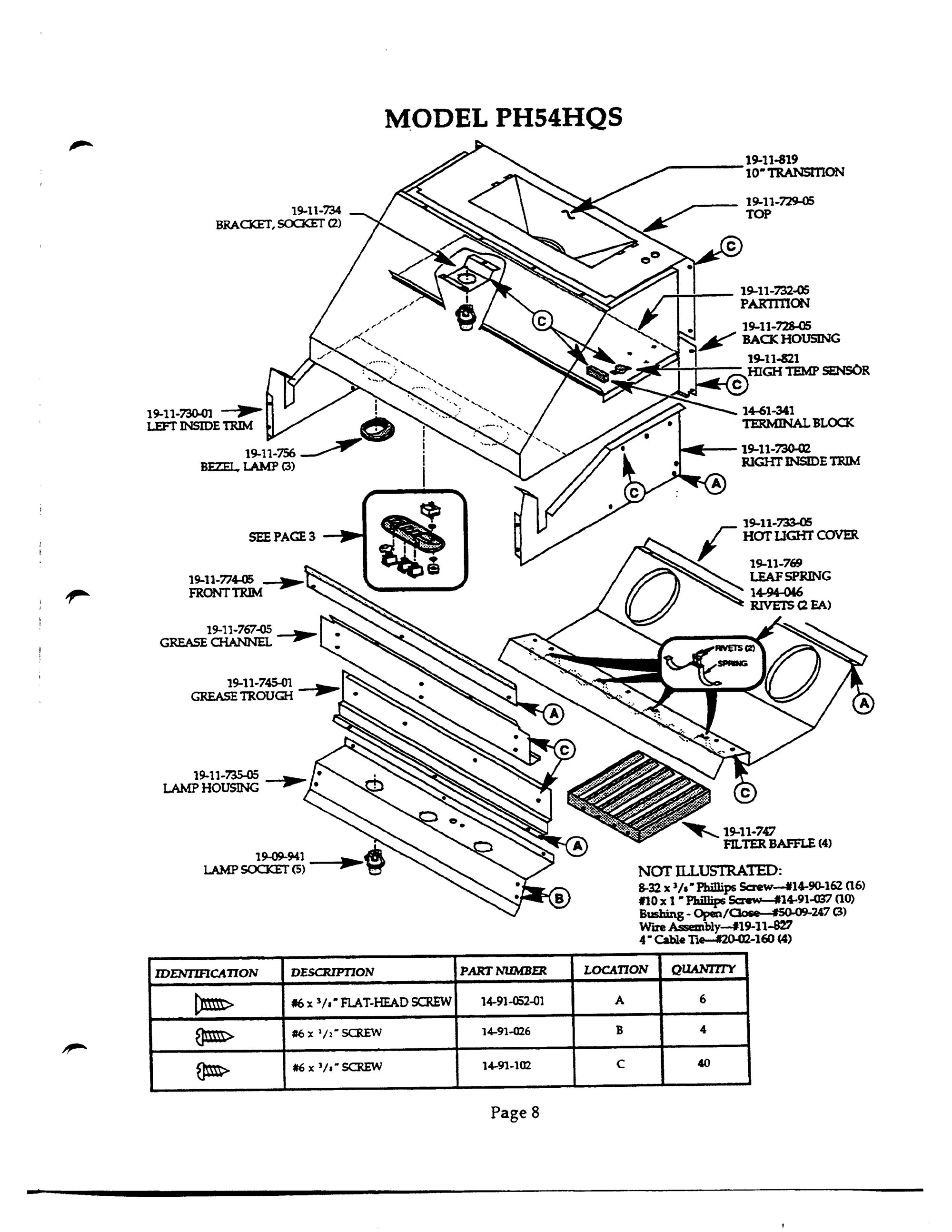

The image and part list below are associated with the component: 08 - HOOD:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Block, terminal | 14-61-341 | - | 11 days | ||
|
Lamp holder | 19-09-941 | 00189251 | - | 5 days | |
|
BACK HOUSING | 19-11-728-05 | - | 11 days | ||
|
Prohood, top, PH54HQS | 19-11-729-05 | 00368646 | - | 11 days | |
|
Inside wall, left | 19-11-730-01 | 00142888 | - | 5 days | |
|
Inside wall, right | 19-11-730-02 | 00486483 | - | 11 days | |
|
Partition, Pro hood, 54 in. | 19-11-732-05 | 00368620 | - | 11 days | |
|
Housing, lamp 54 in. | 19-11-735-05 | 00368628 | - | 11 days | |
|
Trough/grease 22.750 in. | 19-11-745-01 | 00414894 | - | 11 days | |
|
Filter, baffle | 19-11-747 | 00487121 | - | 11 days | |
|
Bezel, lamp | 19-11-756 | 00484718 | - | 11 days | |
|
Transition, 10 in. Pro hood | 19-11-819 | - | 11 days | ||
|
Cover, hot light, light 54 in. | 19-11-733-05 | 00368625 | - | 11 days | |
|
Bracket, socket | 19-11-734 | 00413752 | - | 5 days | |
|
Channel, grease, PH54HQ | 19-11-767-05 | 00368630 | - | 11 days | |
|
Sensor, temperature | 19-11-821 | 00414639 | - | - |
|
|
Rivet oval hd#511 | 14-94-046 | 00411402 | - | 5 days | |
|
NLA , use 414735 (leaf spring | 19-11-769 | 00414735 | - | 5 days | |
|
NLA (Trim, front, Pro 54 in. | 19-11-774-05 | 00486495 | - | 11 days | |
|
Screw, #6 x 1/2 ph fl hd hrnd, 410ss | 14-91-052-01 | 00189417 | A | 5 days | |
|
Screw, #8 x 1/2 ph pn hd | 14-91-026 | 00411500 | B | 5 days | |
|
Screw, #8a x 3/8 ph pn hdzinc | 14-91-102 | 00189250 | C | 5 days | |
|
Cable tie, 4 in. long | 20-02-160 | 00411043 | NS | 11 days | |
|
Bushing, open/close | 50-09-247 | 00411048 | NS | 5 days | |
|
Wire harness, Pro wall oven, 48/54 | 19-11-827 | NS | 11 days | ||
|
Screw, #10 x 1 ph pn hdtype ab | 14-91-037 | 10008922 | NS | 5 days | |
|
NLA , use 411093 (screw 8-32 x 3/8 pan hd, ph, zinc | 14-90-162 | 00411093 | NS | 5 days |
