Model# PGR486GLZS

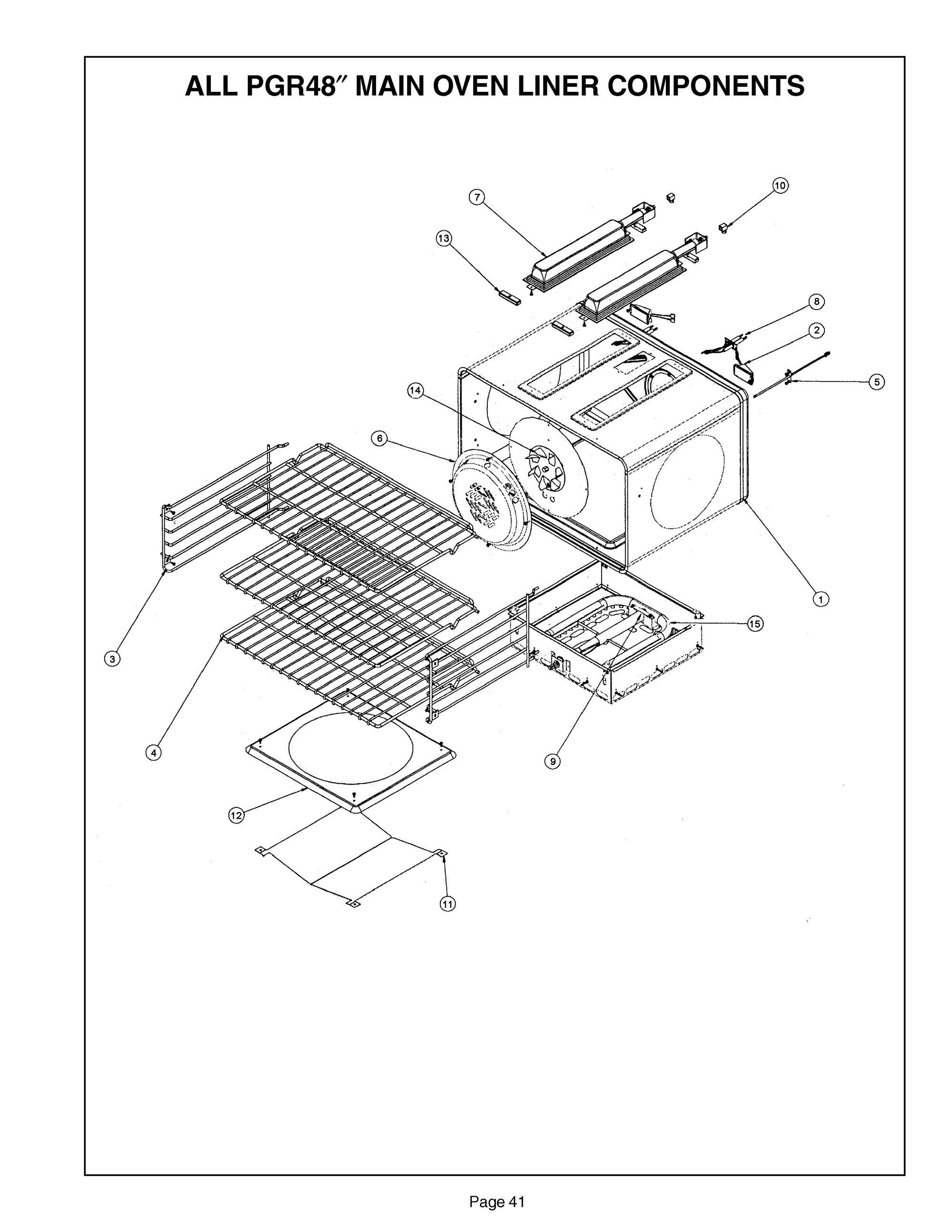

The image and part list below are associated with the component: 40 - MAIN OVEN LINER:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Wire harness | 219904 | - | 11 days | ||
|
Broil pan/grid, large | 368970 | 00368970 | - | 5 days | |
|
Cover | 418983 | 00418983 | - | 5 days | |
|
Tube | 432538 | 00432538 | - | 11 days | |
|
Wire harness | 470048 | 00470048 | - | 5 days | |
|
Wire harness | 470049 | 00470049 | - | 11 days | |
|
Wire harness | 143461 | 00143461 | - | 5 days | |
|
Wire | 420342 | 00420342 | - | 5 days | |
|
Wire harness | 470050 | 00470050 | - | 11 days | |
|
Cover, Convect Fan, right Stipple | 484690 | 00487269 | - | 11 days | |
|
Screw, # 10 x 1/2 pan head, phl tek s/d | 418078 | 00418078 | - | 5 days | |
|
Screw, # 10 x 1/2 in., ab phl truss, ss | 415072 | 00415072 | - | 5 days | |
|
Oven | 143463 | 00143463 | 1 | 11 days | |
|
Pipe connector | 418882 | 00418882 | 10 | 11 days | |
|
Bake reflector plate, PGR30/36 ranges | 433780 | 00433780 | 11 | 5 days | |
|
Bottom cover, cavity, PGR30/36 ranges | 433781 | 00433781 | 12 | 5 days | |
|
Spacer, PGR range | 419909 | 00419909 | 13 | 11 days | |
|
Convection fan motor assy. | 487551 | 00497756 | 14 | 5 days | |
|
Ignitor | 418885 | 00418885 | 15 | - |
|
|
Lamp, halogen, 5W | 418107 | 10007220 | 2 | 5 days | |
|
Rack support, all PDR/PGR | 418089 | 00418089 | 3 | 5 days | |
|
Shelf | 431907 | 00431907 | 4 | 2 days | |
|
Sensor, RTD, Pro | 418121 | 00627375 | 5 | 5 days | |
|
Cover, fan | 489125 | 00489125 | 6 | 5 days | |
|
Radiant burner assembly | 432534 | 00665910 | 7 | 5 days | |
|
NLA (Ignitor) | 418886 | 00437748 | 8 | 5 days | |
|
Trident burner, PGR | 432537 | 00432537 | 9 | 5 days |
