Model# PGR486GLZS

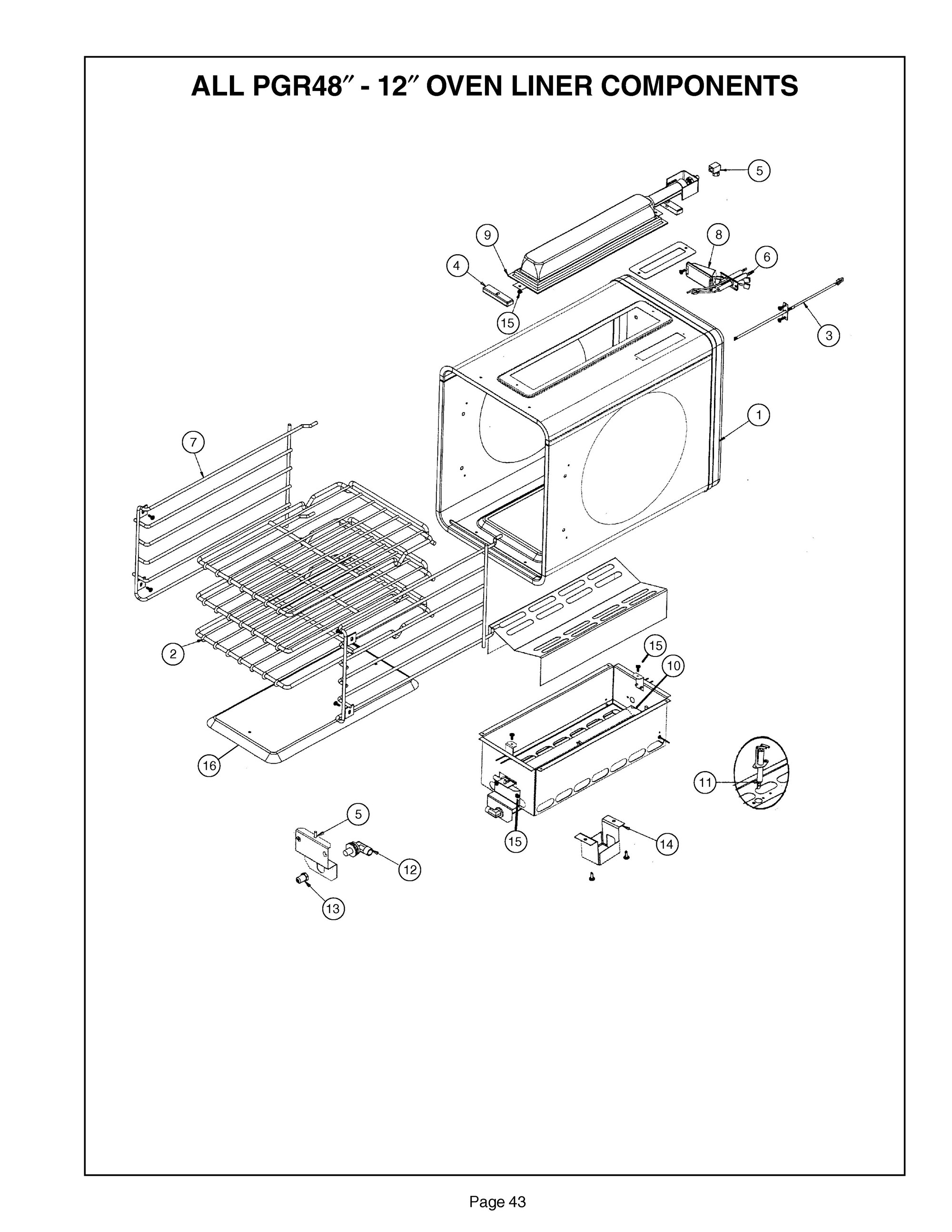

The image and part list below are associated with the component: 42 - 12 INCH OVEN LINER:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Wire harness | 219904 | 00219904 | - | 11 days | |
|
Pan, SM Broiler w/ Grill | 368969 | 00368969 | - | 5 days | |
|
Cover | 431881 | 00431881 | - | - |
|
|
Wire harness | 219903 | 00219903 | - | 5 days | |
|
Wire harness | 219989 | 00219989 | - | 11 days | |
|
Power cord | 239538 | 00239538 | - | 5 days | |
|
Oven | 143462 | 1 | 11 days | ||
|
Burner | 431880 | 00431880 | 10 | 5 days | |
|
Ignitor | 418885 | 00418885 | 11 | - |
|
|
Elbow, Bulkhd 5/16 Tube x 3/8 | 415034 | 00415034 | 12 | 5 days | |
|
Jet | 416779 | 00416779 | 13 | 5 days | |
|
Cover | 418983 | 00418983 | 14 | 5 days | |
|
Screw, # 10 x 1/2 in., ab phl truss, ss | 415072 | 00415072 | 15 | 5 days | |
|
Cover | 436401 | 00436401 | 16 | 5 days | |
|
Shelf | 432248 | 00432248 | 2 | 5 days | |
|
Sensor, RTD, Pro | 418121 | 00627375 | 3 | 5 days | |
|
Spacer, PGR range | 419909 | 00419909 | 4 | 11 days | |
|
Pipe connector | 418882 | 00418882 | 5 | 11 days | |
|
NLA (Ignitor) | 418886 | 00437748 | 6 | 5 days | |
|
Rack support, all PDR/PGR | 418089 | 00418089 | 7 | 5 days | |
|
Lamp, halogen, 5W | 418107 | 10007220 | 8 | 5 days | |
|
Radiant burner assembly | 432534 | 00665910 | 9 | 5 days |
