Model# PGR484GGZS

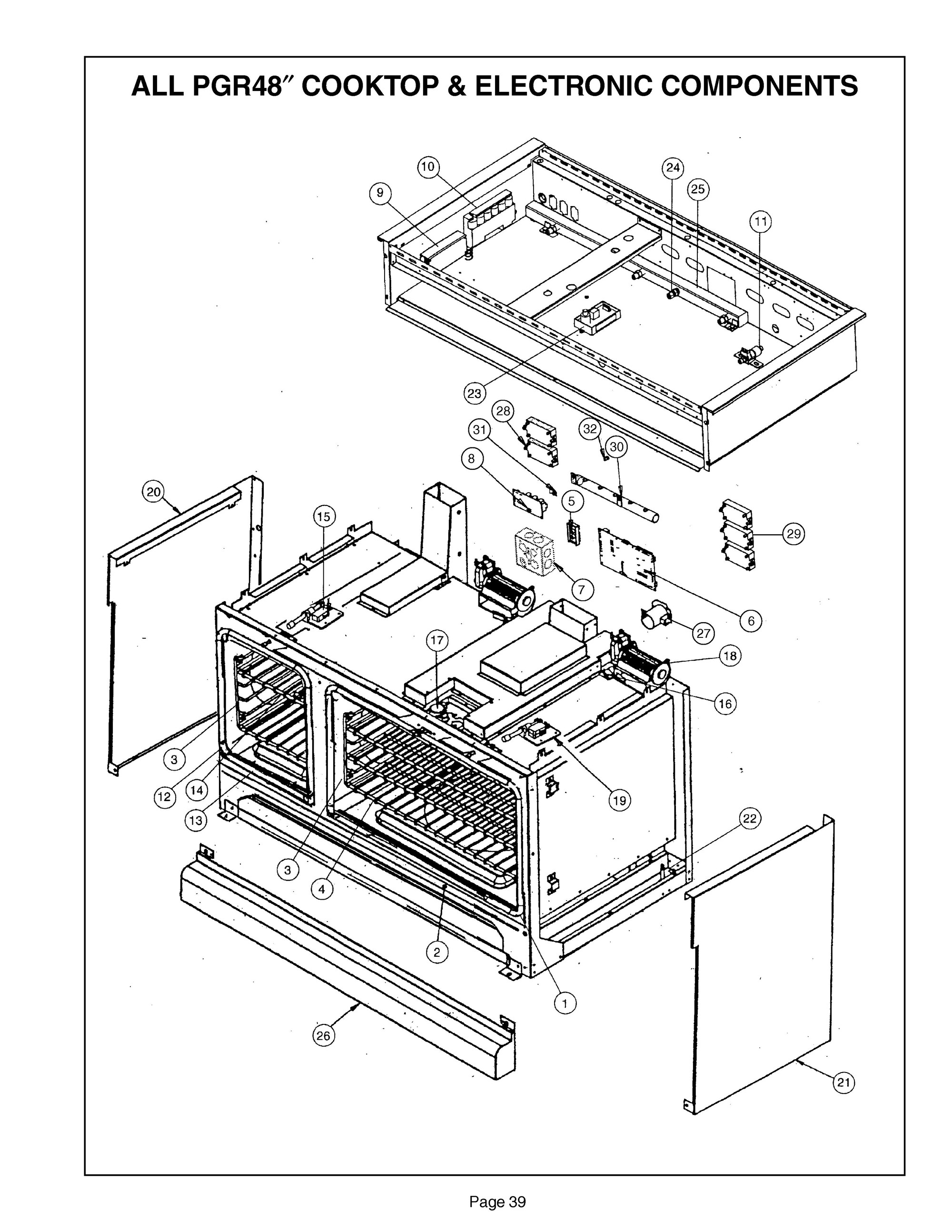

The image and part list below are associated with the component: 38 - COOKTOP & ELECTRONIC COMPONENTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Cover, junction box, PDR/PGR (see 418530 J-box | 418531 | 00418531 | - | 11 days | |
|
Gasket | 418118 | 00686195 | 1 | - |
|
|
Spark re-ignitor | 189010 | 00189010 | 10 | 4 days | |
|
NLA (Solenoid) | 189007 | 00423022 | 11 | 4 days | |
|
Sleeve | 432246 | 00703375 | 12 | 4 days | |
|
Air channel | 432247 | 00432247 | 13 | 11 days | |
|
Shelf | 432248 | 00432248 | 14 | 4 days | |
|
Door switch | 489370 | 00489370 | 15 | 4 days | |
|
Switch, air interlock | 415050 | 00415050 | 16 | 4 days | |
|
Door lock, mechanical (motorized, all PDR/PGR) | 489185 | 00489185 | 17 | 4 days | |
|
Cooling fan | 486894 | 00486894 | 18 | 4 days | |
|
Door switch, aux. oven, Pro | 418323 | 00418323 | 19 | 4 days | |
|
Air channel | 143420 | 2 | 11 days | ||
|
Side panel | 143435 | 00143435 | 20 | 11 days | |
|
Side panel | 143436 | 00143436 | 21 | 4 days | |
|
Leveling leg | 415007 | 00415007 | 22 | 4 days | |
|
Ignitor | 418572 | 00618624 | 23 | 4 days | |
|
Manifold adapter, flared, 3/4 x 5/8 in. | 418327 | 00418327 | 24 | 11 days | |
|
Tube | 143473 | 00143473 | 25 | 11 days | |
|
Panel, kickplate, PGR/PDR 48 | 239488 | 00241850 | 26 | 4 days | |
|
Hi-temp cutout (thermal overload protector | 487206 | 00487206 | 27 | 4 days | |
|
|
Ignitor | 418572 | 00618624 | 28 | 4 days | |
|
Gasliter, broil, PGR ranges | 418880 | 00418880 | 29 | 4 days | |
|
Rack support, all PDR/PGR | 418089 | 00418089 | 3 | 4 days | |
|
Tube | 432538 | 00432538 | 30 | 11 days | |
|
Nut, Tinnerman, C-33924-1420-4 | 415088 | 00415088 | 31 | 11 days | |
|
Bolt, 1/4-20 x 1/2 Hex Std Z | 415075 | 00415075 | 32 | 11 days | |
|
Shelf | 431907 | 00431907 | 4 | 1 days | |
|
Housing, terminal block, Pro | 489199 | 00489199 | 5 | 4 days | |
|
NLA (PC board, main oven, PGR48 range) | 431906 | 00709786 | 6 | 4 days | |
|
Junction box, PDR/PGR (see 418531 cover | 418530 | 00418530 | 7 | 11 days | |
|
|
PC board | 432252 | 00709786 | 8 | 4 days | |
|
Simmer controller | 189009 | 00645446 | 9 | 4 days |
