Model# PFE28KYNCFS

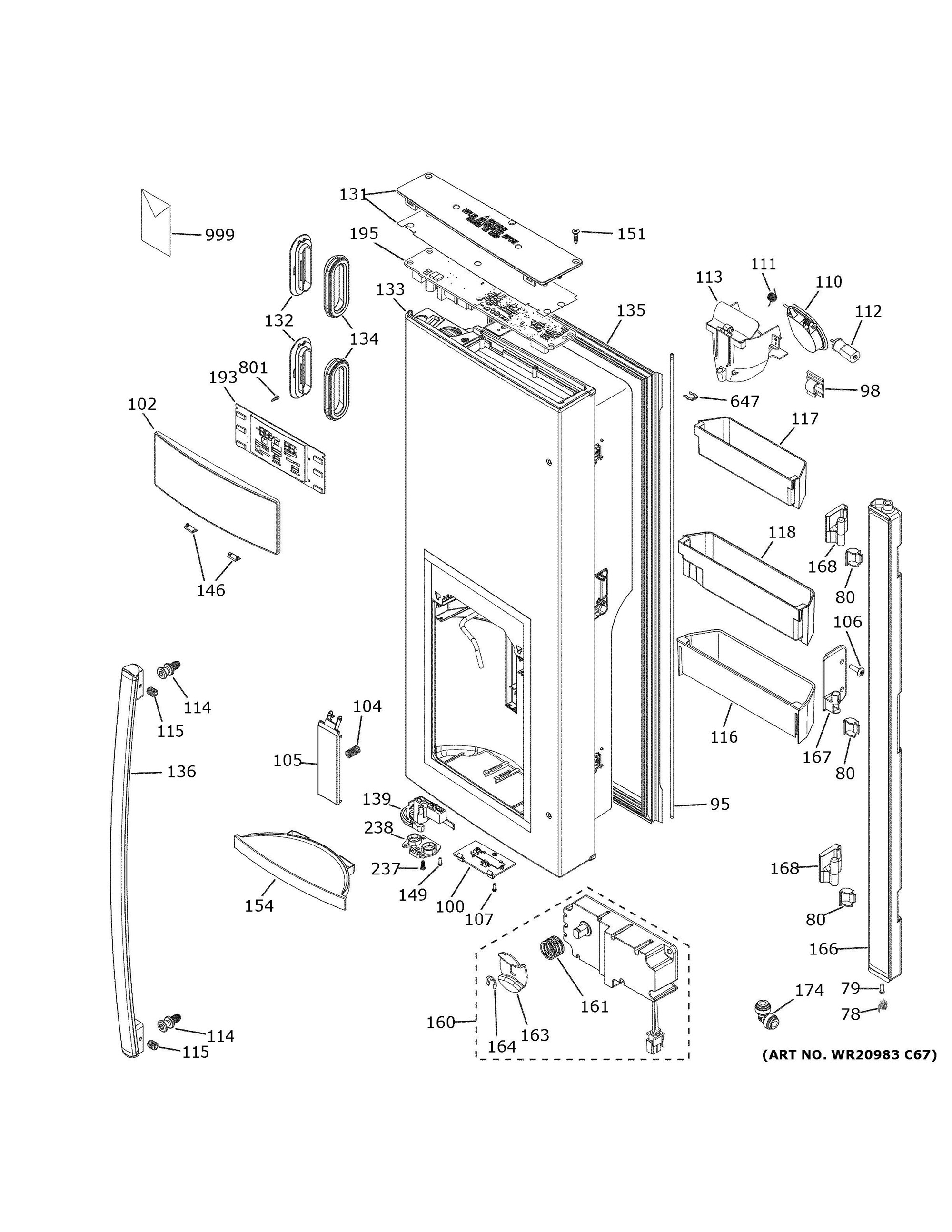

The image and part list below are associated with the component: DISPENSER DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COVER LED FZ ASM | WR55X23636 | WR55X30604 | 100 | 11 days | |
|
CAP TOUCH AUTOFILL STAINLESS | WR17X27465 | 102 | 11 days | ||
|
SPRING | WR01X11027 | 104 | 5 days | ||
|
PADDLE & SWITCH AUTOFILL ASM | WR17X26308 | 105 | 11 days | ||
|
SCR 8-18 FLP 1/2 S | WR01X11054 | 106 | 11 days | ||
|
SCR 8-18 FLP 1/2 S | WR01X11029 | 107 | 11 days | ||
|
DUCT DOOR ASM | WR17X13057 | WR17X13241 | 110 | 11 days | |
|
SPRING DUCT DOOR | WR01X11017 | 111 | 5 days | ||
|
MOTOR DUCT DOOR | WR60X10344 | 112 | 5 days | ||
|
SINGLE TUBE ICE FUNNEL | WR17X30651 | 113 | 11 days | ||
|
DOOR HANDLE FASTENER | WR01X11007 | 114 | 5 days | ||
|
SET SCREW | WR01X11014 | 115 | 5 days | ||
|
BIN DOOR ICE BTM | WR71X24976 | 116 | 11 days | ||
|
BIN ICE DOOR TOP LH | WR71X11045 | 117 | 5 days | ||
|
BIN ICE DOOR MID LH | WR71X11046 | 118 | 5 days | ||
|
PCB COVER ASM DGY | WR17X13205 | 131 | 11 days | ||
|
COLLAR PORT | WR14X25124 | 132 | 11 days | ||
|
STAINLESS REFRIGERATOR LEFT DOOR | WR78X31635 | WR78X37452 | 133 | 11 days | |
|
PORT GASKET | WR14X10364 | 134 | 11 days | ||
|
GASKET FF DGY | WR14X10377 | WR14X29300 | 135 | 11 days | |
|
STAINLESS REFRIGERATOR HANDLE | WR12X31641 | 136 | 11 days | ||
|
REFRIGERATOR DOOR CLOSURE LEFT | WR11X32040 | WR11X38266 | 139 | 11 days | |
|
SHIELD LED LIGHT | WR02X13655 | 146 | 5 days | ||
|
SCREW 8-18 HI/LO 5/8 | WR01X10196 | 149 | 5 days | ||
|
SCR 8-18 FLP 1/2 S | WR01X11028 | 151 | 11 days | ||
|
SILVER DRIP TRAY | WR17X32580 | WR17X34477 | 154 | 11 days | |
|
AUGER MOTOR ASM | WR60X10345 | WR49X10322 | 160 | 5 days | |
|
SPRING CLUTCH AM | WR02X13645 | 161 | 11 days | ||
|
CLUTCH COUPLING AM | WR02X13647 | 163 | 11 days | ||
|
E CLIP | WR02X13648 | 164 | 11 days | ||
|
DORIAN GRAY ARTICULATING MULLION | WR17X13240 | 166 | 11 days | ||
|
HINGE CENTER MULLION | WR13X10984 | 167 | 11 days | ||
|
HINGE MULLION | WR13X10985 | 168 | 5 days | ||
|
CONNECTOR 90 DEG 5/16 | WR02X13737 | 174 | 11 days | ||
|
DISPLAY BOARD AUTOFILL | WR55X30487 | WR55X45226 | 193 | 11 days | |
|
PCB ASM DOOR CONTROL | WR55X23065 | WR55X44126 | 195 | 11 days | |
|
SCR 10-24 AB RNT 20 5/8 | WR01X11032 | 237 | 5 days | ||
|
STOP DOOR RH/LH ASM | WR02X13634 | 238 | - |
|
|
|
QUICK CLIP CONNECTOR 1/4 | WR01X11041 | 647 | 5 days | ||
|
SPRING HINGE MULLION | WR01X11052 | 78 | 5 days | ||
|
SLEEVE SPRING MULLION | WR01X11053 | 79 | 5 days | ||
|
HINGE CAP | WR02X13739 | 80 | 11 days | ||
|
6-19 X 1/4 TORX PAN HEAD | WD02X10129 | 801 | 5 days | ||
|
PEX WATER LINE | WR02X32127 | 95 | 11 days | ||
|
CLIP PHGL | WR01X11064 | 98 | 11 days | ||
|
PM MINI MANUAL AND WIRING | 31-1000465 | 999 | 11 days | ||
|
PM QUICK USE & CARE | 49-60714 | 999 | 11 days |
