Model# PFCS1NFCB SS

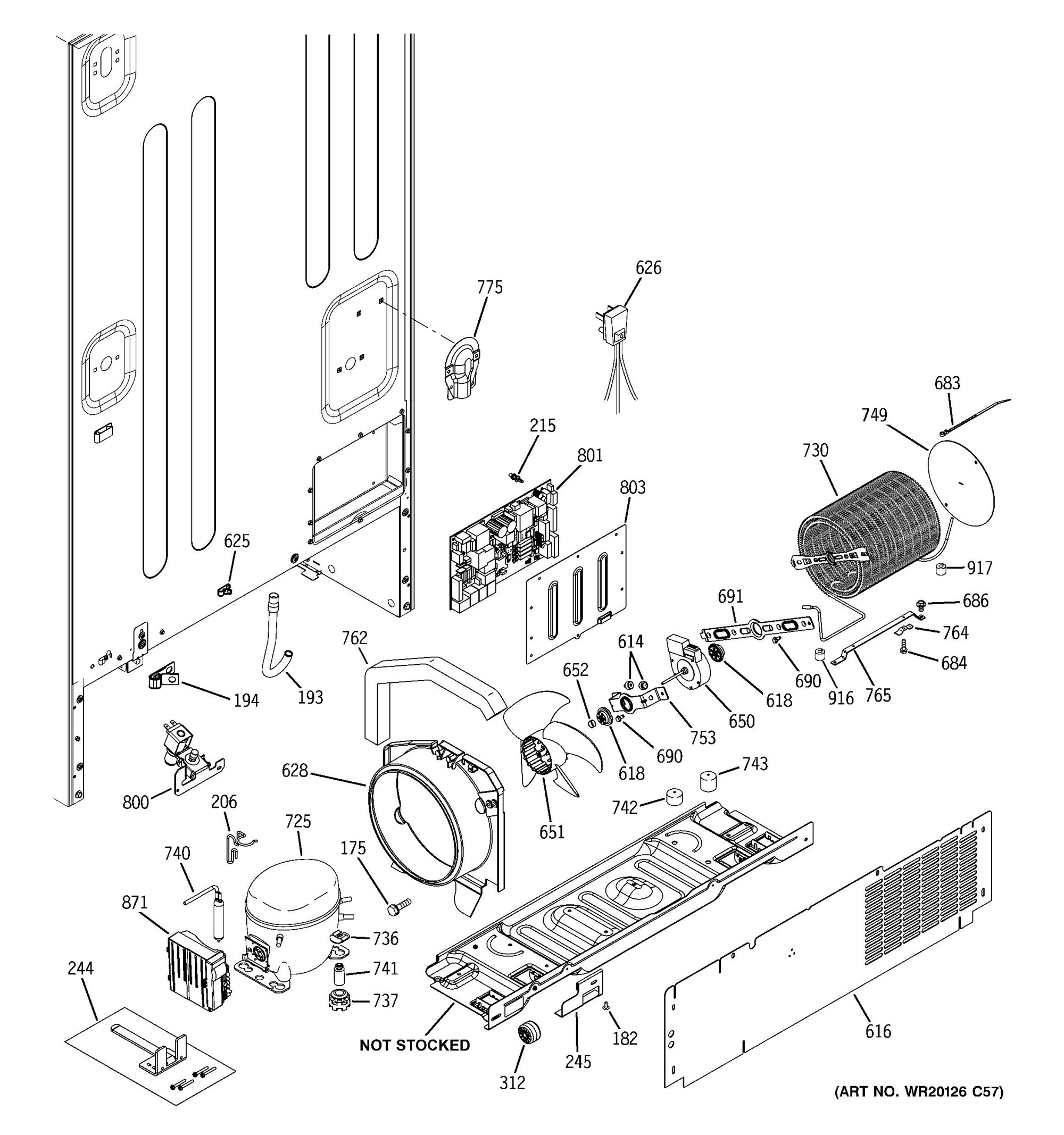

The image and part list below are associated with the component: MACHINE COMPARTMENT:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCR 8-18 AB IHW 5/8 S | WR01X10035 | WR01X10652 | 175 | 3 days | |
|
SCR 10-32 B IHXW 1/2 | WR01X10622 | 182 | 3 days | ||
|
TUBE DRAIN | WR02X11426 | 193 | 3 days | ||
|
CLAMP CABLE | WR01X10684 | 194 | 3 days | ||
|
CLIP DRAIN TUBE | WR02X12377 | 206 | 11 days | ||
|
STAND OFF | WR02X10663 | 215 | - |
|
|
|
KIT ANTI TIP ASM | WR49X10179 | 244 | 11 days | ||
|
ANTI TIP BASE BRACKET | WR17X12267 | 245 | 3 days | ||
|
WHEEL MOBILITY REAR | WR02X10695 | 312 | 11 days | ||
|
BUMPER LID | WR02X10540 | 614 | 3 days | ||
|
COVER ACCESS | WR82X10109 | WR82X10100 | 616 | 11 days | |
|
GROMMET EVAP FAN | WR02X11331 | 618 | 3 days | ||
|
CLAMP TUBE | WR02X12265 | WR1X5278 | 625 | 11 days | |
|
CORD POWER ASM | WR23X0108 | WR23X10300 | 626 | 3 days | |
|
SHROUD CONDENSER | WR17X12668 | 628 | 3 days | ||
|
MOTOR DC COND FAN | WR60X10216 | WR60X10209 | 650 | 3 days | |
|
BLADE CONF FAN ASM | WR60X10206 | WR60X24484 | 651 | 11 days | |
|
RING COMPRESSION | WR02X12149 | 652 | 3 days | ||
|
WIRE TIE | WR02X11027 | 683 | 11 days | ||
|
SCR 8-32 AB IHWS 3/8 S | WR01X10602 | 684 | 3 days | ||
|
SCR 10-32 TT HXW 5/16 S | WR01X10252 | WR01X10654 | 686 | 3 days | |
|
SCR 8-32 T HXW 3/8 S | WR01X1466 | 690 | 11 days | ||
|
BRACKET COND FAN (REAR) | WR02X10593 | 691 | 3 days | ||
|
INVERTER COMPRESSOR EMB | WR87X10123 | WR87X10111 | 725 | 3 days | |
|
COND REPL KIT | WR84X10022 | 730 | 3 days | ||
|
CLIP COMPRESSOR MOUNT | WR02X8203 | WR2X8203 | 736 | 3 days | |
|
GROMMET | WR02X10099 | WR02X22869 | 737 | 11 days | |
|
DRYER | WR86X96 | WR86X25269 | 740 | 11 days | |
|
STUD MTG COMPR | WR01X1779 | WR1X1779 | 741 | 3 days | |
|
SUPPORT CONDENSER | WR02X10587 | 742 | 11 days | ||
|
SUPPORT CONDENSER | WR02X10588 | 743 | 11 days | ||
|
BAFFLE COND AIR | WR17X11978 | WR17X13159 | 749 | 3 days | |
|
BRKT COND FAN (MTG) | WR02X10521 | WR02X11863 | 753 | 3 days | |
|
FOAM STRIP SE ADH | WR14X10053 | 762 | 3 days | ||
|
CLIP, COND MNT | WR02X9000 | WR2X9000 | 764 | 11 days | |
|
BRACKET CONDENSER BAR | WR17X10763 | 765 | 11 days | ||
|
COVER WATER LINE | WR17X13124 | 775 | 11 days | ||
|
VALVE AND TUBE ASM | WR57X10086 | 800 | 3 days | ||
|
BOARD MAIN COMBINED HMI | WR55X11062 | WR55X11064 | 801 | 3 days | |
|
MAIN BOARD ENCLOSURE ASM | WR02X12025 | 803 | 3 days | ||
|
INVERTER ASM | WR55X11099 | WR87X29409 | 871 | 11 days | |
|
GROMMET | WR02X13569 | 916 | 11 days | ||
|
SOUND DAMPER | WR02X13573 | 917 | 11 days |
