Model# PDT750SSF5SS

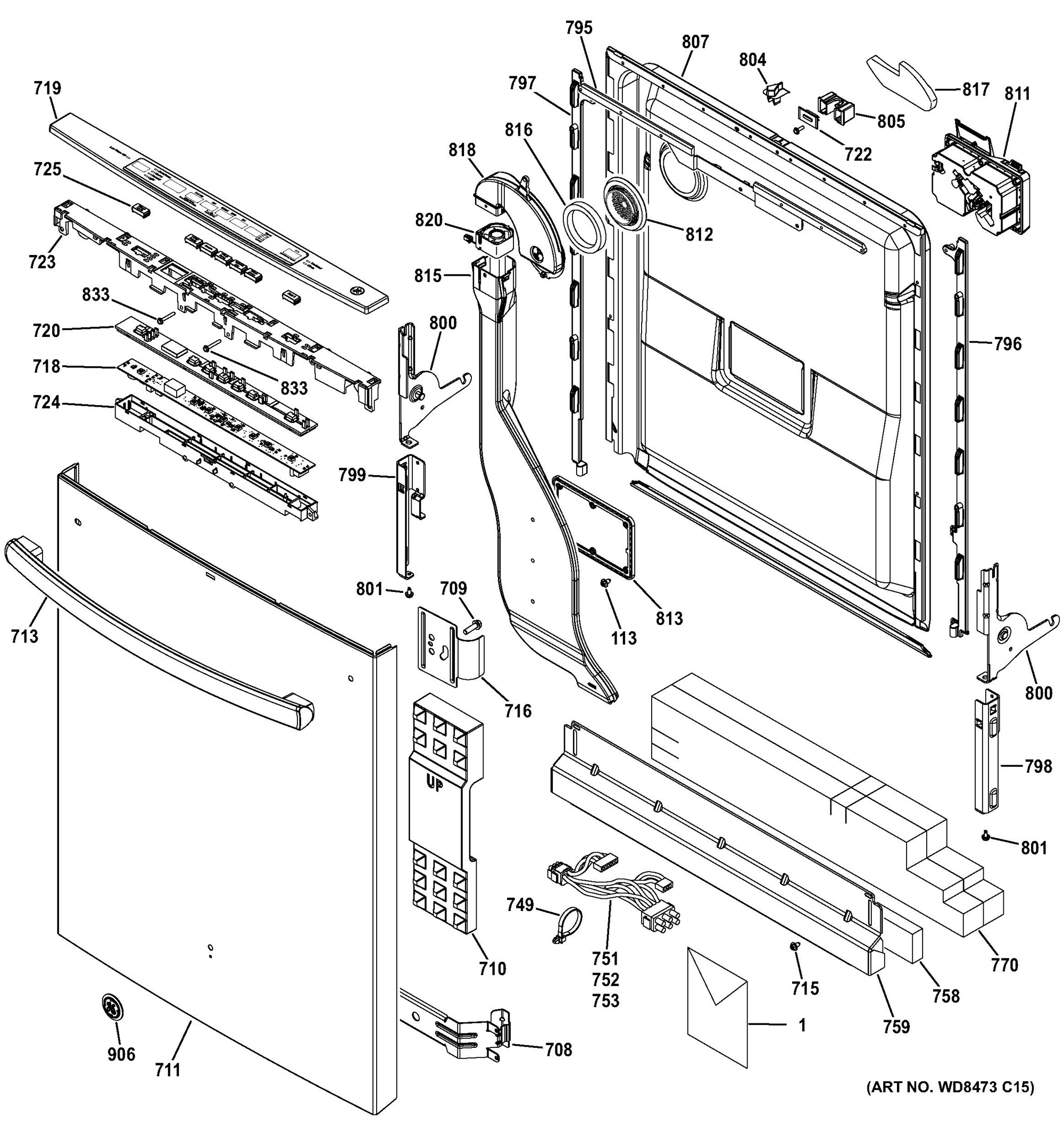

The image and part list below are associated with the component: ESCUTCHEON & DOOR ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM INSTALL INSTRUCTIONS | 31-31512 | 1 | 11 days | ||
|
SCR 1/4-20 BT CB .563 ZN | WD02X10211 | 1 | 11 days | ||
|
PM OWNERS MANUAL | 49-55085 | 1 | 11 days | ||
|
INSERT MINI MANUAL | 165D9739P015 | 1 | 11 days | ||
|
PM MINI-MANUAL | 31-30671 | 1 | 11 days | ||
|
BRACE DOOR ASM | WD30X10045 | 708 | 11 days | ||
|
BLOCK FOAM DOOR | WD01X10585 | 710 | 11 days | ||
|
KIT DOOR ASM OUTER | WD34X20470 | WD34X20532 | 711 | 1 days | |
|
DOOR HANDLE ASM | WD09X21321 | 713 | 11 days | ||
|
SCR 10-32 GX HXW 3/8 | WD02X10220 | 715 | 1 days | ||
|
BRACKET HANDLE | WD01X20135 | 716 | 11 days | ||
|
KIT SERVICE UI LCD CSTN | WD21X20726 | WD21X22074 | 718 | 11 days | |
|
BEZEL & CVR CONSOLE ASM | WD34X21657 | WD34X24296 | 719 | 11 days | |
|
SILICONE LIGHT PIPE | WDX20228 | 720 | 11 days | ||
|
LENS AND ADHESIVE ASM | WD09X20226 | 722 | 11 days | ||
|
CONSOLE TOP CONTROL | WD12X20223 | 723 | 11 days | ||
|
HOUSING BOTTOM | WD12X20225 | 724 | 11 days | ||
|
BUTTON AND GRAPHICS ASM | WD09X21274 | WD35X21800 | 725 | 11 days | |
|
|
BUTTON AND GRAPHICS ASM | WD09X21275 | WD35X21800 | 725 | 11 days | |
|
|
P2 BUTTON ASM KIT - SS | WD35X21800 | 725 | 11 days | ||
|
WIRE TIE | WD01X20122 | 749 | 11 days | ||
|
HARNESS ASM AC | WD21X20741 | 751 | 11 days | ||
|
HARNESS ASM DC | WD21X20217 | WD21X22275 | 752 | 11 days | |
|
HARNESS ASM DOOR | WD21X20149 | 753 | 1 days | ||
|
INSULATION TOE KICK | WD01X10581 | WD27X21334 | 758 | 11 days | |
|
TOE KICK ASM BK | WD27X10392 | WD27X34579 | 759 | 11 days | |
|
BARRIER TOEKICK | WD01X10629 | WD30X28098 | 770 | 11 days | |
|
ATTACHMENT STRIP TOP | WD01X20220 | 795 | 11 days | ||
|
ATTACH STRIP | WD01X10633 | WD01X22836 | 796 | 11 days | |
|
ATTACH STRIP | WD01X10634 | WD01X34879 | 797 | 11 days | |
|
BRKT SUPPORT HINGE ASM | WD01X20126 | WD01X22513 | 798 | 11 days | |
|
BRKT SUPPORT HINGE ASM | WD01X20127 | WD01X22512 | 799 | 11 days | |
|
ARM HINGE ASM | WD14X20128 | 800 | 1 days | ||
|
ARM HINGE ASM | WD14X20129 | 800 | 1 days | ||
|
SCR 8-16 HXW 1/2 SS | WD02X10067 | 801 | 1 days | ||
|
STRIKER LATCH | WD13X10071 | 804 | 1 days | ||
|
STRIKER ADAPTER | WD13X10068 | WD13X22837 | 805 | 11 days | |
|
KIT DOOR INNER ASM | WD31X20489 | WD31X29639 | 807 | 11 days | |
|
MODULE DETERGENT | WD12X20247 | WD12X32799 | 811 | - |
|
|
COVER VENT | WD12X10450 | WD12X10472 | 812 | 1 days | |
|
PLATE DETERGENT | WD12X10462 | 813 | 11 days | ||
|
VENT CONDUIT ASM | WD12X20218 | 815 | 1 days | ||
|
DOOR VENT SEAL | WD08X10092 | 816 | 1 days | ||
|
FOAM DIVERTER FRONT | WD12X10428 | 817 | 11 days | ||
|
TRANSITION PIECE ASM | WD12X21318 | WD12X23336 | 818 | 11 days | |
|
VENT FAN ASM | WD24X20256 | 820 | 1 days | ||
|
SCR 10-16 PL PNT 2.25 S | WD02X20140 | 833 | 11 days | ||
|
BADGE GE ASM | WR04X10181 | 906 | 1 days |
