Model# MWL111RBW2

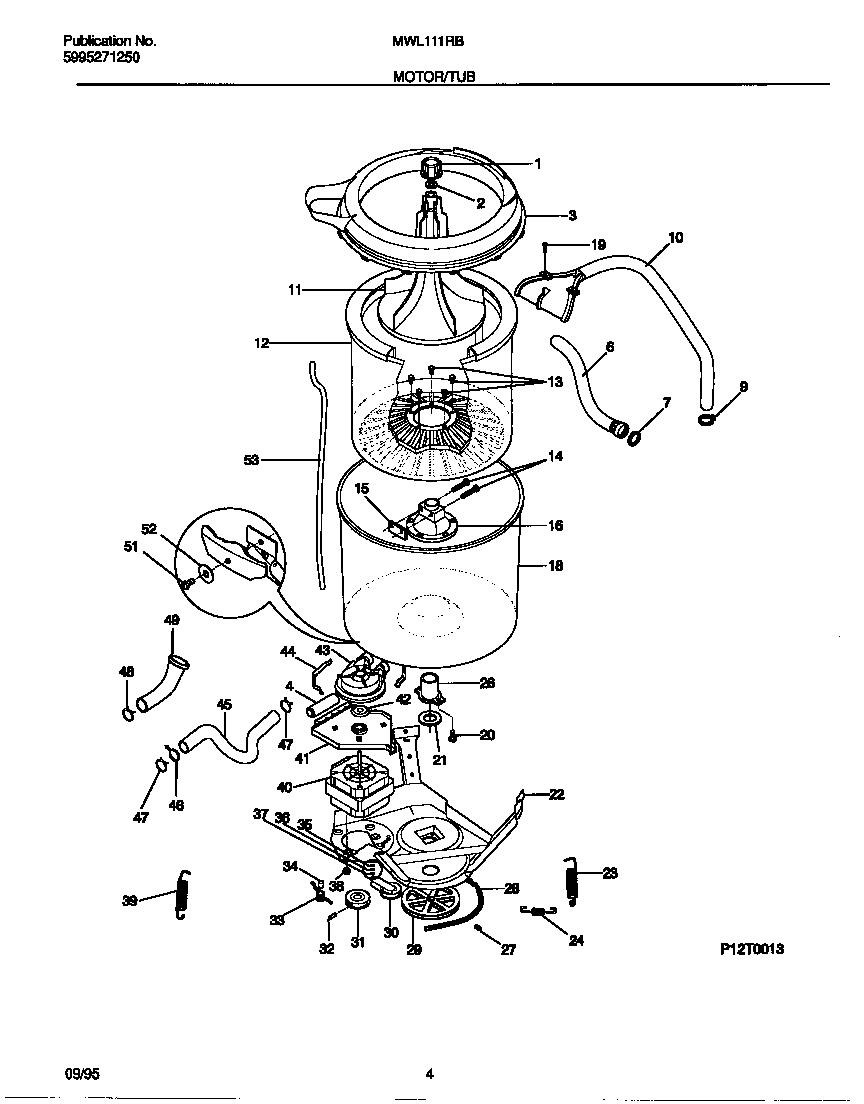

The image and part list below are associated with the component: 03 - MOTOR/TUB:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
INSERT-SPRING ADJ | 5303212877 | *15321 | 2 days | ||
|
CAP-AGITATOR, BLACK | 5303210310 | 5303318537 | 1 | 11 days | |
|
HOSE & NOZZLE | 3204400 | 134211701 | 10 | 2 days | |
|
AGITATOR | 5303210313 | 5303210314 | 11 | 11 days | |
|
TUB-SPIN | 5303210315 | 12 | 11 days | ||
|
Screw-trunnion,unc2ax.625 `.312-18 ,(5) | 5303283293 | 137546400 | 13 | 11 days | |
|
SCREW-LOCKPLATE, HX, .312-18 X .1.625 | 131192800 | 137539500 | 14 | 2 days | |
|
LOCKPLATE | 5308001923 | 137107000 | 15 | 2 days | |
|
TRUNNION | 131026001 | 16 | 11 days | ||
|
TUB-SPLASH | 3204404 | 131557200 | 18 | 2 days | |
|
SCREW, 10-16 X .75 | 131205300 | 19 | 2 days | ||
|
SEAL-CAP | 5303210312 | 2 | 11 days | ||
|
SCREW-TUB BEARING, PPH B ST/Z, 8-12 X .75 | 3205150 | 20 | 2 days | ||
|
WASHER | 5308002401 | 21 | 2 days | ||
|
LEG & DOME ASSY | 131373610 | 22 | 2 days | ||
|
SPRING-VERTICAL (SHORT) | 5303208858 | 134886600 | 23 | 2 days | |
|
SPRING-HORIZONTAL | 131373900 | 24 | 2 days | ||
|
BEARING-OUTER TUB | 3204405 | 26 | 2 days | ||
|
SCREW-SET, HHD CUP PT, 5/16-18 X .85, PULLEY, TRANSM. | 5303304825 | 5303270023 | 27 | 2 days | |
|
BELT-WASHER | 131234000 | 134511600 | 28 | 2 days | |
|
PULLEY-TRANSMISSION | 131361800 | 131498301 | 29 | 2 days | |
|
COVER-SPLASH TUB | 131398300 | 131398303 | 3 | 2 days | |
|
ARM-IDLER | 3204422 | 131862900 | 30 | 2 days | |
|
PULLEY-MOTOR | 3204423 | 31 | 2 days | ||
|
PIN-ROLL | 3204424 | 32 | 2 days | ||
|
SPRING TORSION | 3204425 | 33 | 2 days | ||
|
SLEEVE-IDLER | 3204426 | 34 | 2 days | ||
|
RING-RETAINING | 3161433 | 35 | 2 days | ||
|
WASHER-PIVOT SHAFT | 5303261031 | 36 | 2 days | ||
|
WASHER-SPRING | 5303161306 | 37 | 2 days | ||
|
NUT-LOCK, MOTOR | 5303283079 | 5303318708 | 38 | 2 days | |
|
SPRING-VERTICAL | 5303208860 | 134885900 | 39 | 2 days | |
|
CAPACITOR | 131212301 | 4 | - |
|
|
|
MOTOR-MAIN | 131369800 | 134183200 | 40 | 2 days | |
|
SHIELD-MOTOR | 131223600 | 41 | 11 days | ||
|
SLINGER-PUMP | 3204451 | 42 | 11 days | ||
|
PUMP-COMPLETE | 131208500 | 43 | 2 days | ||
|
CLIP-PUMP | 131430600 | 44 | 2 days | ||
|
HOSE-PMP TO COUPLER | 3204454 | 45 | 11 days | ||
|
CLIP-HOSE TO LEG | 3204455 | 131462500 | 46 | - |
|
|
CLAMP-HOSE | 3204456 | 47 | 2 days | ||
|
CLAMP-HOSE TO TUB | 3204457 | 5304536802 | 48 | 11 days | |
|
HOSE-PUMP TO TUB | 3204458 | 49 | 2 days | ||
|
SCREW-LEG TO TUB, HWH 23, .31-18 X .875 | 3204459 | 51 | 11 days | ||
|
WASHER-LEG, IDX.040, 1.25 ODX.335 | 131315800 | 3005891 | 52 | 2 days | |
|
TUBE, PRESSURE | 5300771996 | 5304401845 | 53 | 2 days | |
|
HOSE-INLET | 5303271009 | 5303912532 | 6 | 11 days | |
|
WASHER-INLET HOSE | 5303161296 | 7 | 2 days | ||
|
CLAMP-HOSE, NOZZLE | 5303304824 | 5304488479 | 9 | 2 days |
