Model# MVWP576KW0

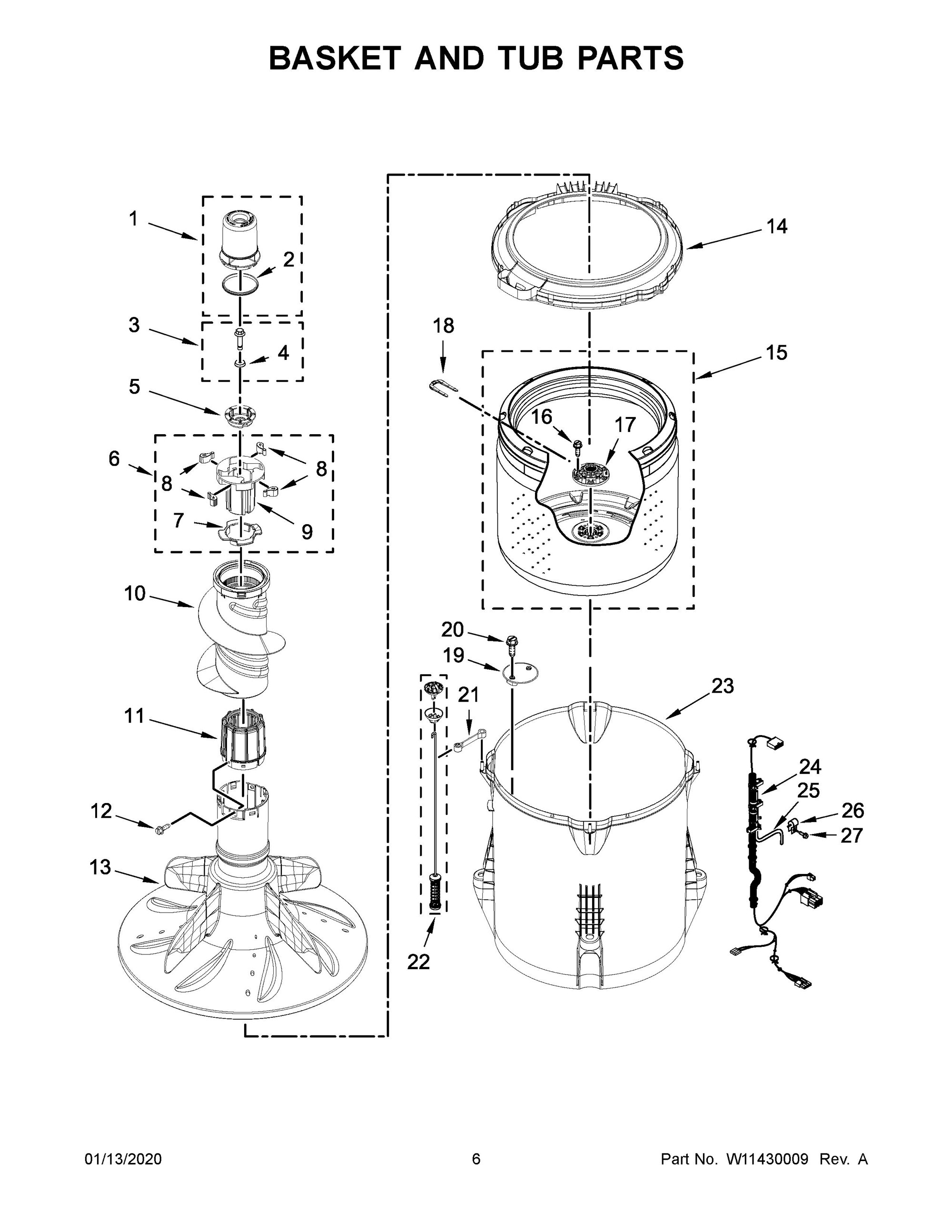

The image and part list below are associated with the component: 04 - BASKET AND TUB PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DISPENSER, FABRIC SOFTENER | W10860509 | W11160642 | 1 | 2 days | |
|
AUGER, AGITATOR | W11182552 | W11480892 | 10 | 11 days | |
|
COUPLE, AGITATOR | W10715787 | W11561052 | 11 | 11 days | |
|
SCREW | W10908157 | W11596047 | 12 | 11 days | |
|
BASE, AGITATOR | W10715783 | W11418231 | 13 | - |
|
|
TUB RING | W10556325 | WPW10556325 | 14 | 2 days | |
|
BASKET ASSEMBLY | W10521298 | 15 | - |
|
|
|
SCREW | 8533953 | WP8533953 | 16 | 2 days | |
|
HUB - DRIVEN, BASKET | W10396887 | W10528947 | 17 | - |
|
|
RETAINER, DRIVE BLOCK | W11284133 | W11385424 | 18 | 11 days | |
|
FILTER, DRAIN PUMP | W10215093 | WPW10215093 | 19 | 2 days | |
|
Seal, Cap | 358912 | WP358912 | 2 | 2 days | |
|
Screw | 8533928 | WP8533928 | 20 | 2 days | |
|
STRAP, SNUBBER | W10839119 | W11403873 | 21 | 11 days | |
|
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS) | W10821954 | W11682068 | 22 | 11 days | |
|
TUB | W10238301 | W10324648 | 23 | - |
|
|
HARNESS, LOWER (INCLUDES PRESSURE HOSE) | W10843660 | W11744742 | 24 | 11 days | |
|
HOSE, PRESSURE SWITCH | W10531633 | WP353244 | 25 | 2 days | |
|
CLAMP, CABLE | W10005430 | 26 | 2 days | ||
|
SCREW | 8533943 | WPW10109200 | 27 | 2 days | |
|
SCREW AND WASHER | W10003790 | W10772621 | 3 | 2 days | |
|
Washer | 3949550 | WP3949550 | 4 | 2 days | |
|
RETAINER, CAM | W10715784 | W11661945 | 5 | 11 days | |
|
ASSEMBLY, CAM COMPLETE | W10782372 | W11158175 | 6 | 11 days | |
|
BEARING, CAM | 8055141 | WP8055141 | 7 | 2 days | |
|
Dog, Agitator Clutch | 3366877 | 8 | 11 days | ||
|
AGITATOR, CAM | 8055142 | 285825 | 9 | 2 days |
