Model# MVWB865GW1

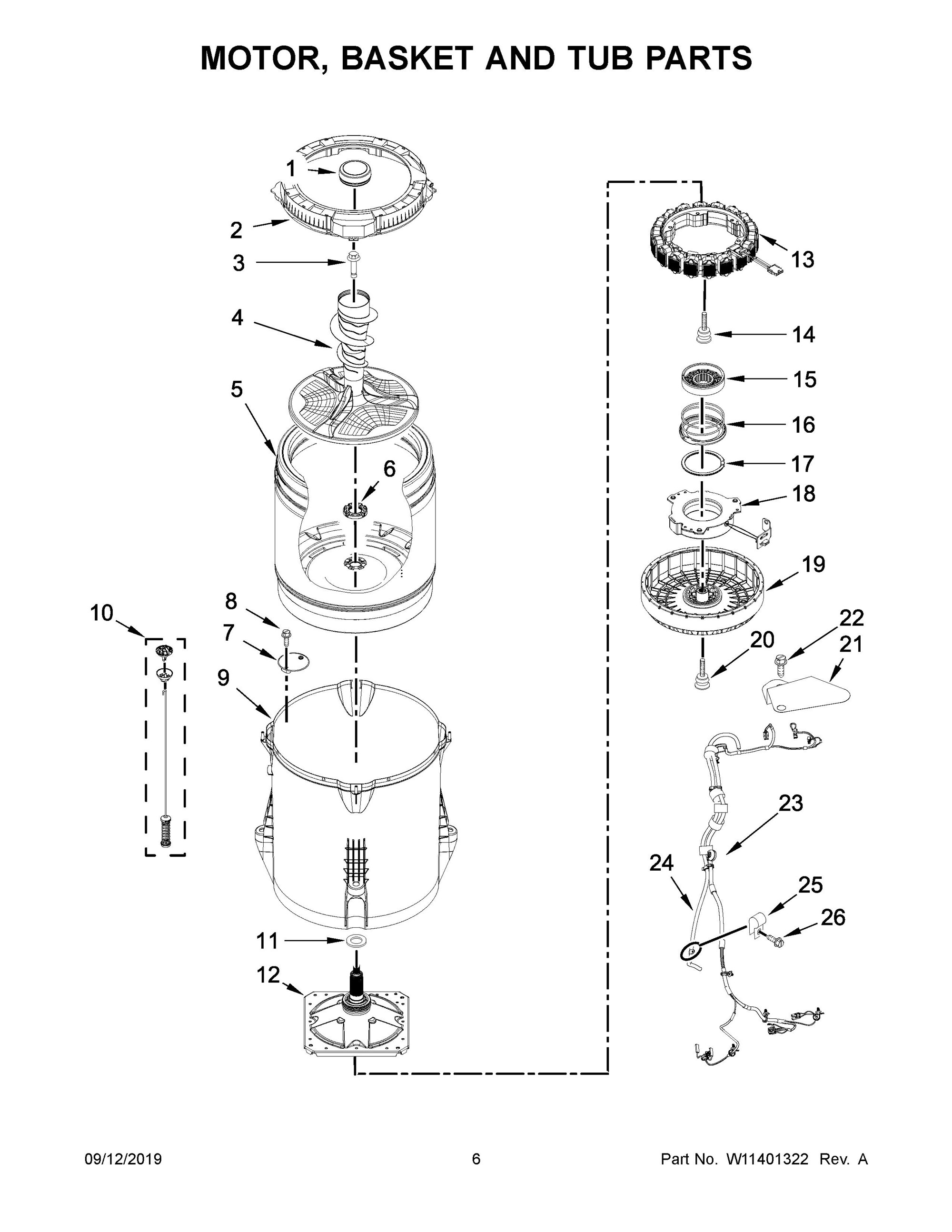

The image and part list below are associated with the component: 04 - MOTOR, BASKET AND TUB PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CAP, AGITATOR | W11111466 | W11449080 | 1 | 11 days | |
|
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS) | W11033601 | W11130356 | 10 | 3 days | |
|
WASHER, THRUST | W10665342 | W11032711 | 11 | 3 days | |
|
ASSEMBLY, DRIVE | W10868473 | W11393685 | 12 | 11 days | |
|
STATOR, MOTOR | W10006483 | W10915700 | 13 | 3 days | |
|
SCREW | W10644129 | W11027980 | 14 | 3 days | |
|
SLIDER | W10447975 | W10734521 | 15 | - |
|
|
|
ASSEMBLY, SPRING | W10006494 | W10734521 | 16 | - |
|
|
|
RING, SNAP | W10275082 | W10734521 | 17 | - |
|
|
ASSEMBLY, CLUTCH | W10905022 | W10754448 | 18 | - |
|
|
ROTOR, MOTOR | W10006482 | W10915701 | 19 | 3 days | |
|
TUB RING | W10578863 | W11161993 | 2 | 3 days | |
|
SCREW | W10636382 | W10752189 | 20 | 3 days | |
|
HARNESS SHIELD - MOTOR | W10673062 | 21 | 3 days | ||
|
SCREW | 90767 | WP90767 | 22 | 3 days | |
|
HARNESS, LOWER | W10777955 | W11409746 | 23 | - |
|
|
HOSE PRESSURE SWITCH | W10748451 | WP353244 | 24 | 3 days | |
|
CLAMP, CABLE | W10005430 | 25 | 3 days | ||
|
SCREW | 8533943 | WPW10109200 | 26 | 3 days | |
|
SCREW | W10625252 | W10752187 | 3 | 3 days | |
|
AGITATOR (COMPLETE) | W10821990 | W11550891 | 4 | 11 days | |
|
BASKET ASSEMBLY | W10586079 | W10811960 | 5 | - |
|
|
NUT, SPIN TUBE | W10564013 | W10909670 | 6 | 3 days | |
|
FILTER, DRAIN PUMP | W11089264 | W11568797 | 7 | 11 days | |
|
Screw | 8533928 | 8 | 11 days | ||
|
TUB | W10512161 | W11219115 | 9 | - |
|
