Model# MVW5430MW1

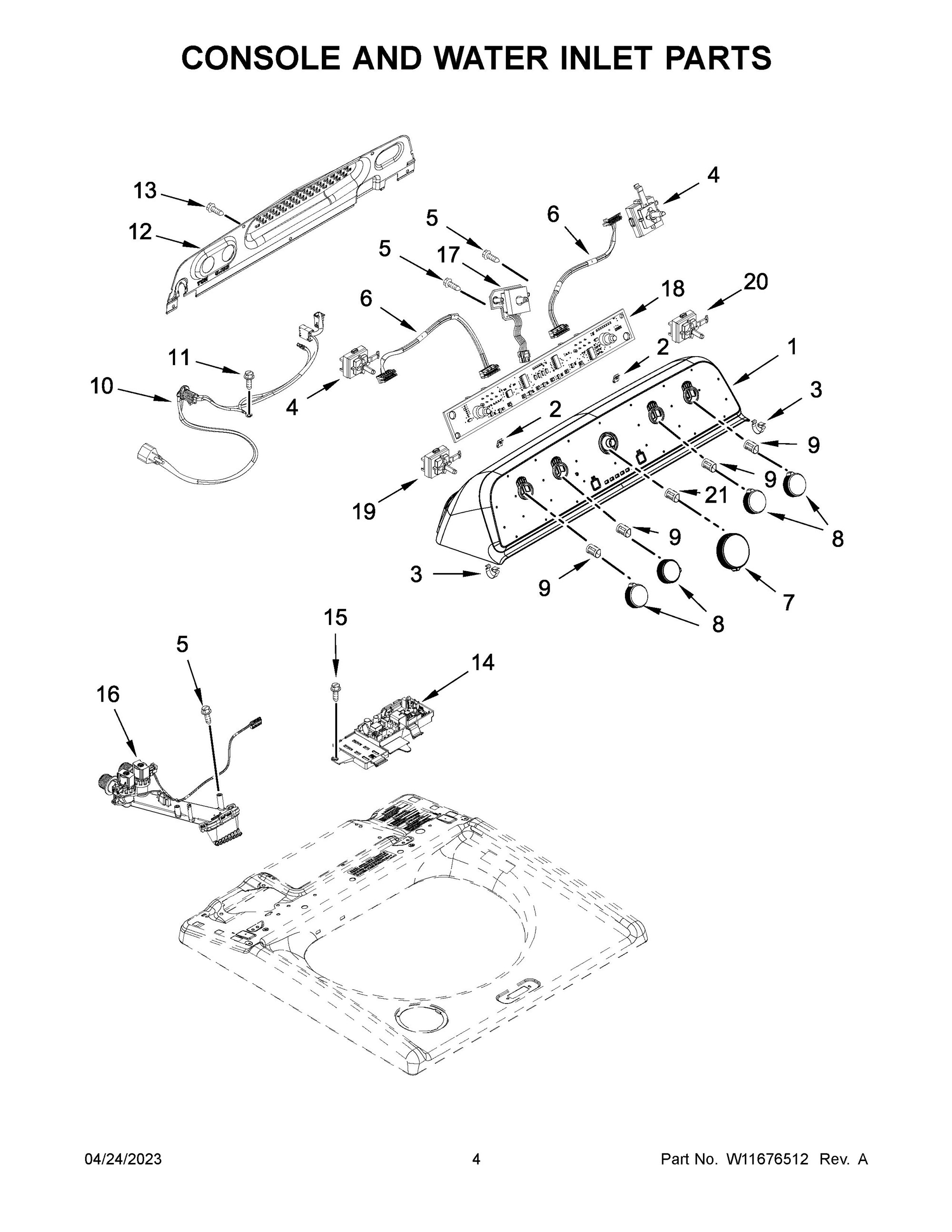

The image and part list below are associated with the component: 03 - CONSOLE AND WATER INLET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CONSOLE ASSEMBLY", | W11576953 | W11743907 | 1 | 11 days | |
|
POWER CORD ASSEMBLY", | W11335102 | W11513259 | 10 | 11 days | |
|
SCREW", | 3400076 | W10846509 | 11 | 1 days | |
|
PANEL, CONSOLE REAR COVER", | W10611544 | 12 | 1 days | ||
|
SCREW", | W10660565 | W11685943 | 13 | 11 days | |
|
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR", | W11491430 | W11627413 | 14 | 11 days | |
|
Screw", | 693995 | WP693995 | 15 | 1 days | |
|
WATER INLET ASSEMBLY (COMPLETE)", | W11385821 | W11513255 | 16 | - |
|
|
ENCODER, PCA", | W11609449 | W11675700 | 17 | 11 days | |
|
HMI", | W11612331 | W11675701 | 18 | 11 days | |
|
SWITCH, ROTARY ENCODER (2 POSITION)", | W10414381 | W11168256 | 19 | 1 days | |
|
NUT, "U"", | W10298336 | W11213336 | 2 | 11 days | |
|
SWITCH, ROTARY ENCODER (4 POSITION)", | W10414398 | WPW10414398 | 20 | 1 days | |
|
Clip, Spring", | 8536939 | WP8536939 | 21 | 1 days | |
|
CLIP, CONSOLE", | 8312709 | WP8312709 | 3 | 1 days | |
|
SWITCH, ROTARY ENCODER (5 POSITION)", | W10414411 | W10859568 | 4 | 1 days | |
|
Screw", | 9740848 | WP9740848 | 5 | 1 days | |
|
HARNESS, UPPER", | W11437973 | 6 | 11 days | ||
|
KNOB, LARGE", | W11328381 | W11675852 | 7 | 11 days | |
|
KNOB, SMALL", | W11398762 | W11625514 | 8 | 11 days | |
|
CLIP, SPRING", | 688805 | 9 | 11 days |
